C H A P T E R 3
S
ETUP
This chapter explains the requirements for setting up the UPS:
: UPS, battery cabinet, and bypass switch dimensions
: Equipment clearances
: Location requirements
: Moving the UPS and batteries
: Storage and operating environment
Dimensions
Table 1. FERRUPS FE/QFE 500 VA–3.1 kVA Dimensions
UPS Model
500 VA, 700 VA, and 850 VA
1.15 kVA and 1.4 kVA
1.8 kVA, 2.1 kVA, and 3.1 kVA
Powerware
FERRUPS FE/QFE UPS (500 VA–18 kVA) Installation Guide
®
Height (A)
122 (30.5 cm)
15.12 (38.5 cm)
21.22 (54.0 cm)
A
C
B

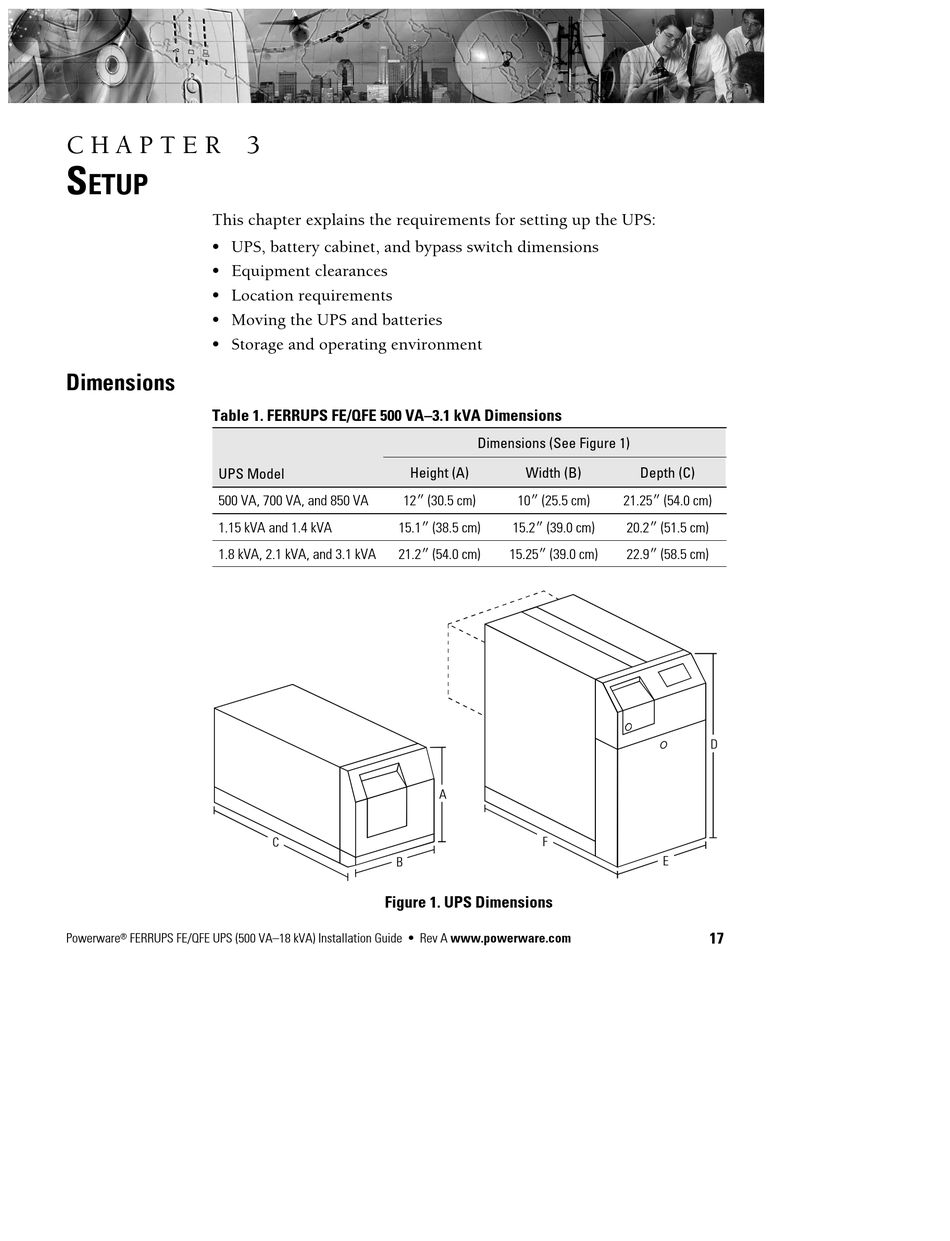

Figure 1. UPS Dimensions
:
Rev A www.powerware.com
Dimensions (See Figure 1)
Width (B)
Depth (C)
102 (25.5 cm)
21.252 (54.0 cm)
15.22 (39.0 cm)
20.22 (51.5 cm)
15.252 (39.0 cm)
22.92 (58.5 cm)
F
D
E
17
