Rhs Cover & Keypad - Contex IQ 2400 Technical Service Manual

Service Guide IQ / IQ Quattro
RHS Cover & Keypad

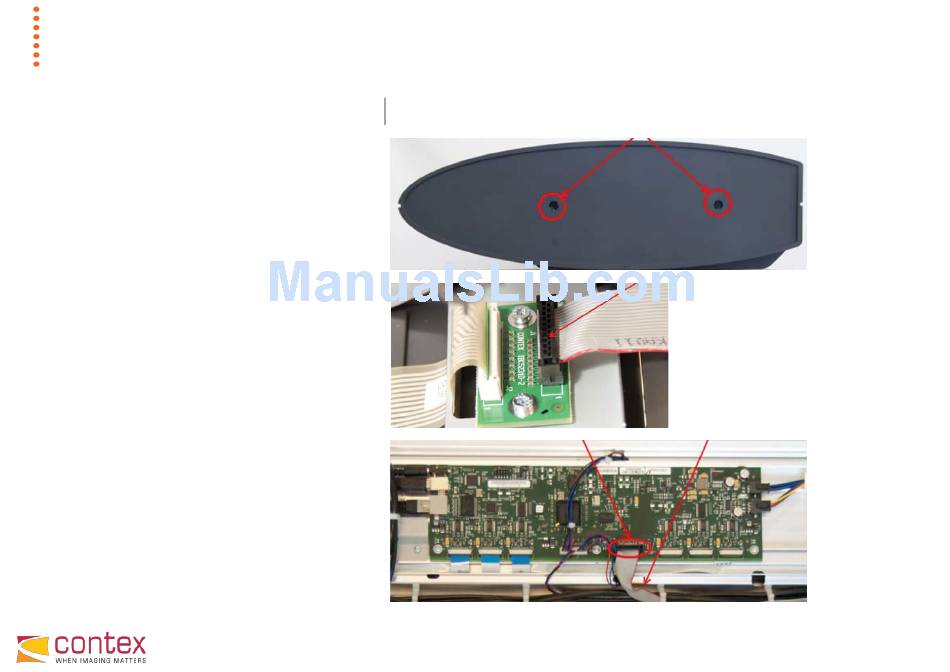

1. Remove screws (x2, Torx 20).
2. Gently remove cover
3. Disconnect ribbon cable for the keypad.
4. Unplug the ribbon cable for the keypad.
5. Pull the cable out though the side cover.
6. Replace the RHS cover, keypad and ribbon cable and reverse the steps.
Turn off the scanner and disconnect the power cord, open the CIS Unit, see page 61. Lift out the
Prerequisites
Power supply, see page 58.
73
