2 Description of Tool Bar Buttons:
2.1 Connection:
This button is establishes a connection with the hardware as discussed above.
2.2 Snapshot:
This button takes a snapshot of the application window. The snapshot can be saved either as a jpeg
or a bmp at any location.
2.3 Selection Tool:
This button is used to select an area on the Display to measure spectral power within the selected
area or to zoom into the selected area.
This button is first clicked, then the mouse is dragged while keeping the Left Button down, over the
desired Spectral Region and that area is highlighted. Spectral Power within this selected region is
calculated and displayed as shown:
2.4 Zoom In:
This button zooms into a selected area.
2.5 Zoom Out:
This button zooms out from a previously zoomed in region.

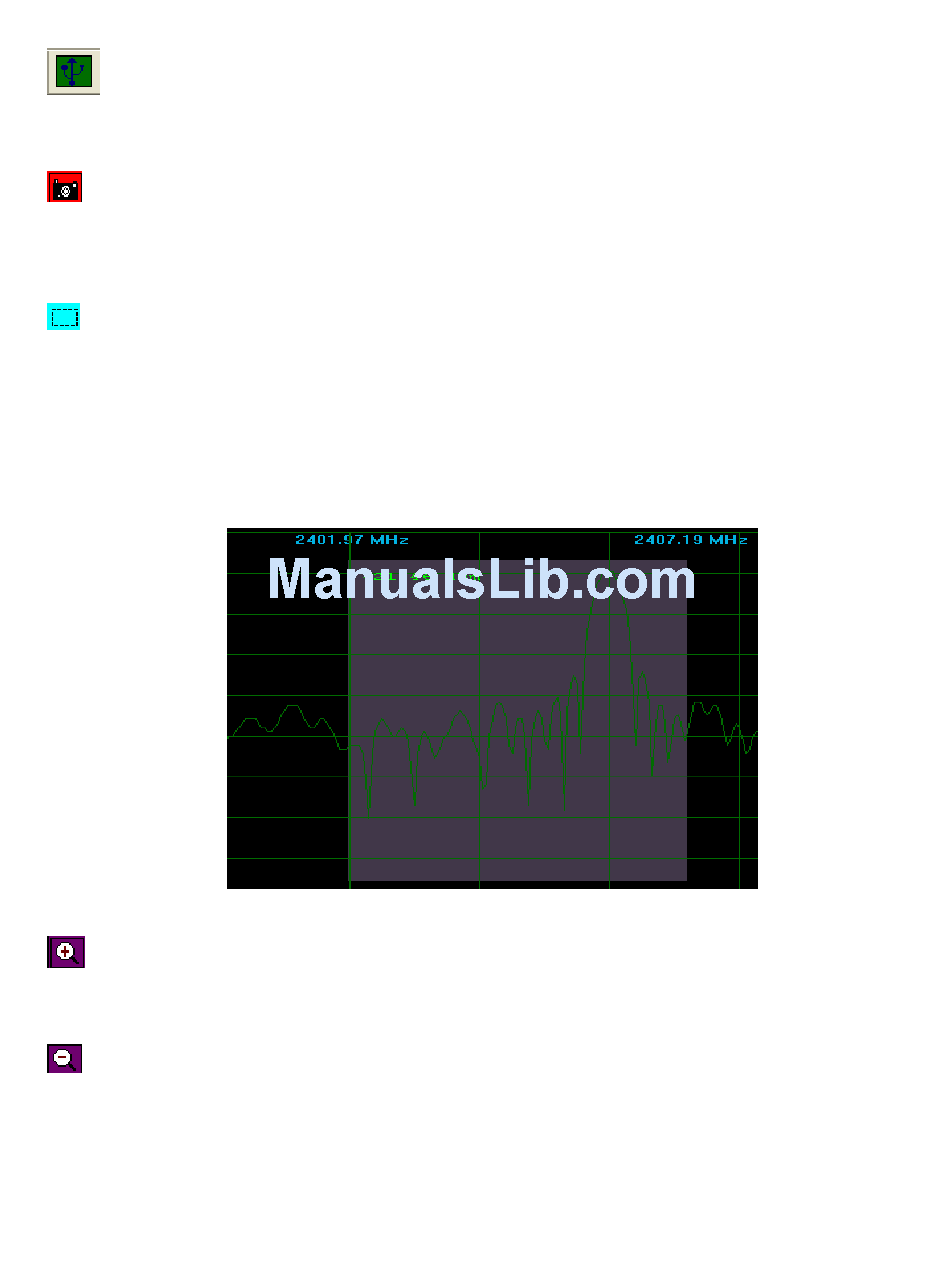

Fig 2: Spectrum Selection
