5.1 Recording/Creating a Spectrum Log File for Future Playback:

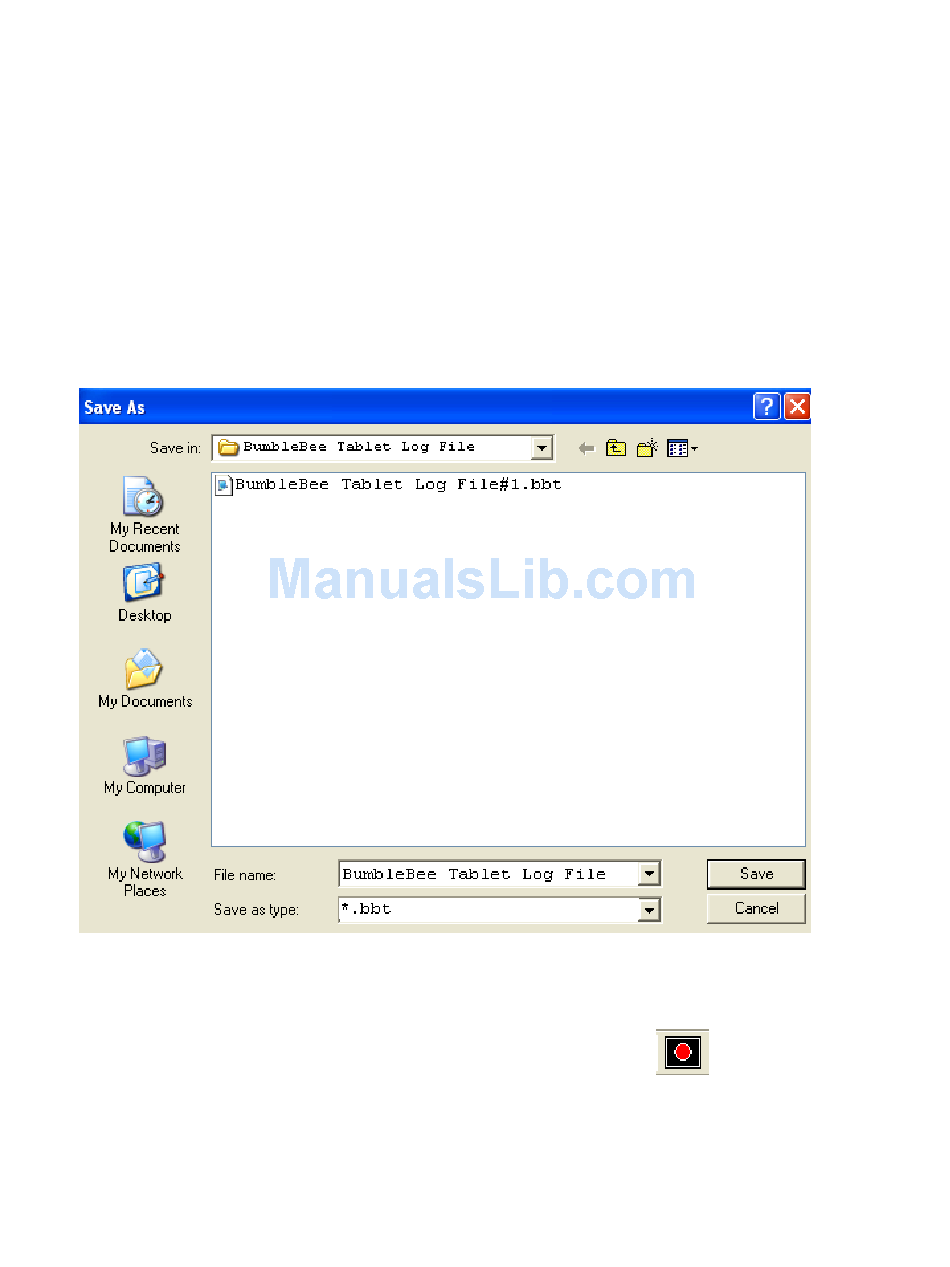

Fig 22: Creating and Saving a Spectrum Log File.
Once in the Spectrum Mode or the Trigger Spectrum Mode, the Spectrum being observed on the display
can be logged in a Log File for future analysis. This is done by clicking the (Record) button on the
toolbar. Save the Log File at a desired location.
NOTE: The log file will be created and stored with a .spl extension.
Once logging begins, the Current Log File size (in Bytes) and the Current duration (in Minutes) of the file
logged on the Display portion of the Spectrum are shown:
