4. Channel Power Measurements using the BumbleBee Tablet software
Measurement of channel power is an important application of the BumbleBee Tablet software and this can
be done in three different ways.
4.1 Using Frequency Markers and Delta Markers:
By setting the Markers and Delta Markers as described in 4.4 on page 11, power will be calculated
in the Spectrum between the marker and the delta marker.
4.2 Selecting a portion of the Spectrum Display:
By selecting a portion of the Display using the Selection tool as described on page 10,
The spectral power within the selected region is calculated and displayed within the selection in the color
corresponding to the trace whose power it represents. The measurement is only made on the live trace

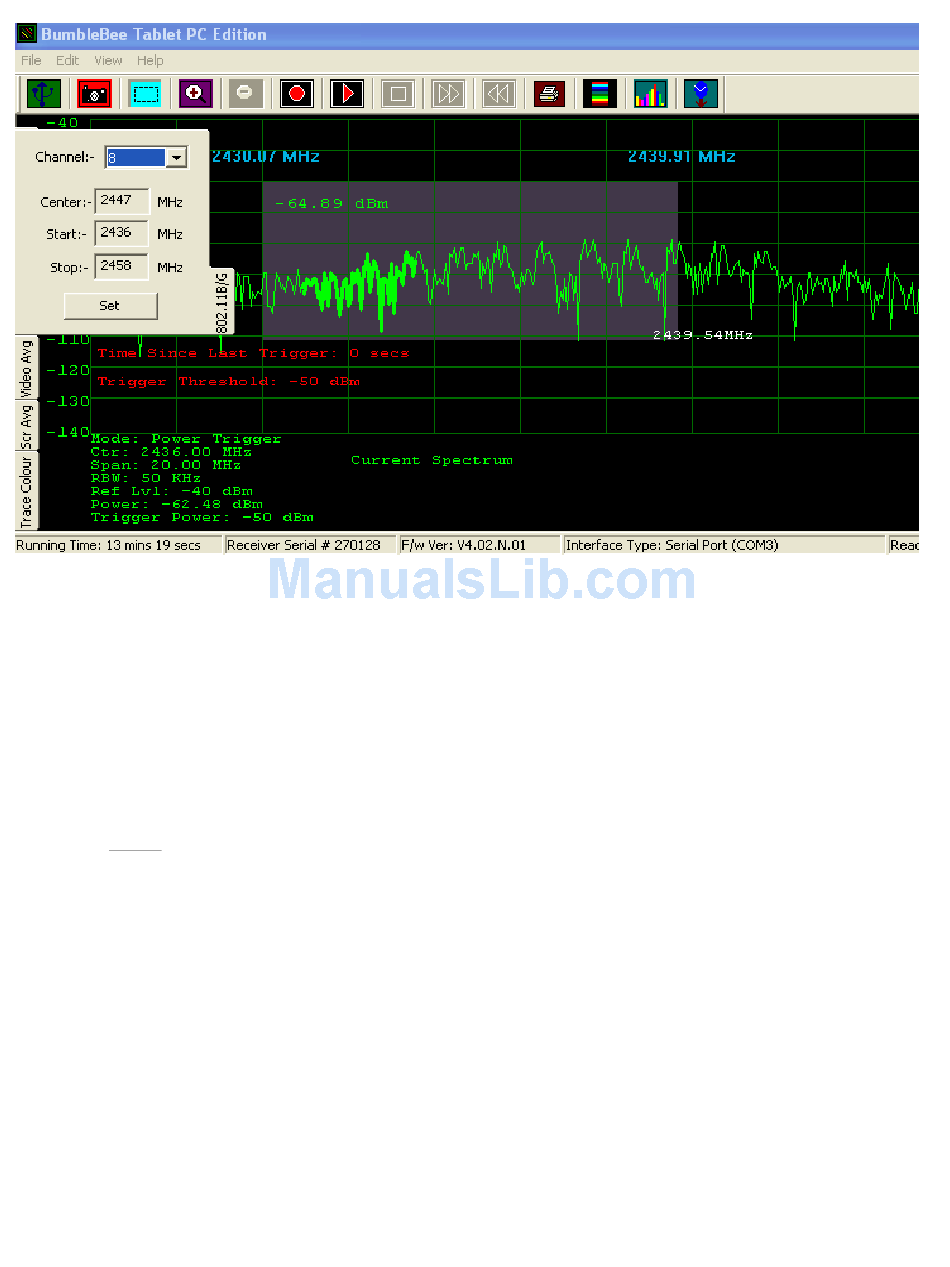

Fig 19: 802.11 B/G Channel Presets
