3. Tab Options:
The Tabs on the Left and Right hand edge of the application window form the Control and Data Panel for
the BumbleBee Tablet PC Software. Tapping on a Tab with the Stylus will make it pop out on the screen.
Tapping outside the Tab will cause the popped up Tab to slide back and hide.
3.1 Frequency Control Panel:

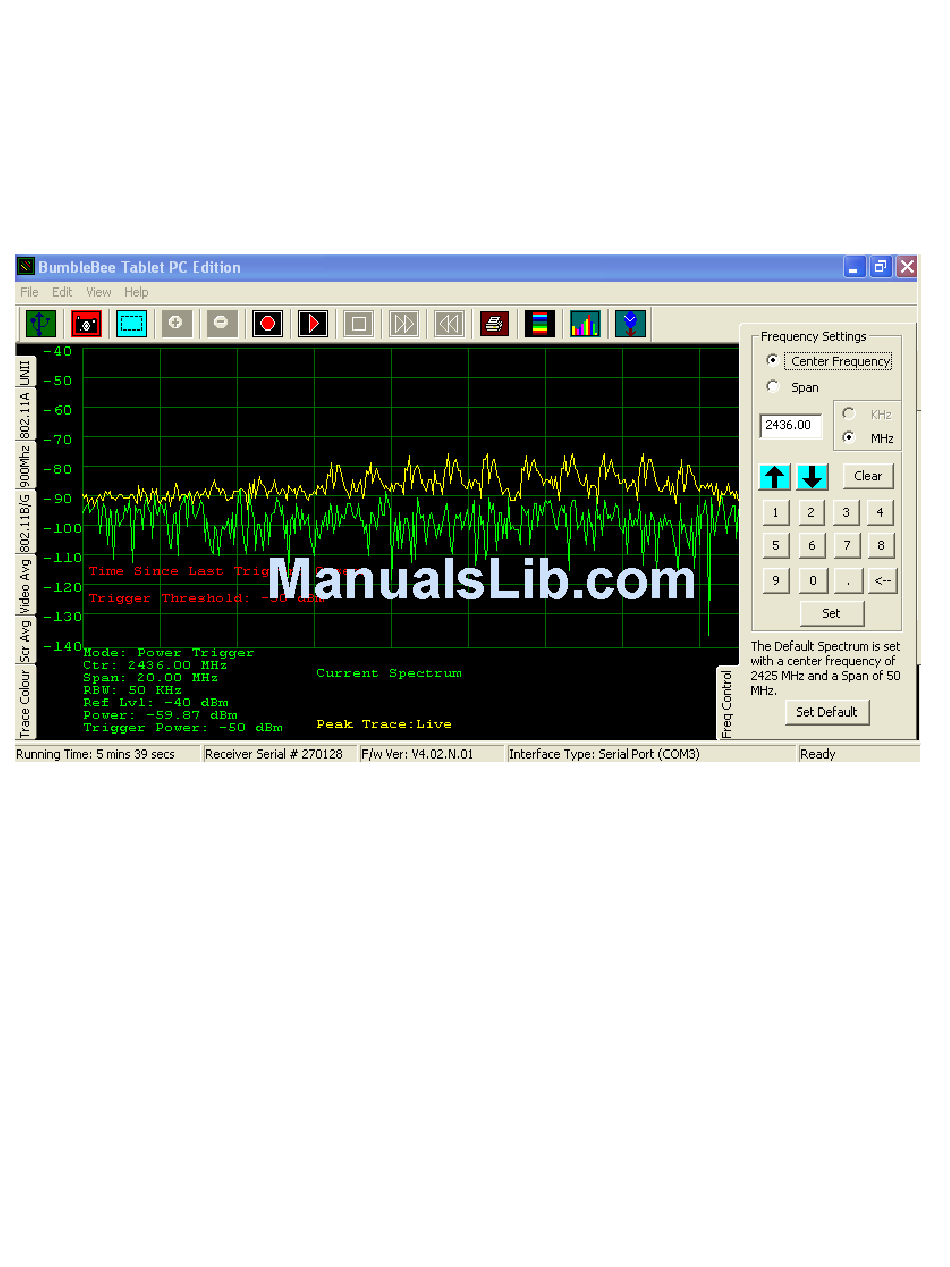

Fig 10: Frequency Control Panel
The Frequency Control Panel allows the user to set the Center Frequency and the Span of the Spectrum
Analyzer.
To set the Center Frequency
1. Click the Radio Button for the Center Frequency.
2. Click "Clear" to delete the value shown.
3. Enter the Center Frequency value in the Text Box.
4. Select the units (KHz/MHz).
3. Click "Set".
To set the Span, repeat the steps 2 through 5 after clicking selecting Span.
