1. Establishing a Connection with the receiver:
Double click the BumbleBee Tablet icon on the desktop to start the software.
Ensure that the USB cable is properly connected to both, the Tablet PC and the BumbleBee Receiver.
Once this is done, click on the toolbar to connect to the BumbleBee Receiver. The connection box
pops up with the USB device listed in the list box.

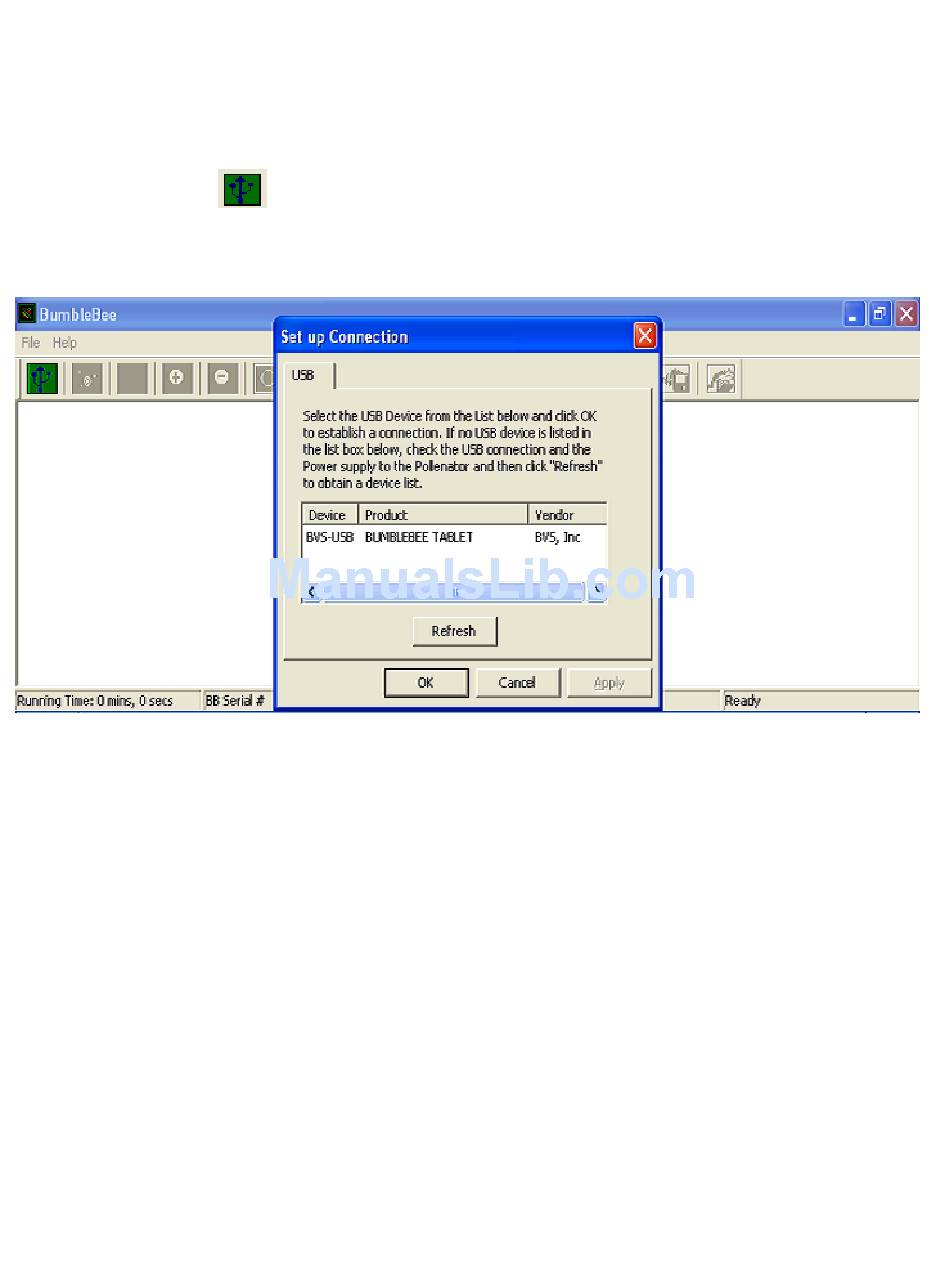

Fig 1: USB Connection
Select the listing which indicates that the product is a BUMBLEBEE TABLET and click OK.
On clicking OK, the software will establish a connection with the BumbleBee Receiver. Once connection
is successful, the receiver will be set in the default spectrum mode which is centered at 2425 MHz and
spans 50 MHz with a Resolution Bandwidth of 50 KHz and a Receiver reference level of –20 dBm.
.
