Alcott Fire Table
Installation Instructions for ALC-1224

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Alcott ALC-1224 and is the answer not in the manual?

Questions and answers

Related Manuals for Outdoor GreatRoom Company Alcott ALC-1224

Summary of Contents for Outdoor GreatRoom Company Alcott ALC-1224

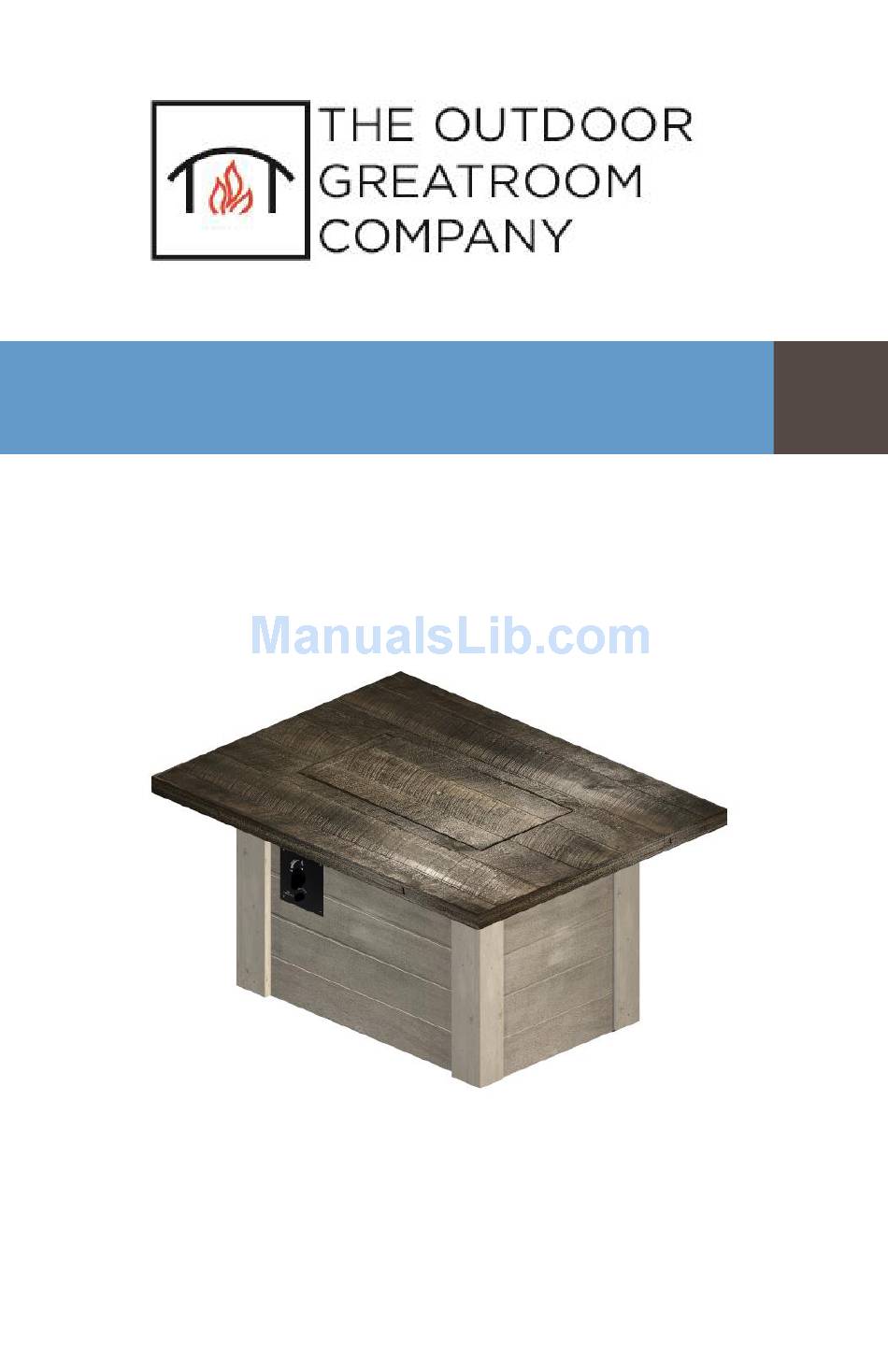

  • Page 1 Alcott Fire Table Installation Instructions for ALC-1224...

  • Page 2: Table Of Contents

    IMPORTANT Please consult your Crystal Fire instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE OWNER’S MANUAL.

  • Page 3: Included With Your Fire Pit

    Included With Your Fire Pit Alcott 1224 base (Control Panel Installed) ALC-1224-BASE Antique Timber Supercast Top and Burner Cover 3648-1224-AT & 3648-1224- AT-C 1224 Crystal Fire Burner with Brown Trim CF-1224-BRN Refer to Crystal Fire Manual for items included with crystal fire burners.

  • Page 4: Un-Packaging

    Assembly Instructions 1. Un-packaging Do not discard any packaging until assembly is  complete and unit is tested.  Keep all included manuals in a safe place for future reference. 2. Base Placement  Place base in desired final location. Place on a hard, flat surface.

  • Page 5: Cf-Sparker Installation

    3. CF-SPARKER Installation Locate CF-SPARKER inside of crystal fire  burner box.  Remove CF-SPARKER cap and hex nut. Insert AAA battery (not included) with + end out. Install CF-SPARKER into control panel as  shown below.  Depress CF-SPARKER button to test your sparker.

  • Page 6: Gas Connections

    5. Gas Connections  Ensure valve is in the OFF position before making any gas connections. For propane tank installations, install included  propane hose and regulator to the control panel as shown below. Use two wrenches to ensure a gas tight connection. ...
  • Page 7  Ensure the correct orifice is installed for the fuel type you are using (see Crystal Fire Burner Owner’s Manual included with burner for orifice sizing information).  Ensure flex line is securely tightened to the orifice. Use two wrenches as shown. One wrench on the flex line and one on the orifice for counter torque Flex line hex...

  • Page 8: Electrode Installation

     Carefully place burner into burner opening, oriented as shown. Electrode Access door 6. Electrode Installation  Plug both BLACK wires hanging from the burner into the back of the CF-SPARKER. If an orange wire is present, do not use it. The orange wire is for Direct Spark Ignition system only.

  • Page 9: Propane Tank Installation

    7. Propane Tank Installation  With the propane tank valve and fire pit valve off, attach the propane regulator to the propane tank. Hand tighten, do not use a wrench for this connection.  Insert propane tank into base by sliding it past the red dotted line shown above.

  • Page 10: Operating Instructions

    Operating Instructions Before operating your Alcott 1224 fire pit, ensure all gas connections are properly tightened and thoroughly leak checked. Refer to the Crystal Fire Manual for information on proper leak checking and other critical safety information.  With the valve on the fire pit in the OFF position, open the valve on the propane tank or natural gas supply.
  • Page 11 IMPORTANT Please consult your Crystal Fire instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE OWNER’S MANUAL.
  • Page 12 Thank you for purchasing an Outdoor GreatRoom Company product! This fire pit was made with pride in the USA. Warranty: Fire pit tables are covered under a 1- year manufacturer’s warranty. Please visit http://www.outdoorrooms.com/warranty-form to register your product. 14400 Southcross Drive West • Suite 100 • Burnsville, MN 55306 Toll Free: 1-866-303-4028 •...
