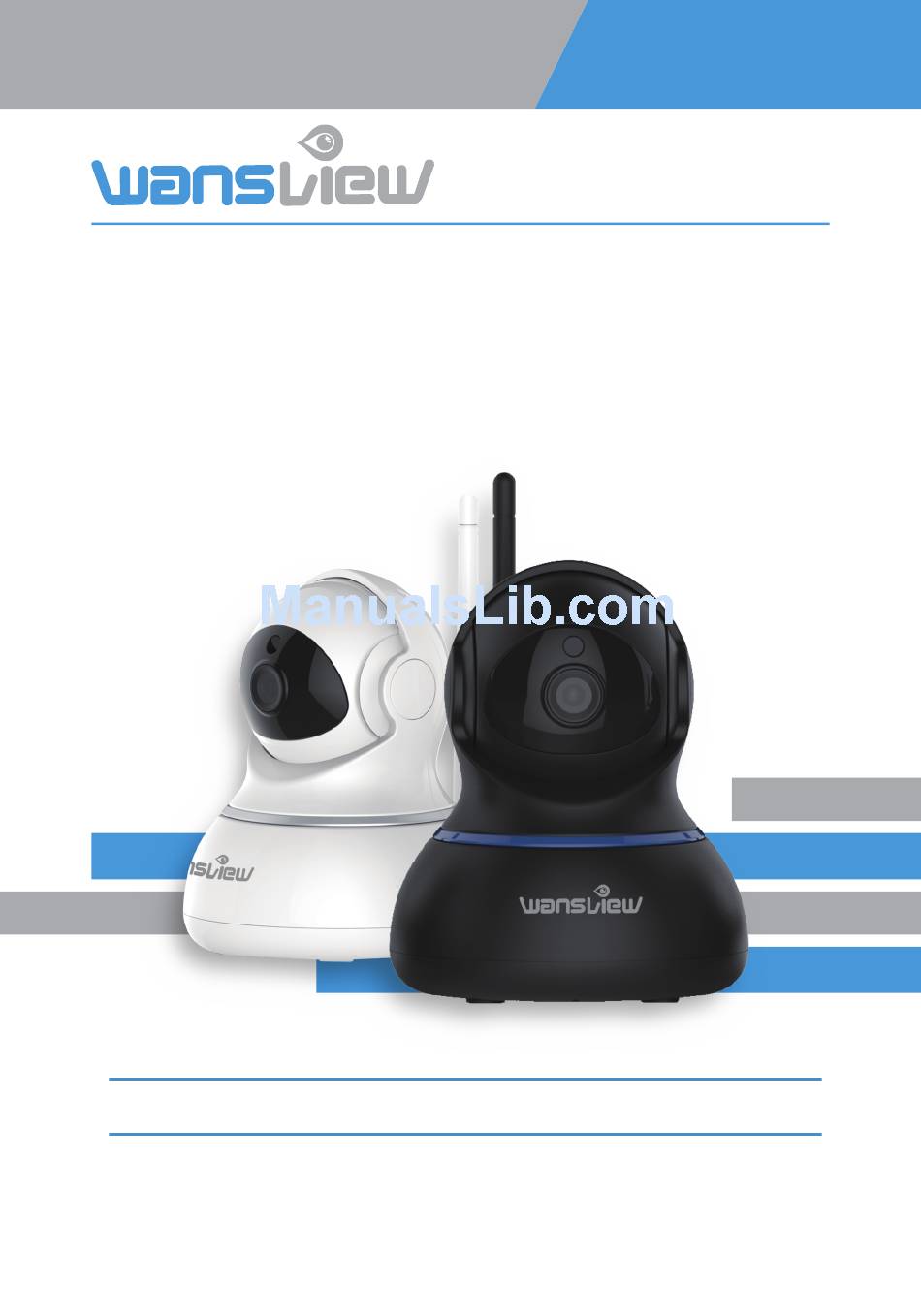

Page 1: User Manual
Wansview HD IP Camera Q3(720P)/Q3S(1080P) User Manual We keep improving the app, if the app interface is not accordance with the instructions, please go to wansview website: http://www.wansview.com for the latest instructions. Revised on 1st January 2018 www.wansview.com... -
Page 3: Table Of Contents
1.3 Uses··························································································································· 8 1.4 Specifications ············································································································ 8 1.5 System Requirements································································································ 9 2. Camera Management with Smartphones/Tablets························································· 10 2.1 Wansview App for iOS and Android ········································································· 10 2.2 Live Streaming·········································································································· 13 2.3 Local Picture and Record·························································································· 15 2.4 SD/TF Record and Playback······················································································ 16 2.5 Alarm Setting············································································································... - Page 4 HD IP Camera Q3(720P)/Q3S(1080P) 3.3 Camera Settings ········································································································ 32 3.3.1 Edit Device········································································································ 32 3.3.2 Advanced Settings ···························································································· 33 3.3.2.1 Device Info···························································································· 33 3.3.2.2 Time Setting·························································································· 33 3.3.2.3 User Setting ·························································································· 34 3.3.2.4 WiFi Setting ·························································································· 35 3.3.2.5 SD/TF Setting ························································································ 35 3.3.2.6 Other Setting ························································································...
-
Page 5: Welcome
Or scanning the QR code to enter our Youtube channel. Important Security Warning In order to keep your Wansview camera secure and prevent unauthorized access, please make sure to follow the steps below: 1. The camera has always the latest firmware installed. If we update the firmware, we upload it on www.wansview.com/Service/download/... - Page 6 HD IP Camera Q3(720P)/Q3S(1080P) 5. Environment The camera should be kept in a cool, dry place away from direct sunlight, flammable materials, explosive substances, etc. This product should be transported, stored, and used only in the specified environments as stated above.
-
Page 7: Features And Specifications
IR light The Wansview Full HD IP Camera comes with 4 PCS IR LED, a CMOS Sensor, Wi-Fi Antenna, and built-in Speaker and Microphone. It supports up to 128 GB SD cards for recording. The camera also has a Pan and Tilt function, with 350°... -
Page 8: Features
HD IP Camera Q3(720P)/Q3S(1080P) 1.2 Features •Full HD Video •Support Wi-Fi connection •Live Streaming •Multi-App/Software Compatibility •Pan and Tilt, 4x digital zoom •Support Micro SD card storage up to 128GB •Night Vision distance up to 25 feet •Mountable on walls and ceilings •2 Way Audio with built-in microphone... -
Page 9: System Requirements
IR Leds and open the outdoor lights. The Wansview Camera is a P2P camera as long as the camera is connected to the internet. Users can view the camera from smartphones/tablets or PC, wherever they are using cellular data or Wi-Fi connections. -
Page 10: Camera Management With Smartphones/Tablets
HD IP Camera Q3(720P)/Q3S(1080P) 2. Camera Management with Smartphones/Tablets 2.1 Wansview App for iOS and Android Cable Setup... -
Page 11: Connect To Network
HD IP Camera Q3(720P)/Q3S(1080P) Download Wansview App Go to App store or Google Play and install the “Wansview” app to your supported device. Power on Camera Power for the camera with the included power supply and place it near your router. - Page 12 HD IP Camera Q3(720P)/Q3S(1080P) 3: “Add Already Connected Network camera” This is suitable for camera that is already connected with internet. Such as add the camera to a second phone, or share the camera to other person. User can use the below ways to add the camera: 1: If camera is on your hand , you can tap to scan the Camera’s QR code to get the...
-
Page 13: Live Streaming
HD IP Camera Q3(720P)/Q3S(1080P) 2.2 Live Streaming Each camera can be accessed by up to 4 users at the same time. The administrator can setup 3 different levels of access: administator, operator and viewer.Please refer to Page 22. Viewing Camera on a Single Window to enter the live feed and do more operations. - Page 14 HD IP Camera Q3(720P)/Q3S(1080P) Preset: The Preset function allows user to set up to 8 spots on the video and recall them quickly, first select Set and choose the spot, then press 1, when you call, select “Call” and press Spot number.
-
Page 15: Local Picture And Record
HD IP Camera Q3(720P)/Q3S(1080P) 2.3 Local Picture and Record record snap During live streaming, user can take snapshots by tapping on Snapshot to phone and Record to phone. To stop recording, tap again or exit from the live streaming. In Local Picture and Record, User can find all the pictures and videos taken manually. -
Page 16: Sd/Tf Record And Playback
2.4 SD/TF Record and Playback SD Card recording If a SD Card is installed in the camera, When the camera shows “Online” on wansview app, tap “>” to enter Edit Camera page, from Advanced Settings>SD/TF Card schedule recording, users can choose to record or not on the SD card by switching the SD/TF Recording button. - Page 17 HD IP Camera Q3(720P)/Q3S(1080P) Playback recorded video Access to SD/TF Record Playback. Choose a day in the calendar, then select Schedule or Alarm click Done to see the list of recorded video on the SD card.
-
Page 18: Alarm Setting
HD IP Camera Q3(720P)/Q3S(1080P) 2.5 Alarm Setting The camera is mostly for live video, what we achieve is to make the video more clear and easy set up. it is not a professional security camera, the motion detection is only an add-on feature. - Page 19 HD IP Camera Q3(720P)/Q3S(1080P) For Email Setting, please follow the below parameters: Sender: your email address Smtp Server: such as smtp.mail.yahoo.com etc. Smtp port: SSL: your email address, the same with User name: sender Password: your email password, if you are using Yahoo and Gmail, please generate an app password, and using the app password.
-
Page 20: Advanced Settings
Tap WiFi Setting, and search the available WiFi, choose the WiFi and manually input the WiFi Password, then tap to save the WiFi information. User can unplug the ethernet cable when the app appears “WiFi Set Succeed”. Note: Wansview camera only supports 2.4Ghz WiFi, and wifi password should be no longer than 31 characters. -
Page 21: User Setting/Management
HD IP Camera Q3(720P)/Q3S(1080P) 2.6.2 User Setting/Management Under the User Settting/Management, user can change the default username(admin) and password (123456), or create another user account with certain access rights, such as an Operator or Viewer account for other person to view the camera. -
Page 22: Time Setting
HD IP Camera Q3(720P)/Q3S(1080P) Add another user account On User Setting, tap to add user, manually add the username and password, then choose the Role(Operator or Viewer). Administrator: Full access rights Operator: Can operate on the camera live video screen, but not access to other settings like Alarm setting, Advanced Settings etc. -
Page 23: Sd/Tf Setting
On Misc Setting, user can set up OSD (On Screen Display), Microphone/ Speaker Volume and AC Frequency. OSD Setting Click “OSD Setting” to set: Overlay time: Camera time in live streaming, recording and pictures Temp and humidity is not available for Q3/Q3S overlay name overlay time... - Page 24 HD IP Camera Q3(720P)/Q3S(1080P) Volume Setting If volume of the “Talk” and “Listen” is too low, user can adjust it from Volume Setting AC Frequency User can adjust the power frequency, power frequencies include:50HZ(220V voltage selects 50HZ), 60HZ(110V Voltage selects 60HZ).
-
Page 25: Maintenance
HD IP Camera Q3(720P)/Q3S(1080P) 2.6.6 Maintenance Reboot camera if camera is always loading or if the camera/app is frozen. No need to set up again. If camera restores to factory default, the set up procedure needs to be repeated again after reboots. -
Page 26: Start Video
HD IP Camera Q3(720P)/Q3S(1080P) 2.7 Start Video Tap “Start Video” to broadcast the camera live streaming. 2.8 Delete device Tap “Delete device”, user can delete the camera from the app. -
Page 27: Message
HD IP Camera Q3(720P)/Q3S(1080P) 2.9 Message On the Message, user can check the alarm message. 2.10 More Record and pictures are the local files recorded from the wansview app. Multi-View: Please refer to P 14 Push Set：Currently not available About：Can check the wansview app... - Page 28 HD IP Camera Q3(720P)/Q3S(1080P) WiFi Configuration This is another method to connect WiFi. Make sure your mobile phone is connected with 2.4G WiFi, and follow the below steps to set up WiFi: 1:Tap configuration, the wifi name is located, enter your More-WiFi wifi...
-
Page 29: Pc Client Software
HD IP Camera Q3(720P)/Q3S(1080P) 3. PC Client Software 3.1 Add Camera 3.1.1 Add camera in Lan 1) Tap to add camera 2) Search the camera in Lan, DID number will be searched if use DID(P2P) to search, while Search IP will get IP Address 3) Click the searched camera, and the camera information will be filled automatically. -
Page 30: Manually Add Camera (Suitable For Outside Network)
2) Manually input the camera information. Tips: DID number can be checked from stickers on the back of the camera. You can check the DID from Wansview app If you have already added the camera on the mobile phone “wansview” app. -
Page 31: Stop Video
HD IP Camera Q3(720P)/Q3S(1080P) When play the video, but only shows black, please go to Setting --Other Setting to choose the No GPU Display in the Video Display mode. 3.2.2 Stop Video Click to stop the video or right-click the camera and choose “Stop”... -
Page 32: Video Interface
HD IP Camera Q3(720P)/Q3S(1080P) 3.2.3 Video Interface Attention: Resolution cannot be adjusted during recording, user needs to stop the recording, then switch the resolution. left right down Play/stop Resolution Snap Flip Record Mirror Listen Talk 3.3 Camera Settings 3.3.1 Edit Device Right-click the camera info and select”Edit Device”, here can change the Device Name and... -
Page 33: Advanced Settings
HD IP Camera Q3(720P)/Q3S(1080P) 3.3.2 Advanced Settings On the Advanced Settings, user can check camera firmware version, set up time, create other account for operater or Visitor, set up WiFi and SD card recording etc. 3.3.2.1 Device Info User can check the camera status and Mac address, and check the camera’s firmware version. -
Page 34: User Setting
HD IP Camera Q3(720P)/Q3S(1080P) 3.3.2.3 User Setting User can create other accounts for family member or friends in User Setting. Add an account with user name and password, and give a right to this account. Tips: Administrator: All settings can be edited Operator: Can operate all the icons (such as listen, talk, flip/mirror) on the live video page. -
Page 35: Wifi Setting
HD IP Camera Q3(720P)/Q3S(1080P) 3.3.2.4 WiFi Setting User can set up WiFi for the camera is connected Ethernet cable, or change to other available WiFi. Search the available WiFi, and choose the one you want to connect, then input the WiFi password (click the icon behind to confirm if the password is correct). -
Page 36: Other Setting
HD IP Camera Q3(720P)/Q3S(1080P) User can record video to SD card. Before recording, please kindly make sure you have inserted a SD card, and format it. the record length can be set 2-15 minutes 3.3.2.6 Other Setting 1) OSD setting On the OSD setting, users can set up the Overlay name and Overlay time, so user can check name and time on the video screen. -
Page 37: Alarm Setting
HD IP Camera Q3(720P)/Q3S(1080P) 3) AC Frequency User can adjust the power frequency, Power frequencies include: 50HZ(220V voltage selects 50HZ), 60HZ(110V voltage selects 60HZ), 60HZ used in Japan, Canada etc. 4) Maintenance User can reboot and reset (restore) the camera. -
Page 38: Motion Detection
HD IP Camera Q3(720P)/Q3S(1080P) 3.3.3.1 Motion Detection User can set up motion detection area here to narrow the motion detected area to some important places, tick each window, move your mouse to the lower right corner and drag it can adjust the size of the window, and can move it to the needed area. -
Page 39: Linkage Alarm
HD IP Camera Q3(720P)/Q3S(1080P) 3.3.3.3 Linkage Alarm If user set up alarm, the camera will execute a variety of alarm actions at linkage: snap to email, snapshot and video to FTP, snap and video to SD card. And if you connect external I/O alarm device, it can trigger alarm too. - Page 40 HD IP Camera Q3(720P)/Q3S(1080P) Email Sender setting Email address: service2@wansview.com Email Password: SMTP Server: smtp.qiye.163.com SMTP Port: Security Type: NONE email, it should be the same Sender: service2@wansview.com with "Email address" Receiver Setting E-mail subject: alarm any information E-mail content:...
-
Page 41: Alarm Time
HD IP Camera Q3(720P)/Q3S(1080P) 3.3.3.4 Alarm Time After setting the type of alarm and alarm action, please set up the alarm time, the alarm action can only be triggered when armed. The Green color means the time is armed. User can choose “All Time”... -
Page 42: Multi-View
HD IP Camera Q3(720P)/Q3S(1080P) 3.4 Multi-View User can monitor multiple cameras at the same time, 4-screen, 9-screen, M(6, 8,16, 25, 36) and full screen can be set up according to different demands 3.5 Local Setting About software: Basic setting: User can set up lock screen password in case you won’t let others to see the video. -
Page 43: Scheduled Recording
HD IP Camera Q3(720P)/Q3S(1080P) 3.6 Scheduled Recording Before recording to your local computer, please make sure you set up the Record Path on the “Local Setting”. Then follow the below steps to set up the recording: 1: Click “Create” to create a Record name, it will give you a name automatically(combination of date and time), user can edit the name. -
Page 44: Playback
HD IP Camera Q3(720P)/Q3S(1080P) 3.7 Playback On “Playback” page, user can playback the recorded videos on the local disk and SD card. 3.7.1 Playback Local Record 1) Choose Local Record and selected the camera you want to check. 2) Select the Media Type(Video or Image) 3) Select the video in an exact date you want to playback 4) Recorded video list will be shown (Video starts with “P”... -
Page 45: Sd Card Record
HD IP Camera Q3(720P)/Q3S(1080P) 3.7.2 SD Card Record 1) Choose SD/TF record and selected the camera you want to check. 2) Select the Media Type(Plan or Alarm) 3) Select the video in an exact date you want to playback 4) Recorded video list will be shown, if it is not shown, please tap to show the list (Video starts with “nrc”... -
Page 46: Lock
HD IP Camera Q3(720P)/Q3S(1080P) 3.8 Lock Lock the screen if you don’t want to operate it or prevent others to operate the camera. The default lock password is 123456. 4. Manage Camera with other Apps and Software Add Camera to iSpy Connect Steps 1.Add IP Camera... - Page 47 -HTTP port: camera’s port -RSTP port: default 554 -User -Password -Make: Wansview -Model: K1/K2, NCM GA/GB/630W, Q3S RTSP -Path: ch0, or ch1 or ch2 Click OK Add the Camera to Sighthound Video Set-up with Ethernet Cable - Add Camera by wizard...
-
Page 48: Web Access
If your computer is in the same network, just type the address in browser address bar: http://ip:port, for example http://192.168.10.128:80. User can get these data from router or from wansview app > Advanced Setting> About Camera If your computer is located outside the network where the camera is installed, user needs to use camera’s wan IP address, and need to manually input the camera’s lan ip address in the Port... - Page 49 HD IP Camera Q3(720P)/Q3S(1080P) Most of the features on web can be achieved on Mobile phone app and PC software “Wansview”. Some useful CGI Commands: MJPEG Stream: http://user:password@ip:port/mjpeg/stream.cgi?chn=0 Snap Shot: http://user:password@ip:port/mjpeg/snap.cgi?chn=0 RTSP: rtsp://user: password @IP:rtsp port /live/ch0 The User manual is a printed version. Therefore it represents the App and PC software features.
- Page 51 www.wansview.com...
