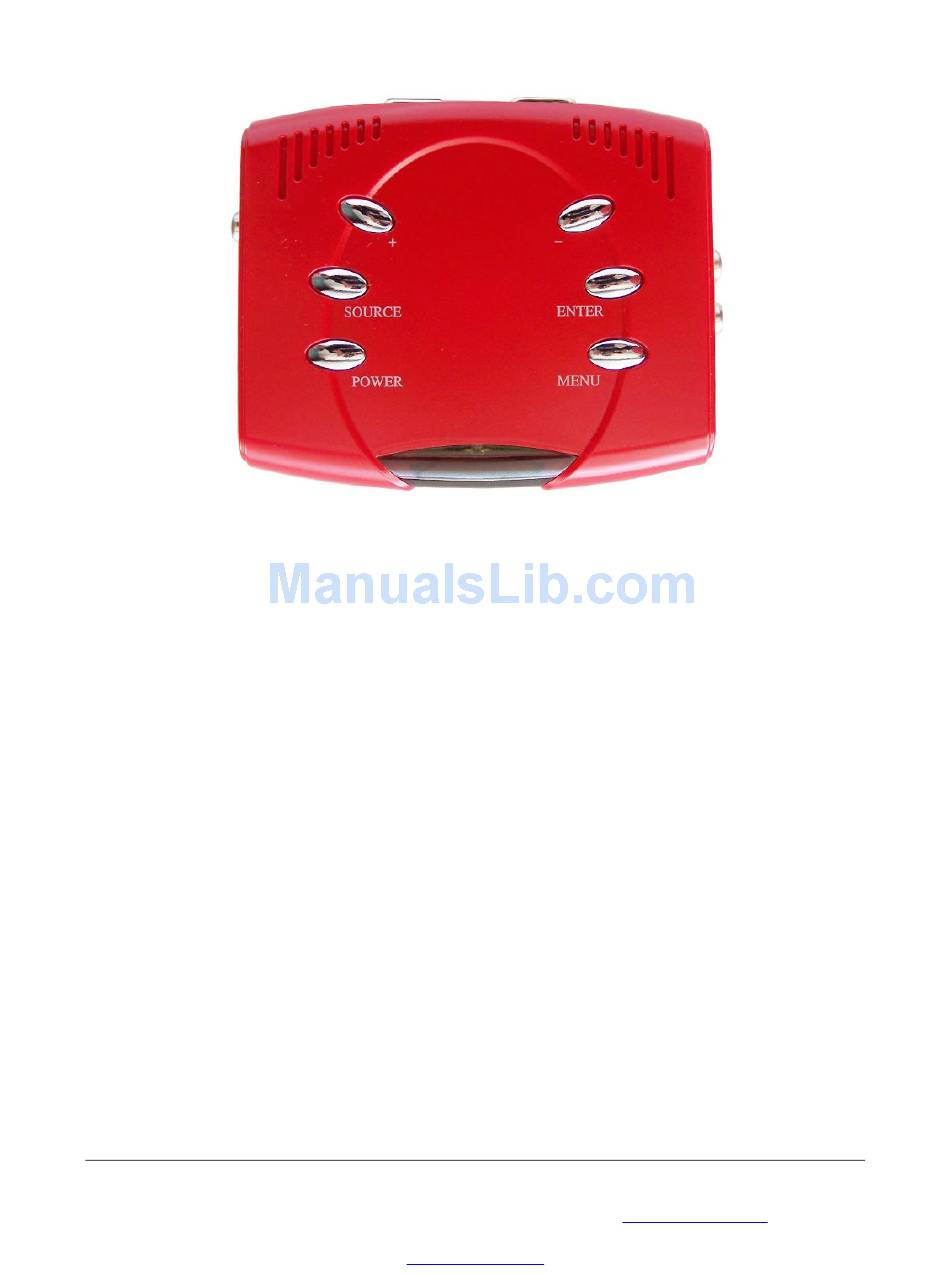

Top Panel
1. Power- This is the Power On/Off button.
2. Source- Select CVBS, S-Video or PC. Press the source button in order to switch from
CVBS to S-Video or PC.
3. + Control- This button allows you to increase the value of the selected function.
4. – Control- This button allows you to decrease the value of the selected function.
5. Enter- This button allows you to execute or enter a specific function.
6. Menu- This button allows the main menu to appear.
Menu Description
1. Brightness- This function allows you to adjust the level or picture brightness.
2. Contrast- This function allows you to adjust the level of picture contrast.
3. Colour- This function allows you to adjust the level of colour saturation.
4. Hue- This function allows you to adjust the hue level.
5. Sharpness- This function allows you to adjust the picture sharpness level.
6. Resolution- This button enables you to adjust the resolution level.
7. Frequency- This button enables you to adjust the frequency level.
8. Reset- This function allows you to reset all of the adjusted parameters back to their
default values.
9. Exit- This function allows you to exit the current operation and return to the main
menu.
