2 Basic Gauge Operations

Power on the Gauge

To power on any of the TKG series thickness gauges
follow these steps:

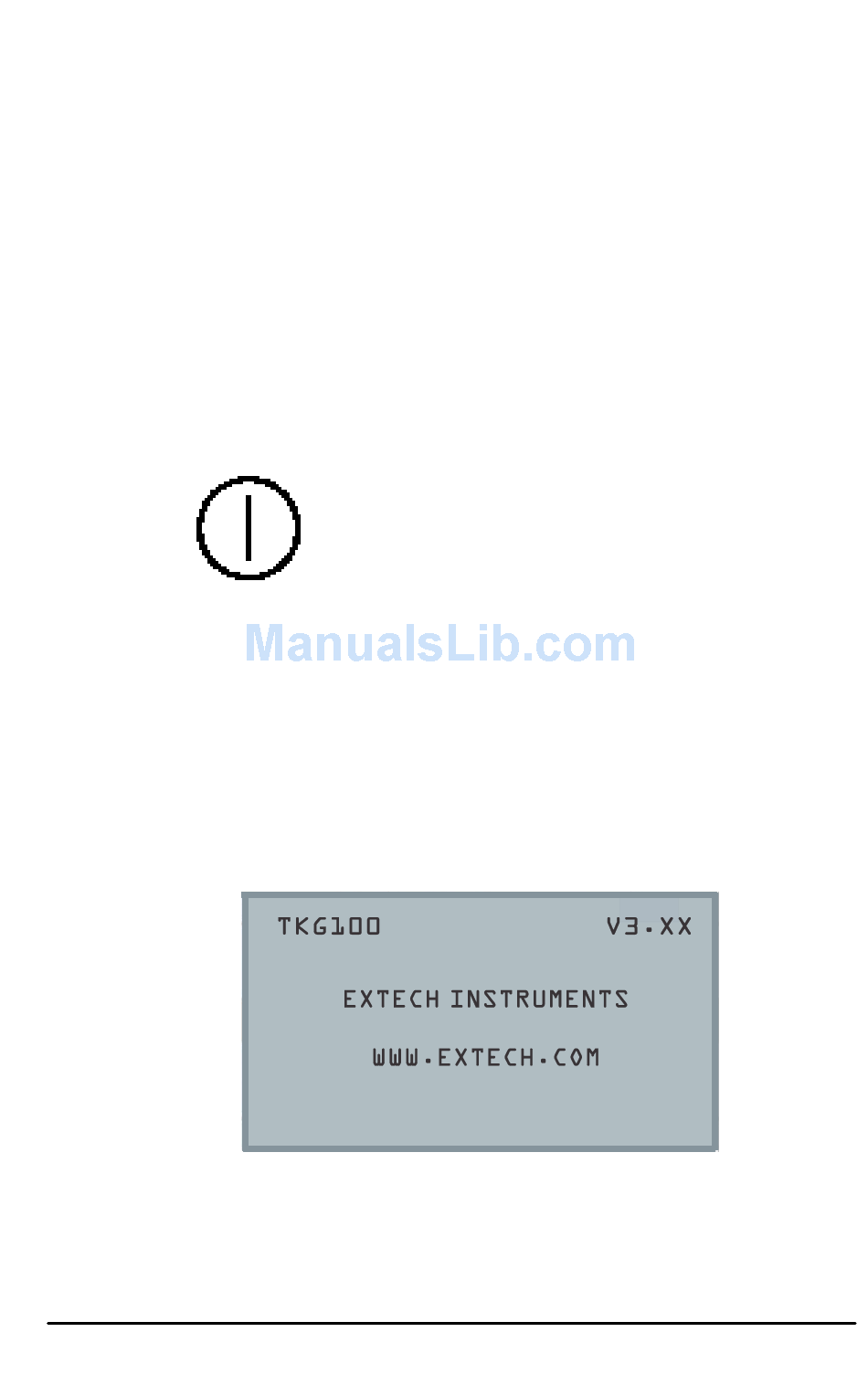

1. Press and hold the F1 key for more than 3
seconds. The power symbol is under the F1 key
printed on the keypad as shown below.
Power symbol
under the F1 key
The following (or similar) will appear on the
2.
display screen of the thickness gauge:
3. The next screen that appears automatically is
the transducer selection screen also referred to
as Home screen in the manual.
14
TKG100_TKG150 Ultrasonic Thickness Gauge User Guide v2.8 11/13
