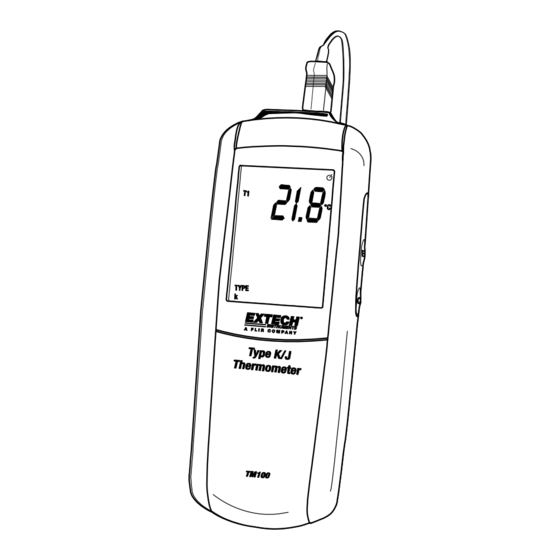

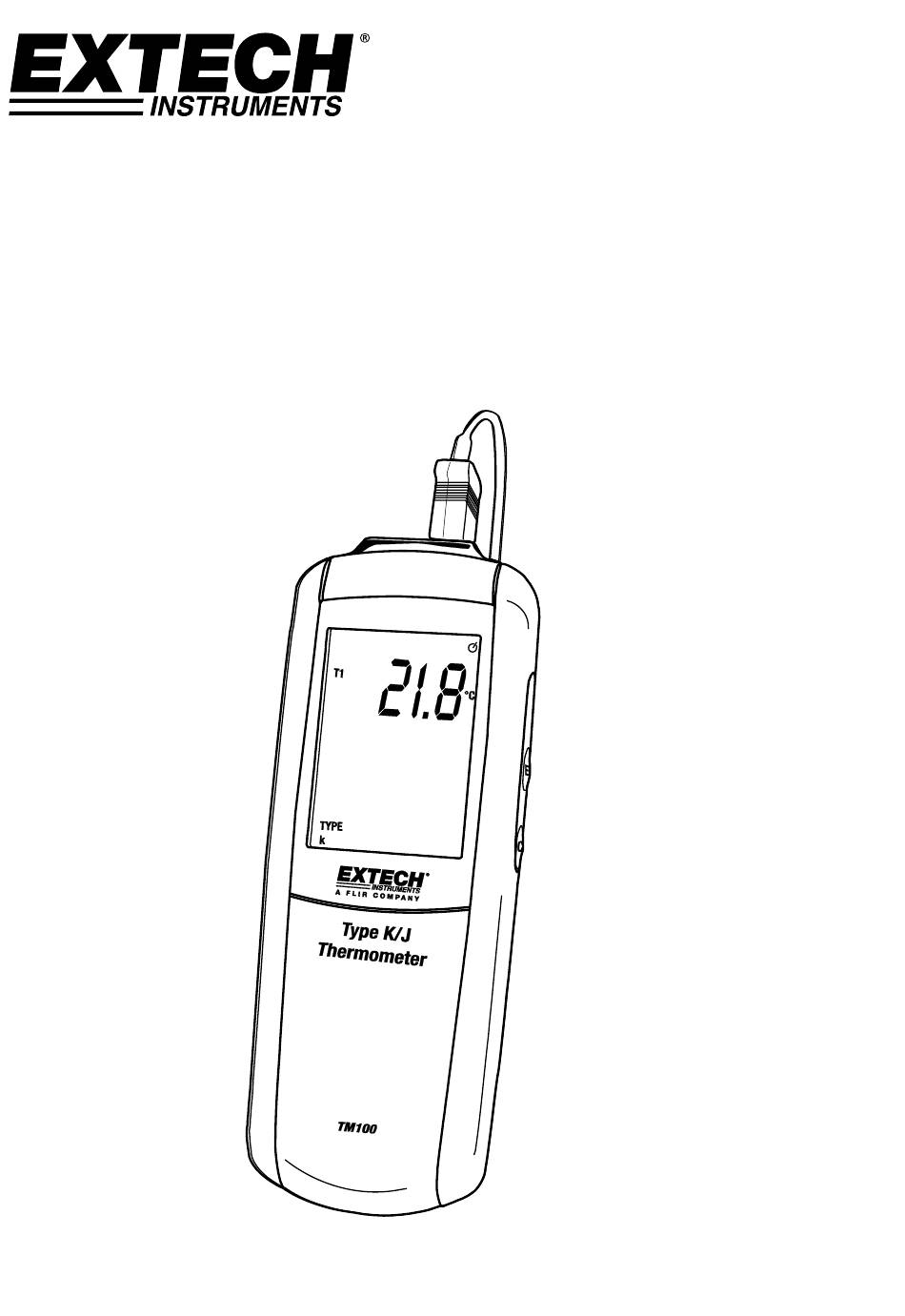

- Page 1 User's Guide Digital J/K Type Thermometer Model TM100...
- Page 2 Introduction Congratulations on your purchase of the Extech TM100 Digital Thermometer with single K/J-type input. This device is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. Please visit our website (www.extech.com) to check for the latest version of this User Guide, Product Updates, and Customer Support.
- Page 3 Operation Connecting thermocouples This meter accepts a K/J-type thermocouple with spade lugs (sub-miniature type with one spade wider than the other). Plug the thermocouple into the meter's thermocouple input jack. Measuring Press the button to switch ON the thermometer on. After 1 second the thermometer will display the first temperature reading (upper display).
- Page 4 Setup option The setup option is used to select the thermocouple type that matches the type that will be connected to the meter, to switch the sleep mode OFF/ON, and to adjust the thermocouple offset. Note: In the setup mode, the upper display shows the menu items and the lower display shows the selection for a given menu item.
- Page 5 Replacing the Batteries Switch OFF the thermometer. Loosen the battery compartment screw and remove the compartment door. Replace the AAA batteries. Replace the battery door and tighten the screw. Never dispose of used batteries or rechargeable batteries in household waste. As consumers, users are legally required to take used batteries to appropriate collection sites, the retail store where the batteries were purchased, or wherever batteries are sold.
