Enclosure Dimensions - Altronix ReServ4WP User Manual

Fig. 4

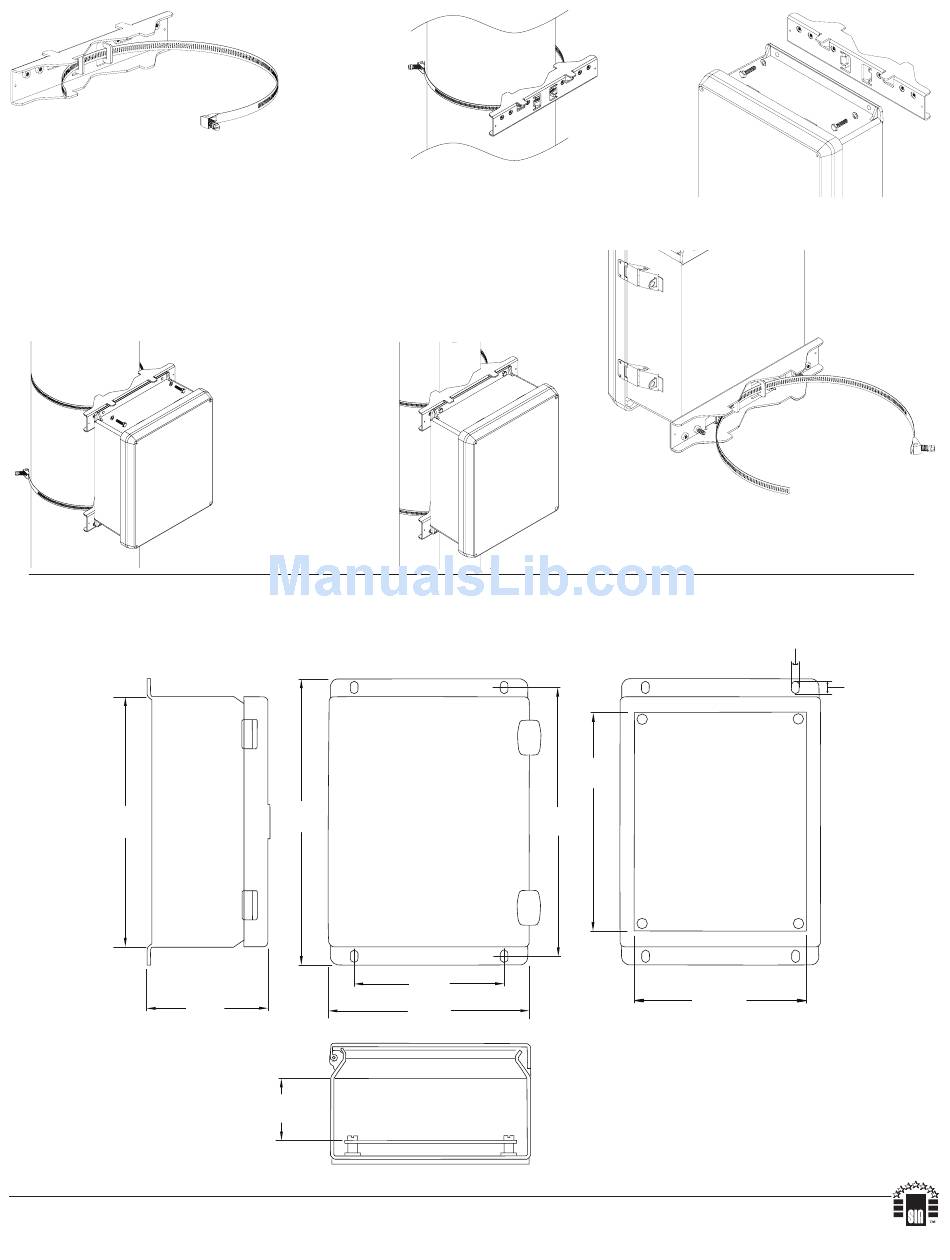

5. Mount enclosure onto the top bracket by inserting bolts through flange of the enclosure
and into the bracket, tightening bolts with a 7/16" hex socket (Fig. 7, pg. 4).
6. Tighten the straps of the bottom bracket down by sliding the open end of
the strap through the locking mechanism on the strap, then tighten screw
with flat head screwdriver or 5/16" hex socket driver (Fig. 8/8a, pg. 4).
7. Clip excess straps.
Fig. 8 - 2" to 8"(50.8mm to 203.2mm)
diameter round pole

Enclosure Dimensions:

17.375" x 12" x 6.5" (441.3mm x 304.8mm x 165.1mm).
16''
406mm
165.1mm
