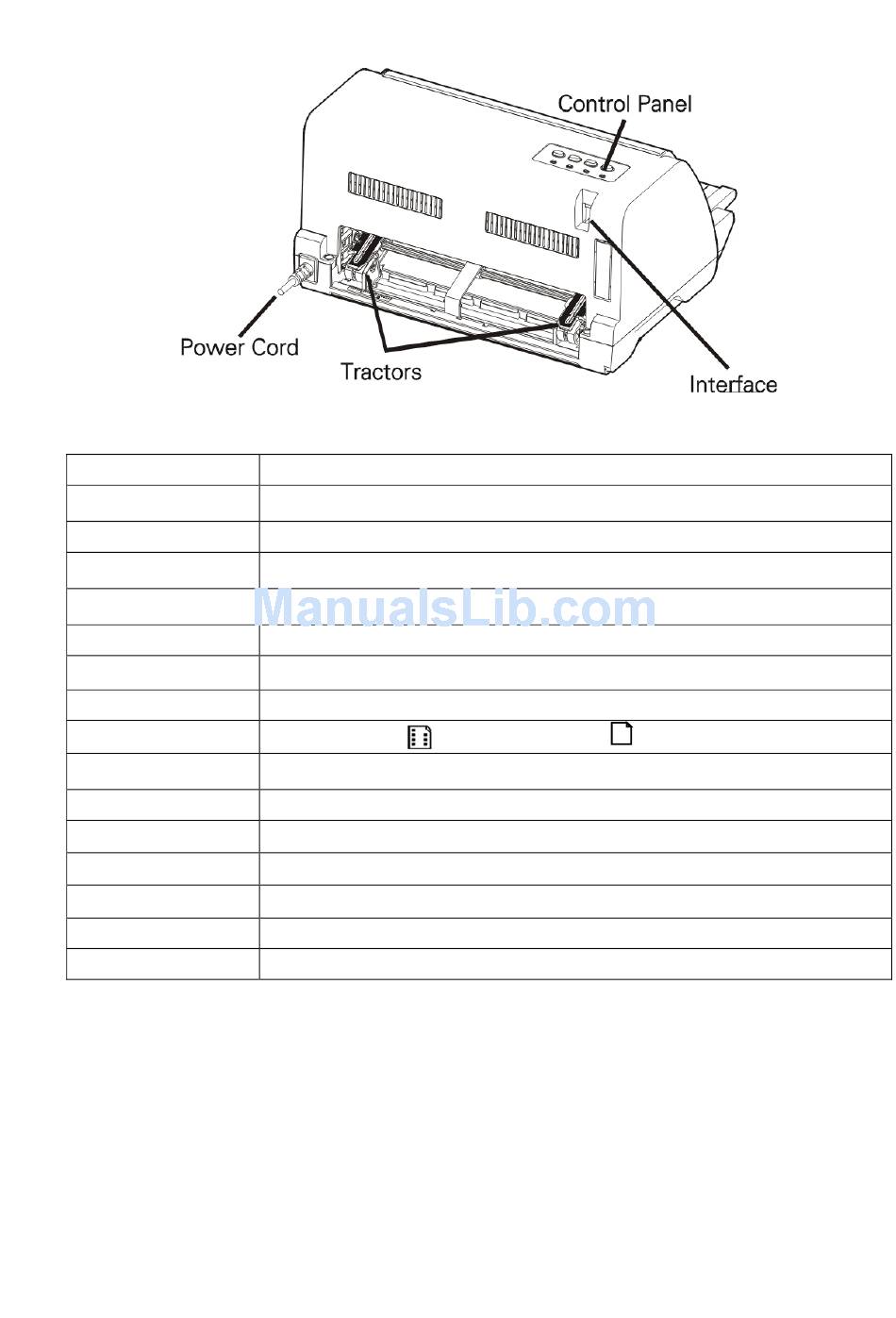

Component
Front Flap
Paper Guides
Sheet Feeder
Paper Holder
Print Head
Head Gap Lever
Control Panel
Paper Feed Lever
Paper Feed Knob
Power Switch
Ribbon Cartridge
Ribbon Frame
Tractors
Power cord
Interface
Function
Proect the printerhead and other parts inside .And reduce noise.
Adjust positioning of single sheet paper.
Support the cut sheet so as to ensure the paper in and out easily.
For single sheet in larger sizes.
24-pin printing mechanism
Adjusts the gap between the print head and various form thickness.
Shows printer status, for printer setup.
Two positions:
= continuous forms; = single sheet paper
Manual feed or vertical positioning of paper
Power printer ON or OFF
Install ribbon in the printer.
For guiding ribbon installation on print head.
For feeding and adjustment of continuous forms.
Connect the printer and power socket.
Connects interface cable from the host.
