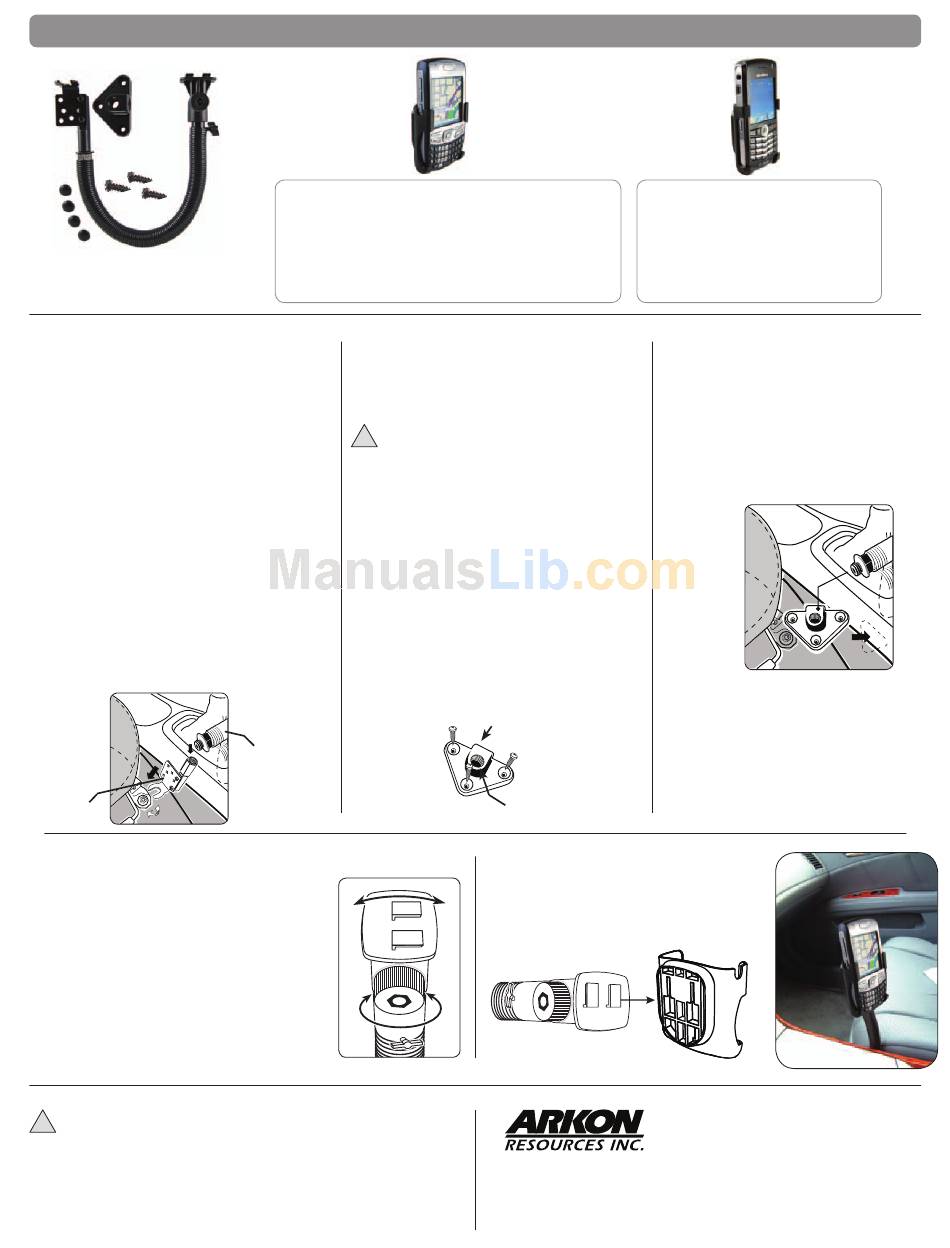

Arkon BBP125-S User Manual

PTM125-S BBP125-S | 15" Flexible Steel Gooseneck Mount
CM088-TS-2 15" Flexible Steel "Gooseneck" Mount
(shown with Seat Bolt Bracket attached)

Package Contents:

(1) Seat Bolt Bracket
(1) Floor / Console Bracket
(1) Flexible Steel Shaft with Plastic Tubing
(1) Dual T Pattern Head
(3) Screws
(4) Plastic Caps
(1) Custom Cradle (CC002-Palm or CC003-BBP)
NOTES:
1. Tool for Seat Bolt mounting - socket wrench
2. Tools for optional Floor or Console mounting
- drill and screwdriver
3. Do not twist the cradle or device while
mounted on top of the pedestal to adjust the
steel shaft as this can break the dual T grooves.

Installation Instructions

Passenger Seat Bolt Mounting

For a simple mount that can be easily moved
to another vehicle, install using the passenger
seat bolt (no drilling required).
Step 1. Screw the fl exible steel shaft into the
Seat Bolt Bracket.
Seat Bolt Bracket

Pedestal Head Adjustments

Step 1. Adjust the steel shaft by bending with
both hands to the desired location of the
male dual T-head.
Use the adjustment knob (A) and wing
Step 2.
nut (B) on the pedestal head to swivel or
rotate the head position if necessary.
Align the female dual T-slots on the
Step 3.
cradle to the dual T-tabs on the pedestal
head. Insert device.
Safety Precautions
!
Drilling onto the fl oor or console can permanently damage the
vehicle. Use caution and consult a mobile install professional to
avoid drilling into the gas tank, electrical system or other highly
sensitive vehicle components.
Arkon Resources, Inc. is not responsible for any damages caused to
your vehicle, your device, or yourself due to the installation or use
of this product.
Compatability: (not complete)
- Palm Treo 650 - HP iPAQ 6815
- Palm Treo 680 - HP iPAQ 6818
- Palm Treo 700W - HP iPAQ 6828
- Palm Treo 700P - HTC P3600
- Palm Treo 750 - HTC 6815
Step 2. With a socket wrench, loosen the
passenger seat bolt, insert the Seat Bolt
Bracket, and retighten the seat bolt.
Safety Precautions
!
Drilling onto the fl oor or console can
permanently damage the vehicle. Use
caution and consult a mobile install
professional to avoid drilling into the gas
tank, electrical system or other highly
sensitive vehicle components.
Arkon Resources, Inc. is not responsible for
any damages caused to your car or yourself
due to the install of the pedestal mount.

Floor or Console Mounting

For a more permanent mount, connect the
Floor / Console Mount Bracket to the fl oor or
console. This will require drilling into your
vehicle's interior surface.
Threaded Flexible
Steel Shaft
(A)
CC002-Palm
- XDA Adom Exec
- Dopod 818 Pro
- Dopod 810
- Pharos GPS 525P
- i-Mate JAMin
Console Mount
Floor Mount
Connecting the cradle
Slide the T-slots of the cradle onto
the T-tabs of the mount head.
(B)
Consumer Hotline:
(USA) (800) 841-0884
(INT'L) (626) 254-9005
Mon-Fri. 9am-5pm, PST
CC003-BBP
Compatability:
Blackberry Pearl 8100
Step 1. Position the Floor / Console
Bracket and drill into the fl oor or
console.
Step 2. Attach the Floor / Console Bracket
with screws and cover with plastic
caps.
Step 3. Screw the steel shaft into the Floor
/ Console Bracket.
The Mobile Mounting Specialists™
www.arkon.com
Arcadia, CA 91006 USA
© Copyright 2007 Arkon Resources, Inc.
Made in Taiwan
