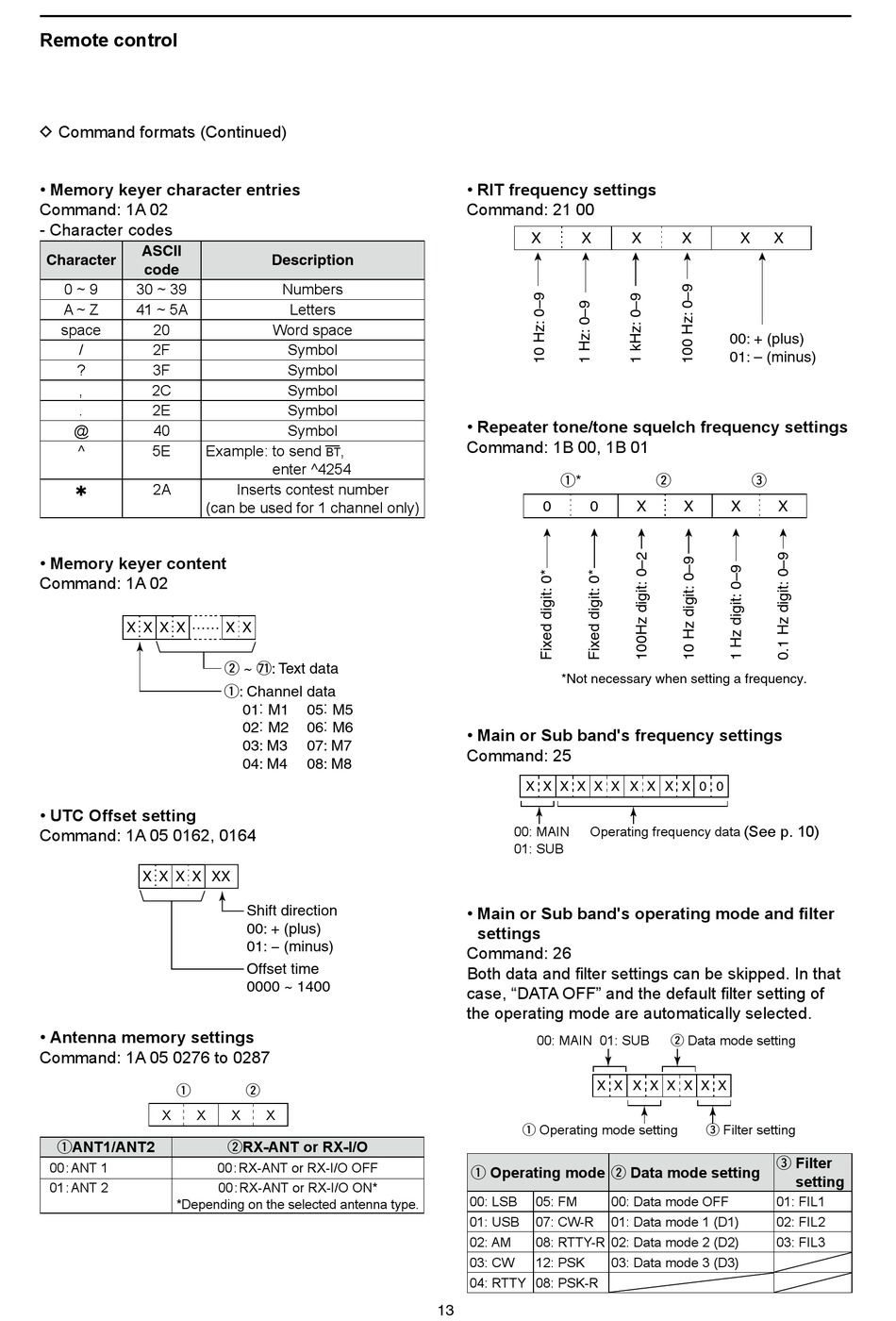

Icom iC-7610 Reference Manual page 14

Remote control
D Command formats (Continued)
• Memory keyer character entries
Command: 1A 02
- Character codes
ASCII
Character
code
0 ~ 9 30 ~ 39
A ~ Z 41 ~ 5A
space 20
/ 2F
? 3F
, 2C
. 2E
@ 40
^ 5E Example: to send
2A
✱
(can be used for 1 channel only)
• Memory keyer content
Command: 1A 02
X X X ...... X X
X
• UTC Offset setting
Command: 1A 05 0162, 0164
X X X X XX
• Antenna memory settings
Command: 1A 05 0276 to 0287
q
X X
qANT1/ANT2
00 :ANT 1
01 :ANT 2
*Depending on the selected antenna type.
Description
Numbers
Letters
Word space
Symbol
Symbol
Symbol
Symbol
Symbol
,
BT
enter ^4254
Inserts contest number
w ~ &1 : Text data
q: Channel data
01 ： M1 05 ： M5
02 ： M2 06 ： M6
03: M3 07: M7
04: M4 08: M8
Shift direction
00: + (plus)
01: − (minus)
Offset time
0000 ~ 1400
w
X X
wRX-ANT or RX-I/O
00 :RX-ANT or RX-I/O OFF
00 :RX-ANT or RX-I/O ON*
• RIT frequency settings
Command: 21 00
X X
• Repeater tone/tone squelch frequency settings
Command: 1B 00, 1B 01
q*
0 0
*Not necessary when setting a frequency.
• Main or Sub band's frequency settings
Command: 25
X X X X X X X X X X 0 0
00: MAIN Operating frequency data
01: SUB
• Main or Sub band's operating mode and filter
settings
Command: 26
Both data and filter settings can be skipped. In that
case, "DATA OFF" and the default filter setting of
the operating mode are automatically selected.
00: MAIN 01: SUB
X X
q Operating mode setting
q Operating mode w Data mode setting
00: LSB 05: FM
01: USB 07: CW-R
02: AM 08: RTTY-R 02: Data mode 2 (D2)
03: CW 12: PSK
04: RTTY 08: PSK-R
13
X X X X
00: + (plus)
01: – (minus)
w e
X X X X
(See p. 10)
w Data mode setting
X X X X X X
e Filter setting
e Filter
00: Data mode OFF 01: FIL1
01: Data mode 1 (D1) 02: FIL2
03: FIL3
03: Data mode 3 (D3)
setting
