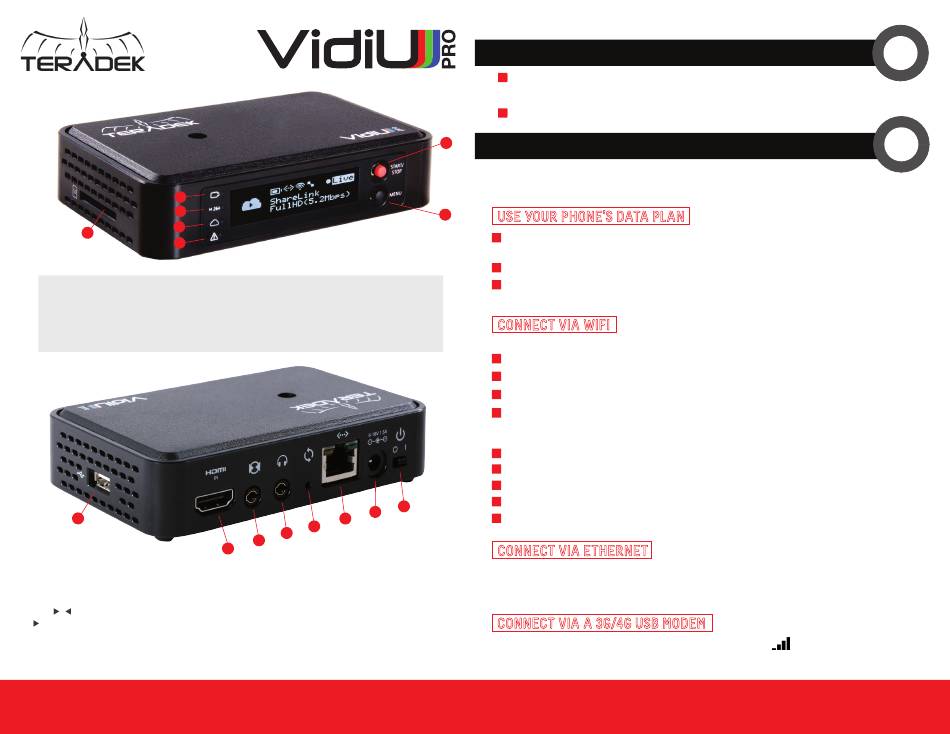

Teradek Vidiu Pro Manual

B
C
D
A
E
A: SD card slot F: Start/Stop joystick
B: Video input status G: Menu joystick
C: Encoder status H: USB port
D: Broadcast status I: HDMI input
E: Warning indicator J: MIC/Line input
H
Start/Stop Joystick:
: Start/stop broadcasts, exit menu screens
● (button press)
Menu Joystick:
, , , : Select menu items, change status screen on main display, select characters
▲ ▼
, : Confirm selection, open selected menu
● (button press)
Reset Button:
Hold for 3−6 seconds: Reset all network settings
Hold for 10+ seconds: Perform complete factory reset
Teradek regularly releases new firmware versions to improve performance, add new features, or to fix vulnerabilities.
Visit https://www.teradek.com to update your device with the latest firmware.
pantone 1795 pantone 355 pantone 307
K: Headphone output
L: Reset button
M: 10/100/1000 Ethernet
N: Power input
O: Power switch
O
N
M
L
K
J
I
POWER AND CONNECT
Connect power to Cube using the included A/C adapter or one of the available accessory
1
power cables (see Teradek.com).
Connect the HDMI output from your video source to VidiU Pro's HDMI input connector (I).
2
GET ONLINE
F
The VidiU iOS app allows you to remotely monitor and configure VidiU Pro. Download the VidiU iOS
app from the App Store, then choose one of the following methods to get VidiU online.
USE YOUR PHONE'S DATA PLAN
G
Connect your iOS device to VidiU Pro's AP network: VidiU-Pro-XXXXX (XXXXX is the last five
1
digits of the device's serial number).
Open the VidiU app and select the corresponding VidiU Pro.
2
When prompted, click Yes to use your cellular data plan. If you have a ShareLink account, up to four
3
phones can be used simultaneously.
CONNECT VIA WIFI
iOS
Connect your iOS device to VidiU Pro's AP network: VidiU-Pro-XXXXX.
1
From the VidiU app, tap the Settings button, select Network, then select Wireless.
2
To connect to a different network, select Client, then tap Scan for Networks.
3
Select a network, then connect your iOS device to that network.
4
ANDROID/PC
Connect your device to VidiU Pro's AP network: VidiU−Pro−XXXXX.
1
Open a web browser and navigate to http://172.16.1.1.
2
From the VidiU web UI, tap the Settings button, select Network, open the WiFi menu, then tap Modify.
3
4 To connect to a different network, select Client, then tap Browse to scan for networks.
Select a network, then connect your device to that network.
5
CONNECT VIA ETHERNET
Plug an Ethernet cable into VidiU Pro's 10/100/1000 Ethernet port and connect it to an Ethernet switch
or router. From the web UI, VidiU app, or front panel interface, navigate to the Network Setup menu, then
select Wired to verify that Ethernet is set to DHCP and to view VidiU Pro's IP address.
CONNECT VIA A 3G/4G USB MODEM
Insert a compatible 3G/4G USB modem into the USB port and wait for the
See http://support.teradek.com for a list of supported modems.
NEED MORE HELP?
1. Support forum: http://support.teradek.com → Contains tips, information and all the latest firmware & software updates.
2. Training videos: http://www.teradek.com/trainin
TERADEK SUPPORT STAFF: support@teradek.com or call 888−941−2111 ext2 (Mon−Fri 9am to 6pm PST)
icon to appear.
g
1
2
