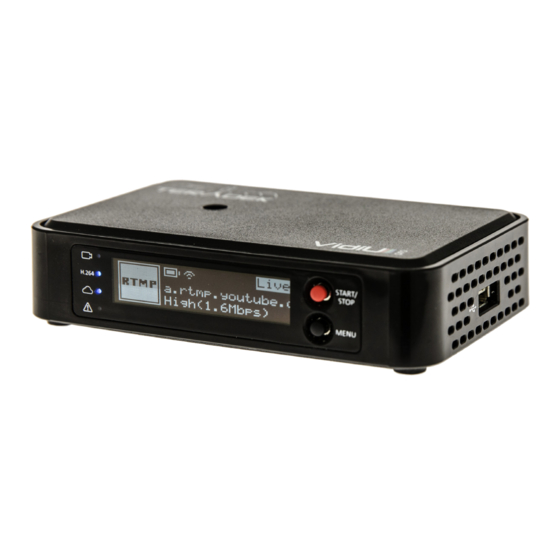

VIDIU AND VIDIU PRO
pantone 1795
pantone 355
pantone 307
REFERENCE GUIDE
© 2017 Teradek, LLC. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIDIU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teradek VIDIU

Summary of Contents for Teradek VIDIU

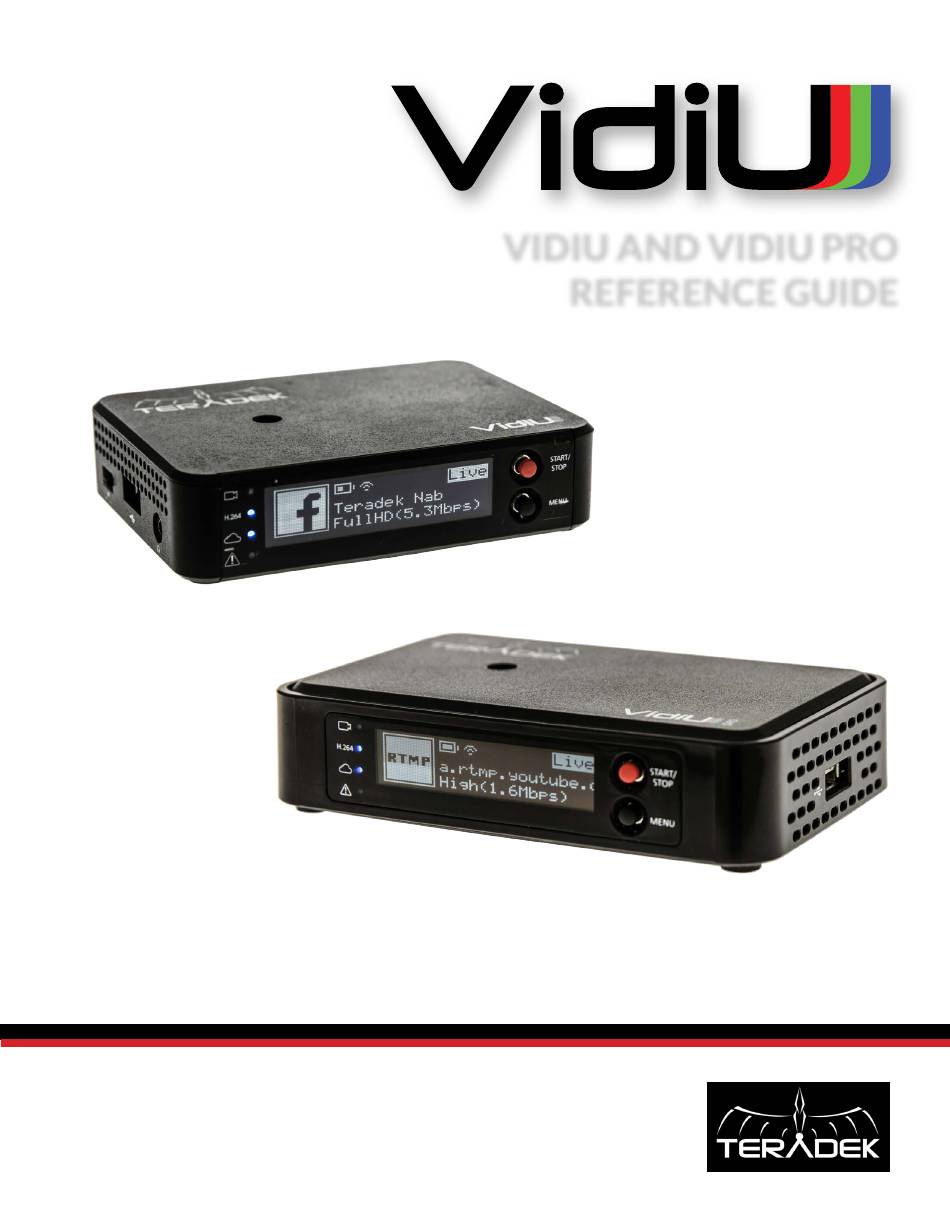

  • Page 1 VIDIU AND VIDIU PRO pantone 1795 pantone 355 pantone 307 REFERENCE GUIDE © 2017 Teradek, LLC. All Rights Reserved.

  • Page 2: Table Of Contents

    2. Getting Started ................. 6 Power Your Device ..............6 Connect to a Network ............7 Choose a Platform .............. 10 Internet Streaming from VidiU with Live:Air ..11 3. Settings Overview ……….……………………..………………....12 Settings Diagrams .............. 13 Broadcast: Platform Settings ........16 Broadcast: Quality Settings ...........

  • Page 3: Introduction

    Use this reference guide to enhance your usage and knowledge of VidiU or VidiU Pro. Support Resources In addition to this reference guide, there are a number of resources available for more information on the VidiU’s features and operation. For tips, information, and all the latest available firmware and software updates, visit Teradek’s support forum at https://support.teradek.com.

  • Page 4: Physical Properties

    Physical Properties (VidiU) A. Power Switch (Side) H. Start/Stop Joystick B. USB Port (Side) I. Menu Joystick C. Headphone Output (Side) J. HDMI Input D. Video Input Status K. Mic/Line Input E. Encoder Status L. Reset Button F. Broadcast Status M.
  • Page 5 C. Encoder Status K. Headphone Output D. Broadcast Status L. Reset Button E. Warning Indicator M. Ethernet F. Start/Stop N. DC Input G. USB Port (side) O. Power Switch H. Menu Joystick © Teradek, LLC 2017. All rights reserved. Page 5...

  • Page 6: Getting Started

    3. Choose your streaming platform POWER YOUR DEVICE 1. To power your VidiU or VidiU Pro, connect the AC adapter to the DC input (Fig. 2-1) located on the back of the device, then turn the power switch to the On position.

  • Page 7: Connect To A Network

    CONNECT TO A NETWORK You can use the VidiU app, the Web User Interface (Web UI), or the front panel interface to connect VidiU to a network. Select one of the following options. Using the VidiU App The VidiU iOS application allows you to remotely monitor and configure VidiU.
  • Page 8 Connect using your phone’s data plan: 1. Connect your iOS device to VidiU’s Access Point network (pg. 24): VidiU−XXXXX (serial number of the device). 2. Open the VidiU app and select VidiU with the corresponding serial number under the list of Wi-Fi devices.
  • Page 9 IP address (Fig. 2-10). To access the Web UI: Fig. 2-10 4. Open a web browser and enter VidiU’s IP address in the navigation bar (Fig. 2-12). Connect using a 3G/4G USB Modem: 1. Insert a compatible 3G/4G USB modem into the USB port (Fig.

  • Page 10: Choose A Platform

    CHOOSE YOUR PLATFORM VidiU and VidiU Pro are capable of broadcasting to any compatible online video platform. VidiU offers integration with many popular video streaming platforms, simply enter your credentials using the VidiU app, Web UI, or the front panel interface.

  • Page 11: Internet Streaming From Vidiu With Live:air

    Both apps are Fig. 2-17 available in the iTunes App Store. 2. Connect your iOS device to the same network as VidiU. 3. Activate the Live:Air app. 4. From the Live:Air app, select the button on the lower, left-hand corner, then select Add a Device (Fig.

  • Page 12: Settings Overview

    The Settings menu allows you to customize and control VidiU or VidiU Pro’s broadcast, audio/video, and network settings. Use the VidiU app, Web UI, or the front panel interface to access the Settings menu, then select a setting to modify.

  • Page 13: Settings Diagrams

    Wireless Speed Test Mobile Auto Dynamic Access Point Access Point Preset Static Client Client Custom Enable/Disable RECORDING Recording Purchase Plan SHARELINK Login * Settings options will vary, depending on the platform © Teradek, LLC 2017. All rights reserved. Page 13...
  • Page 14 WEB USER INTERFACE (WEB UI) SETTINGS DIAGRAM Frame Custom Audio Quality Video Rate Bitrate BROADCAST Platform* Full HD High 256000 Livestream Full 192000 High UStream Medium Half 128000 YouTube High Quarter 96000 Twitch Medium 48000 Mobile Facebook Auto 32000 Manual 16000 Mobile Live:Air...
  • Page 15 VIDIU FRONT PANEL INTERFACE SETTINGS DIAGRAM Frame Adaptive Quality Audio Video Bitrate Rate BROADCAST Platform* On/Off Full HD High High Full Livestream Medium Half UStream High Quarter YouTube Medium Mobile Twitch Auto Facebook Mobile Manual Live:Air Wowza Media Format RECORDING...

  • Page 16: Broadcast: Platform Settings

    Select one of several integrated streaming platforms, then enter your credentials or destination information. From the VidiU app, Web UI, or the front panel interface, go to your Settings menu, select Broadcast (Broadcast Settings on the front panel interface), Platform, then select a platform to stream to.
  • Page 17 Enabling the ‘Auto-Record’ setting triggers these recordings. Access permissions for the recorded files can be configured on your UStream account. Fig. 3-6 Fig. 3-7 © Teradek, LLC 2017. All rights reserved. Page 17...
  • Page 18 2. Copy the authentication code generated for your device, go to http://www.google.com/device, then enter your credentials (Fig. 3-8). Enter the code, then allow VidiU to access your account. 3. Select an event, create a new event, or select ‘Stream Now’ (Fig. 3-9).
  • Page 19 ● Your Timeline privacy setting will be used if a less restrictive privacy option is chosen. (e.g. your timeline is set to Friends, but you set the VidiU to ‘All.’ The post will be visible to friends). ● Posts to Facebook pages are always public.
  • Page 20 RTMP (Manual): VidiU can stream to other video platforms, CDNs, and streaming servers using the manual RTMP mode. RTMP is supported by most video streaming platforms. 1. Select RTMP (Manual if using the Web UI). 2. Enter the URL and stream key/name (Fig. 3-16) information provided by the streaming service.

  • Page 21: Broadcast: Quality Settings

    The Broadcast Quality menu allows you to configure the video resolution, bitrate, frame rate, and the audio bitrate. From the VidiU app, Web UI, or the front panel interface, go to your Settings menu, select Broadcast (Broadcast Settings on the front panel interface), Quality, then make a selection.

  • Page 22: Video/Audio

    Video/Audio The Video/Audio menu contains input source configuration and video overlay options. From the VidiU app or Web UI, go to Settings, then select Video/Audio. Widescreen settings: Auto - HD (1080i, 720p) streamed video will have a 16:9 aspect ratio, and...

  • Page 23: System

    Essential system functions including factory reset and firmware upgrade can be performed from the System menu. From the VidiU app, Web UI, or the front panel interface, go to your Settings menu, then select System (System Settings on the front panel interface).

  • Page 24: Network

    Network VidiU allows you to connect and stream to the Internet by utilizing one of several network interfaces. From the Web UI or the VidiU app, go to Settings, then select Network. Wired A wired Ethernet connection is typically the most reliable means for connecting to a network, as you don’t...

  • Page 25: Usb 3G/4G Modem

    Always - If no other Internet connection is detected, VidiU will always utilize your mobile device’s data connection Never - The VidiU app will not prompt you to share your phone’s Internet connection Ask (Yes/No)- You will be asked whether or not to use your phone’s data connection...

  • Page 26: Recording

    VidiU Pro allows you to record your broadcasts directly to an SD card or USB drive. Each recording is saved with the same resolution and bit rate set on the device. From the front panel interface, Web UI, or the VidiU app, go to your Settings, then select Recording.

  • Page 27: Troubleshooting

    TROUBLESHOOTING My firewall/router is blocking RTMP streaming. VidiU and VidiU Pro use a set of ports for RTMP streaming. The list can be found at https://support.teradek.com/hc/en-us/ articles/226177168. Make sure the required ports are allowed through your firewall or router. What are the supported resolutions for each social media CDN? Every live streaming platform’s specifications are different, and generally change over time.
  • Page 28 To connect using the web interface, find your VidiU’s IP address from the front panel. Type this address into your web browser. You will be connected to your VidiU and can change settings accordingly (see pg. 8).

  • Page 29: Technical Specifications

    Feature-rich WebUI for configuration and control OLED LCD Display with joystick Navigation buttons On/Off and Reset Switch Powered USB 2.0 host port NETWORK Ethernet: 10/100BASE-T Wi-Fi: 2.4/5GHz 802.11 a/b/g/n MiMO 3G/4G USB Modem © Teradek, LLC 2017. All rights reserved. Page 29...
  • Page 30 VIDIU (cont.) POWER Barrel Power input Internal Rechargeable Lithium Ion Battery Nominal Power Consumption: 3.5W Nominal Power Consumption while Charging : up to 10W Auxiliary Power Input: 6-12V DC VIDIU PRO VIDEO INPUTS HDMI: Full Size SUPPORTED RESOLUTIONS 1080i 50/59.94/60 1080p 23.98/24/25/29.97/30...
  • Page 31 LEDs For Power, Error and Go Live lighted button On/Off and Reset Switch SD/MMC NETWORK Wi-Fi: Dual Band MIMO 802.11 a/b/g/n Bluetooth Smart (LE) for Wi-Fi network configuration Ethernet: 10/100BASE-T USB: USB 3G/4G modem support RF Channel Selection: Auto © Teradek, LLC 2017. All rights reserved. Page 31...
  • Page 32 POWER 6-18V DC Barrel Adapter Internal Rechargeable Lithium Ion Battery (up to 3hr) Nominal Power Consumption: 4.5W Nominal Power Consumption while Charging : up to 10W Page 32...
  • Page 33 © Teradek, LLC 2017. All rights reserved. Page 33...
