Explosive Atmosphere Line Powered Telephone Ringer
Avaya Inc.
211 Mt. Airy Road
Basking Ridge NJ 07920
Model EA20R
Installation and Operation

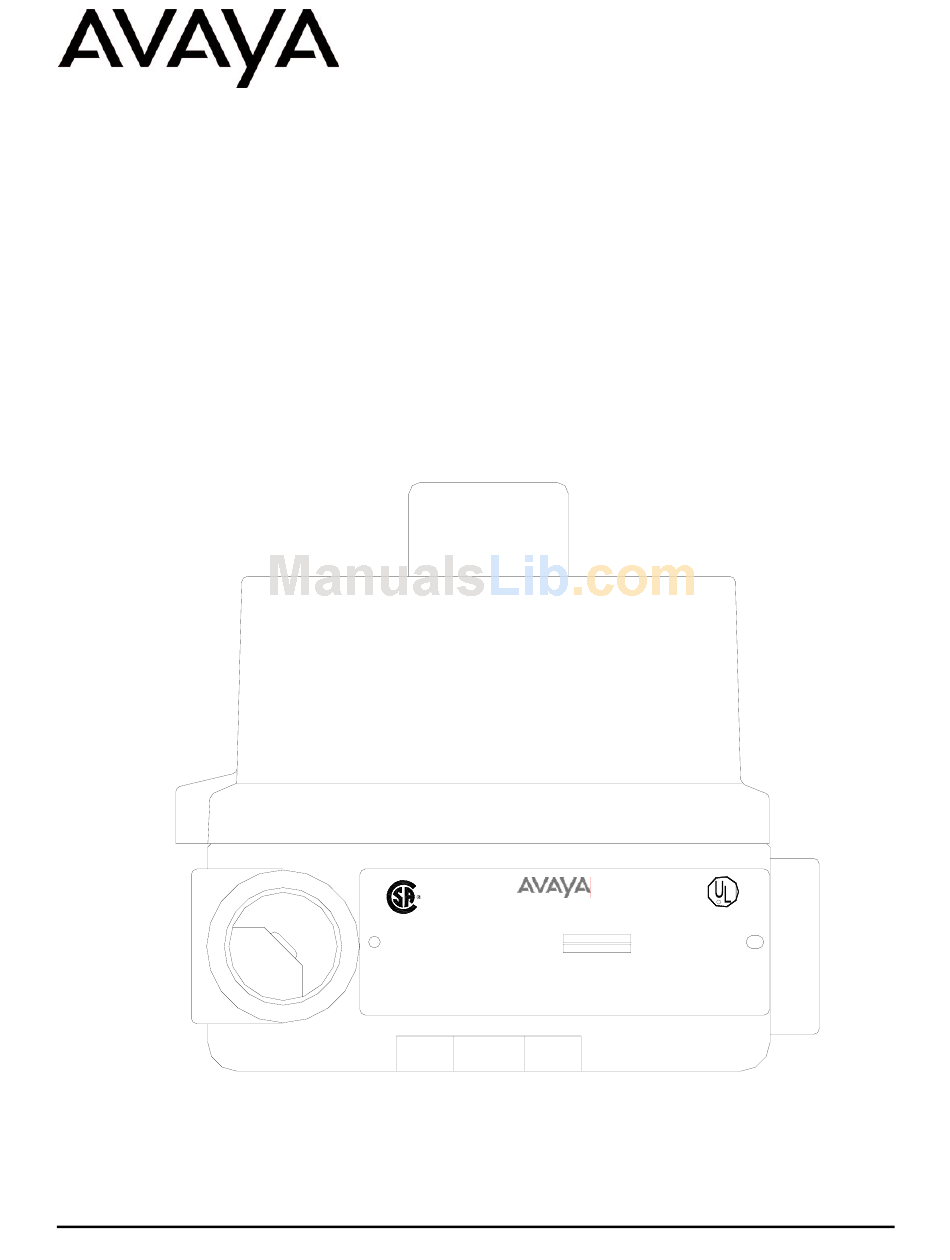

EA20R EXPLOSION PROOF RINGER
WITHOUT PROJECTION HORN
LR 65547-31
MODEL NUMBER: EA20R
CL.I, DIV.1, GR.B,C&D
COMCODE:
CL.I, ZONE 1, GR.IIB+H2
CL.II, DIV.2, GR.F&G
SERIAL NUMBER:
CL.III, HAZARDOUS LOCATIONS
RING VOLTAGE: 42 - 110V AC @ 16 - 25Hz.
TEMP. CODE T5
CURRENT: 7 - 20mA.
CAUTION: CONDUIT RUNS MUST HAVE A SEALING FITTING INSTALLED WITHIN
18 INCHES OF THIS ENCLOSURE.
WARNING: TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT FROM SUPPLY CIRCUIT BEFORE OPENING.
KEEP ASSEMBLY TIGHTLY CLOSED WHILE CIRCUITS ARE ALIVE. COVER JOINTS MUST BE CLEANSED BEFORE REPLACING COVER.
R
LISTED
66LN
AUDIBLE SIGNAL APPLIANCE FOR
700302052
USE IN HAZARDOUS LOCATIONS
CL.I, DIV.1, GR.B,C&D
CL.I, ZONE 1, GR.IIB+H2
REN: 4
P005982 Rev. A 11/13/2003 5:25 PM
