Avaya PARTNER Instructions

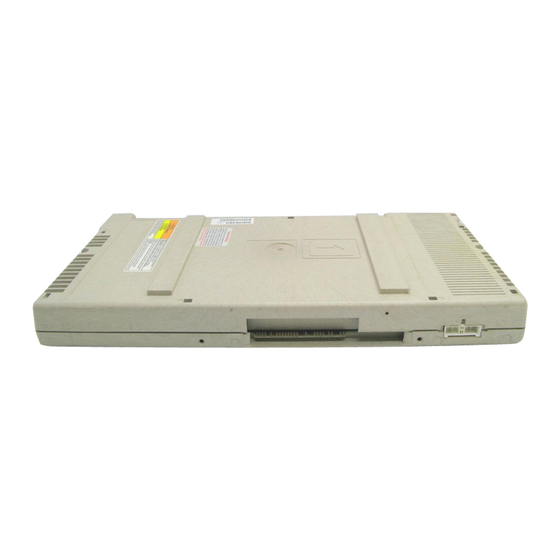

308EC Module
Line Cords
308EC
Module
The instructions also apply to previous models of PARTNER, including the PARTNER, PARTNER PLUS,
and PARTNER II Communications Systems. Please note the illustrations are examples only. Your system
may look different.

Important Safety Instructions

!
WARNING:
The following list provides basic safety precautions that should always be followed when using your telephone
equipment:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the equipment.
3. Unplug all telephone connections before cleaning. DO NOT use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
4. The product should be serviced by (or taken to) a qualified repair center when service or repair work is
required.
5. DO NOT use the product near water, for example, a wet basement location.
6. Never push objects of any kind into the slots or openings as they may touch dangerous voltage points or short
out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the equipment;
doing so may result in serious damage to the components.
7. DO NOT use the telephone to report a gas leak in the vicinity of the leak.
8. The telephone equipment is provided with a three-wire grounding type plug. This is a safety feature. DO NOT
defeat the safety purpose of the grounding type plug. DO NOT staple or otherwise attach the power supply
cord to building surfaces.
!
CAUTION:
DO NOT block or cover the ventilation slots and openings. They prevent the product from overheating.
DO NOT place the equipment in a separate enclosure unless proper ventilation is provided.

Additional Safety Instructions for Installation Personnel

1. Install the equipment to meet all the environmental and electrical requirements listed in the documentation
that came with your system.
2. DO NOT install equipment during a lightning storm.
3. DO NOT install telephone jacks in a wet location unless the jack is specifically designed for wet locations.
4. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the
network interface.
5. Use caution when installing or modifying telephone lines.
6. The control unit must be securely wall mounted.
Expanding Your PARTNER

Communications System

This document provides instructions for adding or replacing modules in
your existing system. The modules you may add include:
1600 DSL (For use with PARTNER ACS Release 4.0 or later only)
308EC (For use with PARTNER ACS Release 2.0 or later only)
012E (For use with PARTNER ACS Release 5.0 or later only)
PARTNER Messaging Release 1.0
7-foot
PARTNER MAIL VS (PMVS)
400E, 400EC
200E
206, 206E, 206EC
SAVE THESE INSTRUCTIONS
Copyright 2002
All rights reserved.
Printed in U.S.A.
®
Advanced
Comcode 700217318
PARTNER is a registered trademark of Avaya
518-456-500
Issue 3
