golmar Vista Nexa Instruction Manual

golmar Vista Nexa Instruction Manual

Replacement video door entry system
Hide thumbs Also See for Vista Nexa:
Table of Contents

Advertisement

Quick Links

Download this manual

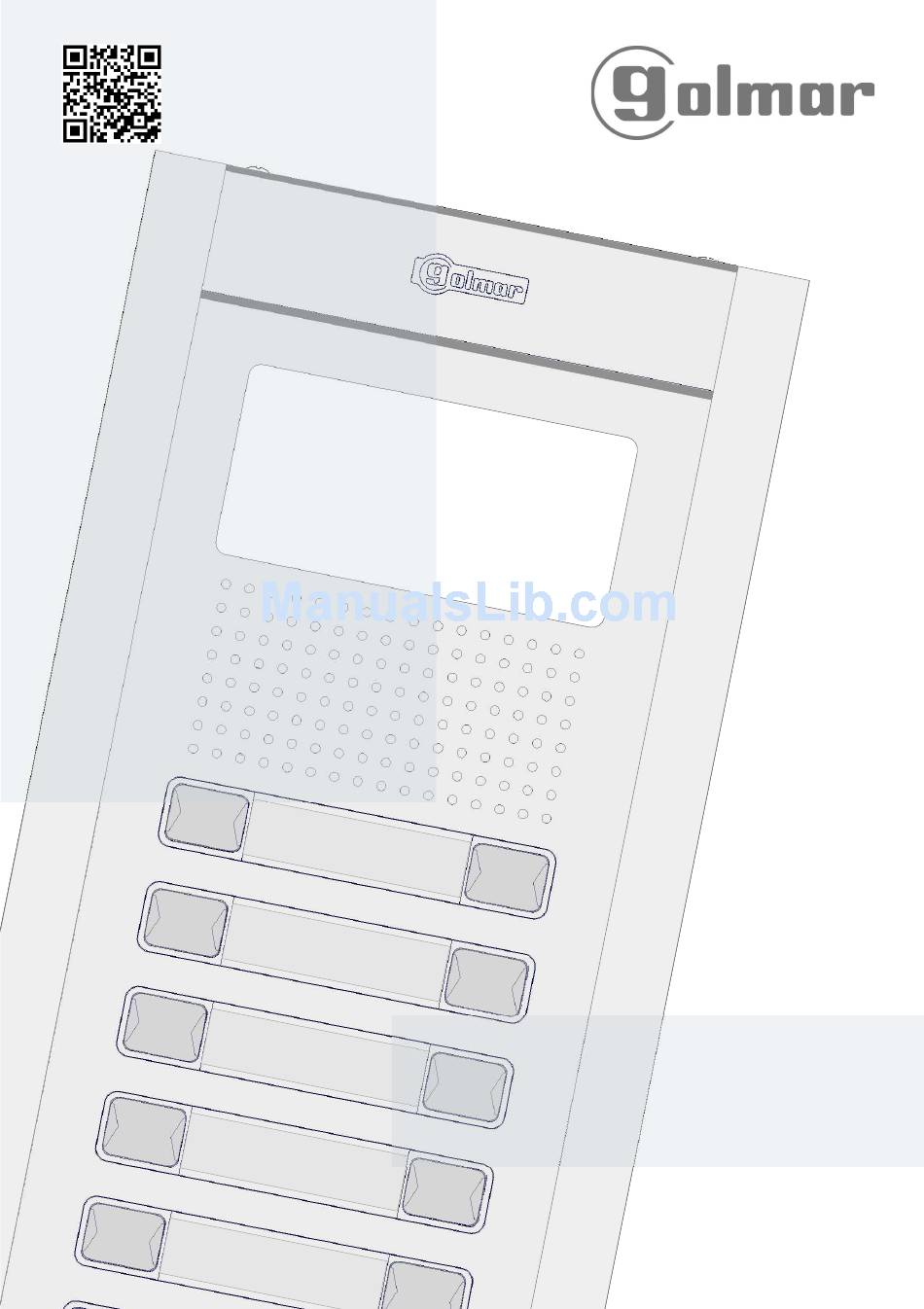

Cód. 50121860
Replacement video
door entry system
Vista Nexa
Instructions manual
EN rev.0116
T63 /R5
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vista Nexa and is the answer not in the manual?

Questions and answers

Related Manuals for golmar Vista Nexa

Summary of Contents for golmar Vista Nexa

  • Page 1 Cód. 50121860 Replacement video door entry system Vista Nexa Instructions manual EN rev.0116 T63 /R5...

  • Page 2: Table Of Contents

    INTRODUCTION First of all we would like to thank and congratulate you for the purchase of this product manufactured by Golmar. The commitment to reach the satisfaction of our customers is stated through the ISO-9001 certification and for the manufacturing of products like this one.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Coming from previous page O With monitor, telephones and distributor: w Do not use excessive force when tightening the connector screws. Install the equipments in a dry and protected place without risk of drip or water projections. Avoid to place it near to heating sources, in dusty locations or smoky enviroments. Do not block ventilation holes of the equipments so that air can circulate freely.
  • Page 4 2.5mm² V+, V-, A/D 0.25mm² 0.25mm² Golmar has a special cable for this system, its reference number is The use of this cable RAP-8415. ensures the correct functioning of the system and simplifies the riser replacement given that it contains all the necessary wires for the installation.

  • Page 5: Door Panel Description

    DOOR PANEL DESCRIPTION oor panel description. General detail of parts, for assembly the door panel. Electronic Embedding boxes Frame modules Aluminium modules modules Door panel description. Main module Push buttons module Sound module EL63 /R5 , on video systems with color camera. EL64 /R5 , on audio systems.
  • Page 6 Configuration dip switch. Back side. Bus Nexa connector CN7. Push buttons connector. Monitor audio adjustment. Door panel audio adjustment. Push button number. Installations terminals (bus Vista Nexa). Installation terminals: : Positive, ground. Vi+,Vi- : Video signal input. Vo+,Vo- : Video signal output.
  • Page 7 MODULES DESCRIPTION ush buttons electronic module EL610D description. Front side. Push buttons module (x10). Back side. Input/Output push buttons connector (x3). Configuration dip switch (Push buttons call code). Push button number.

  • Page 8: Door Panel

    DOOR PANEL INSTALLATION mbedding box positioning. 1850 1650 1450 The upper part of the door panel should be placed at 1,65m. height roughly. The hole dimensions will depend on the type of door panel. Door panel 90CS Model CEA90C CEV90C CEV90 99 mm.
  • Page 9 DOOR PANEL INSTALLATION lace the embedding box. Pass the wiring through the hole made in the bottom part of the embedding box. Level and flush the embedding box. Once the embedding box is placed, remove the protective labels from the attaching door panel holes. ssembly the electronic modules.
  • Page 10 DOOR PANEL INSTALLATION old the frame on the embedding box. Insert the hinge that it is supplied with the product in the embedding box, as shown in the drawing. To hold the frame on the embedding box, insert the hinge in the housings arranged for this purpose in the frame, as shown in the drawing.
  • Page 11 DOOR PANEL INSTALLATION lug the push buttons with the connection cable RAP-610D. Use the connection cable RAP-610D, for the connection of the push buttons between the sound module and the push buttons module EL610D and between push buttons modules EL610D, when the distance between modules to connecting is greater due to the composition of the door panels.
  • Page 12 DOOR PANEL INSTALLATION escription CN7 Bus Nexa connector. The connector CN7 Bus Nexa is located at the upper right side of the back of the sound module. Insert the connection cable that it is supplied with the module in the CN7 connector of the sound module and the other end of the connection cable in the module with connector Bus Nexa.
  • Page 13 DOOR PANEL INSTALLATION escrip tion illumination leds The door panel illumination leds, will turn on during call and communication progresses. Allowing us to see from apartment´s monitor the person who has called. Only EL632 /R5 sound module . ) escrip tion visual indications leds Visual indications on the door panel for people with impaired hearing: - While calling: The led...
  • Page 14 DOOR PANEL INSTALLATION escription of the SW1 configuration dip-switch of the sound module. The SW1 configuration dip-switch is located at the upper left side of the back of the module. For dip switch settings, use the tool that is supplied with the sound module.
  • Page 15 DOOR PANEL INSTALLATION inal adjustments. If after starting the system it 's considered that the audio volume isn 't correct, proceed with the necessary adjustments as shown in the drawing lose the frame. Once finished the works of wiring, configuration and final adjustments, fix the frame in the embedding box with the supplied screws.
  • Page 16 DOOR PANEL INSTALLATION oor panel assembly. In assemblies of a single door panel, it is ready from factory to be mounted. If the door panel to installing is of more than one module it will be necessary make some adjustments to join a door panel with other one.
  • Page 17 DIN-963 IMPORTANT: - The lock release must be of (Golmar) 12Vd.c or a.c. (See page 125 (a.c lock release) and pages 123, 127-130 (d.c lock release). - A varistor is supplied with the sound module. In case to connect an a.c. lock release,...

  • Page 18: Monitor Description

    MONITOR DESCRIPTION escription of the Tekna R5 Col SU-R5 monitor REF. TEKNA R5 COL SU-R5 CODE 11742 0 5 4A v.xx 00000000000 INTER SLAVE MASTER CODE ATENCIÓN ESCALERA PISO PUERTA Alta tensión. No abrir la tapa. Manipular sólo por personal STAIR FLOOR DOOR...

  • Page 19: End Of Line Resistor

    MONITOR DESCRIPTION escription of the identification label REF. For an easiest repair, replacement or increasement TEKNA R5 COL SU-R5 of the existing monitors, fill the identifying label CODE information 11742 0 5 4A v.xx MASTER: master monitor SLAVE: slave monitor 00000000000 INTER: N ot used...

  • Page 20: Monitor Connector Description

    MONITOR CONNECTOR DESCRIPTION escription of the RCTK monitor connector. 50mm. ( ) * 50mm. ( ) * Colocar la parte superior de la regleta a 1,60m. del suelo. Place the top part of the monitor connector at 1,60m. from the floor. ( ) * Distancia mínima entre los laterales de la regleta y cualquier objeto debe ser de 5cm.

  • Page 21: Monitor Installation

    MONITOR INSTALLATION ix the monitor connection block to the wall. Avoid placing the monitor near sources of heat, in dusty locations or smoky environments. To install the monitor directly over the wall, drill two holes of Ø6mm and use the supplied screws. The upper part of the monitor connection block must placed at 1.60m height.

  • Page 22: Programming

    MONITORS PROGRAMMING rogramming the Tekna R5 Col SU-R5 monitors. Locate the configuration dip switch placed at the upper left side of the back of sound module and set number 2 to ON as described on page The door panel will emit a tone which indicates that it's in programming mode. In systems with more than one door panel, the programming process shall be done on the master door panel only.
  • Page 23 TEKNA TELEPHONE DESCRIPTION escription of the T- 30/R5 SU-R5 telephone. Telephone handset. Speaker grille. Microphone hole. Subjection hole. Telephone cord connectors. Function push button. Hook switch. unction push button. With the handset lifted, a normal call can be made to the master porter's exchange.

  • Page 24: Telephone Installation

    TELEPHONE INSTALLATION ix the telephone. It is necessary to open the telephone for wiring and fixing purposes. To open the telephone, insert a plain screwdriver into the slots and rotate it as shown in the drawing. Avoid placing the telephone near sources of heat, in dusty locations or smoky environments.

  • Page 25: Programming

    TELEPHONES PROGRAMMING rogramming the T- 30/R5 SU-R5 telephones. Locate the configuration dip switch placed at the upper left side of the back of the sound module and set number 2 to ON as described on page The door panel will emit a tone which indicates that it's in programming mode. In systems with more than one door panel, the programming process shall be done on the master door panel only.
  • Page 26 The remaining wires will be used according to the following chart: Door panel to be replaced Golmar R5 door panel (10) Max. 0.25 mm Lock release (P1) Independent (call line) It is essential to follow this order in all the installation points.
  • Page 27 INSTALLATION Coming from previous page Installation with D4L-R5R video distributors Before the change After the change D4L-R5R D4L-R5R D4L-R5R Microphone (5) Speaker (10) Ground (3) (P1) Lock release Independent (call lines) Install a junction box (not supplied with the unit) on each floor for connecting terminals "+", "-" and "A/D" of the installed equipment.

  • Page 28: Power Supply And Lock Release

    INSTALLATION ower supply and lock release. The power supply's position in the installation and the way it's connected to the system can affect its performance. Pay careful attention to this point in order to obtain maximum performance from the video door entry system. We will normally come across the following possibilities: If the conductors between door panel-power supply use a conduit independent of the rest of the installation:...
  • Page 29 If the riser wiring shows clear signs of deterioration or does not comply with the minimum requirements (see page ), then the installation riser must be replaced. For this, Golmar recommends using the cable. If the branch connections to the apartments are in good RAP-8415 condition then their replacement will not be necessary.
  • Page 30 INSTALLATION loor distribution with D4L-R5 distributor. Distribution: We will situate one or more Before the change D4L-R5 video distributors on each floor To the next floor (one for each 4 monitors). We will cut all the independent call lines coming from the door panel (currently connected to ground) and we will connect them to the distributor's To the...
  • Page 31 INSTALLATION loor distribution with D4L-R5R distributor. Distribution: We will situate one or more Before the change D4L-R5R video distributors on each floor To the next floor (one for each 4 monitors) and a junction box for connection wires '+', '-', 'A/D' and its later branch to the installed equipment.
  • Page 32 1 Floor Tekna R5 SU-R5 Tekna R5 SU-R5 R. Line R. Line D4L-R5 VD1+ VD1- OUTPUT VD4- VD4+ VD2+ VD2- INPUT VD3- VD3+ Vista Nexa door panel FA PLUS/C rev. 938072 230 110 0 CV1 +12 Lock release Vd.c. Main...
  • Page 33 Golmar Vista PLUS (10) Max. 0.25mm ock release (P1) Independent (call line) = Master. = Slave. Vista Nexa door panel FA PLUS/C rev. 938072 230 110 0 CV1 +12 To the next Lock release door panel/s Vd.c.
  • Page 34 Tekna R5 SU-R5 R. Line R. Line D4L-R5 VD1+ VD1- OUTPUT VD4- VD4+ VD2+ VD2- INPUT VD3- Vista Nexa door panel VD3+ FA PLUS/C TF104 rev. 938072 230 110 0 ~ ~ ~ CV1 +12 Main Lock release Va. . Main Important: Place the varistor supplied with the sound module on the lock release terminals directly to ensure a proper system operation.
  • Page 35 Audio to be replaced Golmar Vista PLUS (10) Max. 0.25mm Lock release (P1) Independent (call line) = Master. = Slave. Vista Nexa door panel FA PLUS/C TF104 rev. 938072 230 110 0 ~ ~ ~ CV1 +12 Main Lock release Va.c.
  • Page 36 R. Line in the last one. D4L-R5R Vout Junction Box 1 Floor Tekna R5 SU-R5 Tekna R5 SU-R5 R. Line R. Line D4L-R5R Vout Junction Box Vista Nexa door panel FA PLUS/C rev. 938072 230 110 0 CV1 +12 Main...
  • Page 37 Golmar Vista PLUS udio to be replaced (10) Max. 0.25mm ock release (P1) Independent (call line) = Master. = Slave. Vista Nexa door panel FA PLUS/C rev. 938072 230 110 0 CV1 +12 To the next Lock release door panel/s Vd.c.
  • Page 38 Top Floor T- 30/R5 SU-R5 T- 30/R5 SU-R5 A/D SA A/D SA 1 Floor T- 30/R5 SU-R5 T- 30/R5 SU-R5 A/D SA A/D SA Vista Nexa door panel FA PLUS/C rev. 938072 230 110 0 CV1 +12 Lock release Vd.c. Main...
  • Page 39 Golmar Vista PLUS udio to be replaced (10) Max. 0.25mm ock release (P1) Independent (call line) = Master. = Slave. Vista Nexa door panel FA PLUS/C rev. 938072 230 110 0 CV1 +12 To the next Lock release door panel/s Vd.c.

  • Page 40: Optional Connections

    OPTIONAL CONNECTIONS arallel monitor with D4L-R5 distributor. If a parallel monitor is installed in an apartment, then an additional power supply must be installed as close as possible to the distributor. The positive originating from the door panel/power supply must not supply the distributor on that floor, it should continue to the following floors, if any. The ground of both power supplies must be linked.
  • Page 41 OPTIONAL CONNECTIONS arallel monitor with D4L-R5R distributor. If a parallel monitor is installed in an apartment, then an additional power supply must be installed as close as possible to the distributor. The positive originating from the door panel/power supply must not supply the distributor on that floor, it should continue to the following floors, if any. The ground of both power supplies must be linked.
  • Page 42 OPTIONAL CONNECTIONS arallel telephone. The installation of a parallel telephone does not require additional power. The total number of elements per apartment (monitors, telephones, call repeaters, REMEMBER: etc.) must never exceed two units. With D4L-R5 distributor Parallel telephone Tekna R5 SU-R5 Tekna R5 SU-R5 T- 30/R5 SU-R5...
  • Page 43 OPTIONAL CONNECTIONS partment with telephone. If an apartment does not desire a video system monitor, then a T- 30/R5 SU-R5 telephone can be installed using just 3 wires. It is recommended not to cut the 2 extra wires in case a monitor needs to be installed in the future.
  • Page 44 OPTIONAL CONNECTIONS xternal lock release activation. The lock release can be activated at any moment by using an external push button, that must be connected between 'CV1' and 'CV2' of the door panel. This function will allows to exit from the building being not necessary the use of a key. d.c.

  • Page 45: Troubleshooting Hints

    TROUBLESHOOTING HINTS An easy way to check that the system is working properly is to disconnect the wiring from the door panel and to check the monitor/telephone directly connected to the sound module short circuit between different terminals of the installation will never damage the connected systems.
