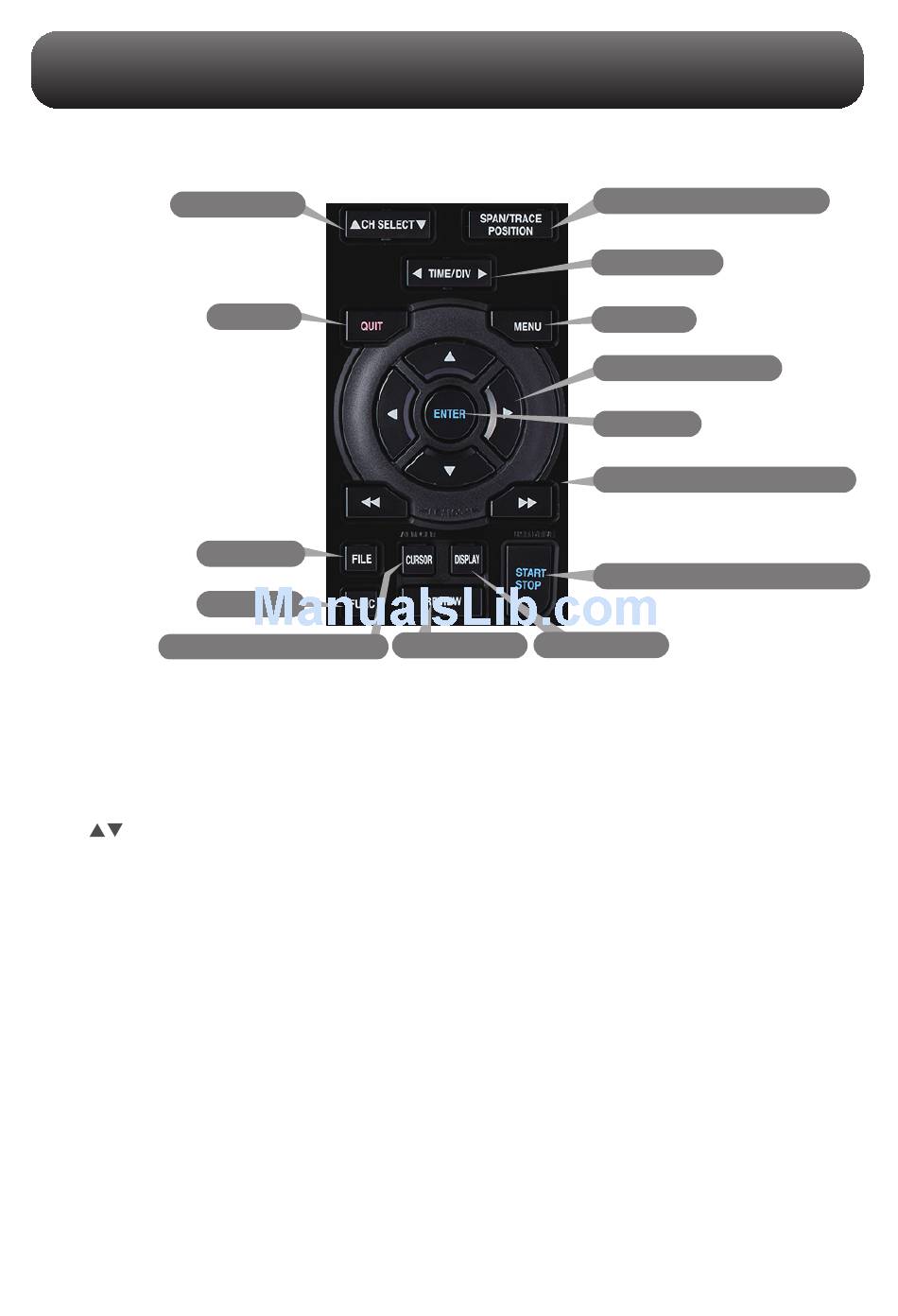

Descriptions of the Control Panel Keys

This section describes key operation.
(1) CH SELECT
(12) CURSOR
1
. CH SELECT
Moves CH and item in monitor display.
Use keys of CH SELECT to move up and down.
2
. SPAN/TRACE/POSITION
Switches the information in the monitor display.
This is used to change the settings related to waveform.
3
. TIME/DIV
Press this key to change the time axis display width.
4
. MENU
Press this key to open the setting window. Each time you press the key, the setting window
changes as follows.
(5) QUIT
(13) FILE
(14) FUNC
(ALARM CLEAR)
AMP→DATA→DISP→TRIG→I/F→OTHER
(11) DISPLAY
(10) REVIEW
(2) SPAN/TRACE/POSITION
(3) TIME/DIV
(4) MENU
(6) DIRECTION KEYS
(7) ENTER
(8) FAST FORWARD
(KEY LOCK)
(9) START/STOP
(USB DRIVE MODE)
6
