9. Clock display
Displays the current date and time.
For details on date and time settings, refer to "3.5 Setting Menus" - "(6) OTHER settings".

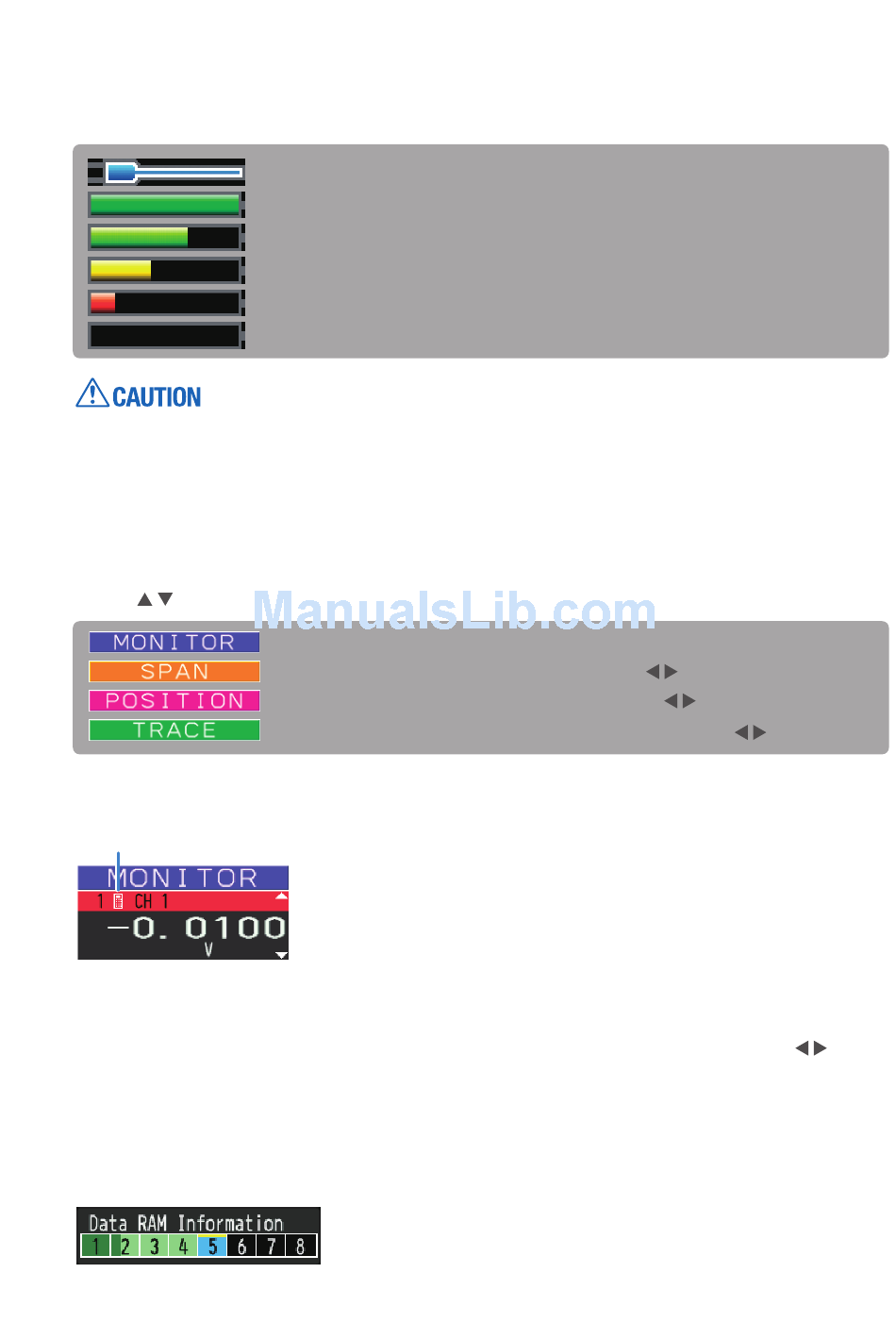

10. AC/Battery status indicator
•
Data capture automatically stops when the remaining battery power drops to 10% or below during.Auto Save will
be performed even when Auto Save is not set while data is being captured to the internal RAM.
•
The power is automatically turned off when the remaining battery power is 0%.
•
Use the remaining battery display only as a reference.
This indicator does not guarantee the exact operating time of a battery.
11. Digital display area
Displays the input value of each channel and span. Use the [SPAN/TRACE/POSITION] keys to switch the display.
Use the keys to select the channel you want to activate (enlarged display).
For details, refer to "3.2 Key Operation" - "(2) SPAN/TRACE/POSITION".
As described below, the CH indicating the calculation mark is the channel which calculation between the CHs is
enabled (On).
Calculation mark
12. Quick settings
The settings of the sampling interval and the division of waveform display can be changed. Use the
activate the Quick setting and the left/right keys to change values.
* The "SAMPLE" item cannot be changed during data capture.
13.
Internal RAM information
Displays the status of the internal RAM. The status of the block can be judged by the color of each block.
For the number of blocks, set the division number by "memory block division".
: Running on AC or DC power supply.
: Running on battery. The remaining battery power is 100 to 91%.
: Running on battery. The remaining battery power is 90 to 61%.
: Running on battery. The remaining battery power is 60 to 31%.
: Running on battery. The remaining battery power is 30 to 11%.
: Running on battery. The remaining battery power is 10% or below.
: Displays the input value.
: The span of the active channel can be changed using the
: The position of the active channel can be changed using the
: The ON or OFF of the active channel display can be changed using the
keys.
keys.
keys.
keys to
