Summary of Contents for Chauvet MVP Driver

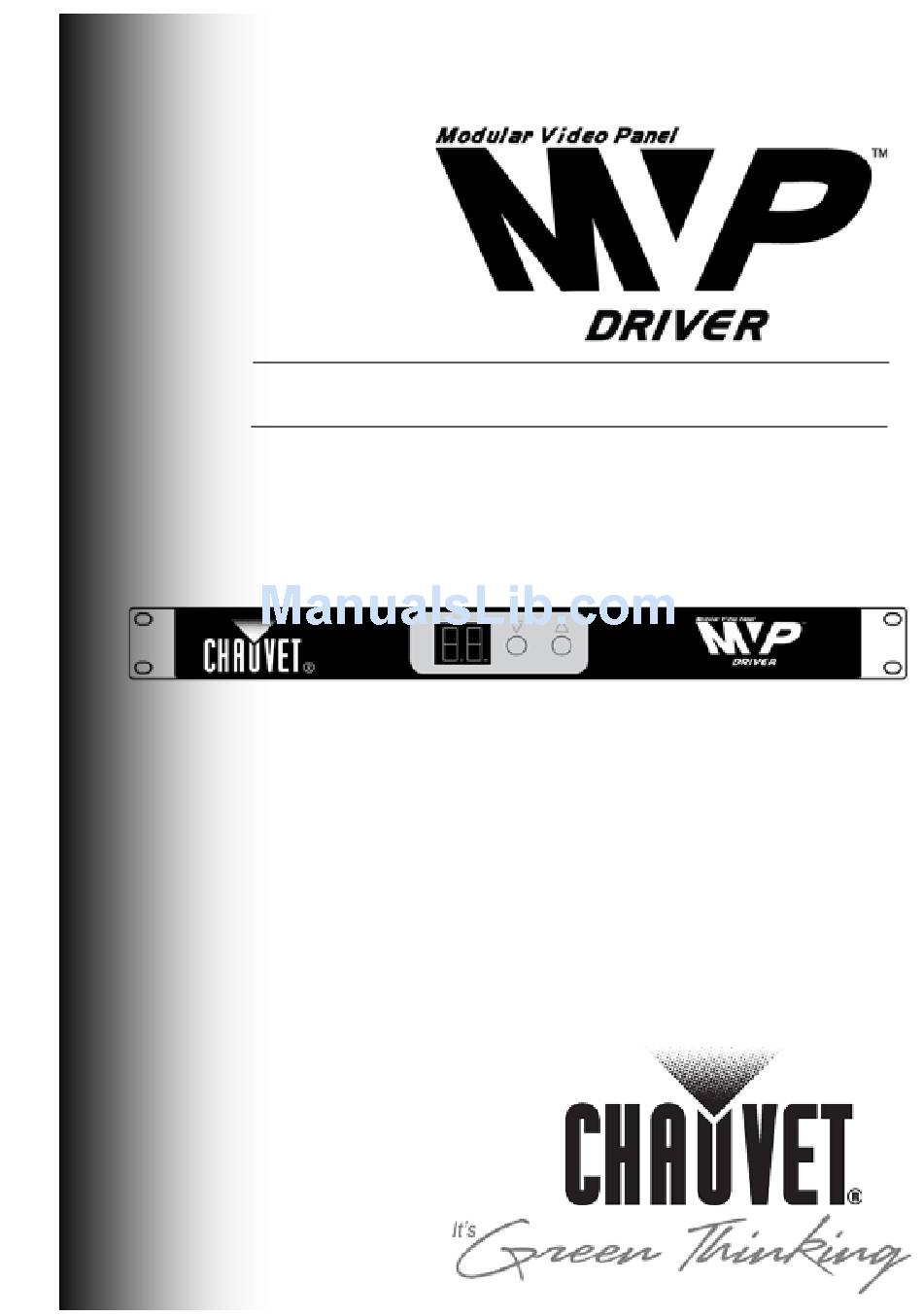

- Page 1 Quick Reference Guide...
-
Page 2: About This Guide
Guide product’s connection, mounting, and installation information. · This Quick Reference Guide DOES NOT replace the product’s User Manual, which you can download from the CHAUVET® website (www.chauvetlighting.com). · You must read ALL the disclaimers and Safety Notes in this Guide, as well as those in the product’s User Manual before... - Page 3 One Quick Reference Guide · Four Rubber Feet Features · Required to operate the CHAUVET® MVP™ Video Wall System · Provides MVP™ Video Wall System complete signal backup or increased screen resolution · Enables MVP™ panel addressing, and media playback and configuration ·...
- Page 4 MVP™ Driver QRG Product The MVP™ Driver is required to operate the CHAUVET® MVP™ Video Wall System. This Driver provides the interface between any Description DVI video source and all MVP™ video system components via the LED Studio software application.
-
Page 5: Product Overview
MVP™ Driver QRG Product Not shown here are the rubber feet that can be attached to the MVP™ Driver to ensure proper rack mounting and space. These feet Overview are included with the Driver in separate packaging. Front Panel Brightness control Back Panel (refer to the Back Panel Connections section of this Guide for detailed information) Page 5 of 12... - Page 6 MVP™ Driver QRG Product Dimensions: 9.06x 18.98 x 1.73 in (230 x 482 x 44 mm) Dimensions Front Panel 1.73 in (44 mm) 18.98 in (482 mm) Rubber feet attached Side View 9.06 in (230 mm) Page 6 of 12...
- Page 7 MVP™ Driver QRG AC Power This product has an auto-ranging power supply that works with an input voltage range of 100~240 VAC, 50/60 Hz. Video Video Source (Input): DVI-D Input/Output Video Output: etherCON® (2) Display Refresh Rate: 2,000 Hz (flicker free) Video Refresh Rate: 60 Hz Mounting...
- Page 8 MVP™ Driver QRG Back Panel Disconnect power before connecting other equipment to the MVP™ Driver. Connections Number Description DIP SWITCHES addresser that can address up to 4 Drivers. Up = Off; Down = On. You will identify each Driver’s Sender address within the LED Studio software application.
- Page 9 MVP™ Driver QRG Calculating The MVP™ Driver provides two signal output connections: U (Main) and D (Backup). The number of panels will differ based on whether the Number you are using the U output as the Main and the D output as a backup, of Panels or alternately using both outputs separately to increase the screen resolution.
- Page 10 MVP™ Driver QRG Using Both For a resolution of 2048 x 640 max. (doubling the 1024 and increasing the 512 to 640), using the pixel ratio of the panel, Signal Outputs calculate the number of panels as follows. to Increase Screen MPV™...
- Page 11 MVP™ Driver QRG Manually The front panel enables you to adjust the brightness of your video panels. Initially, brightness is defined in LED Studio. The Adjusting brightness default value range is 1 – 16. You can change the Brightness brightness range in LED Studio, and manually adjust. Use the Up and Down buttons on the front panel to manually override the brightness setting defined in LED Studio.
- Page 12 Follow their instructions to request support or to return a product. Visit our Web site for contact details. MVP™ Driver QRG – Rev. 07 © Copyright 2011 CHAUVET® All rights reserved Printed in the P. R. C. Page 12 of 12...
