Summary of Contents for Chauvet Mini Strobe Led
-

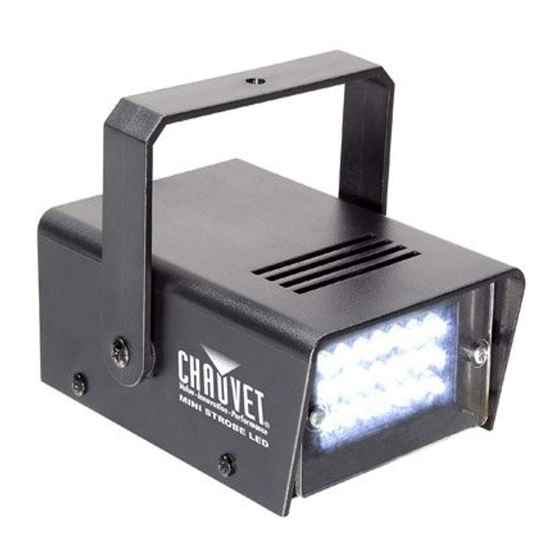

Page 1: User Manual
Snapshot Use on Dimmer Outdoor Use Sound-Activated Master/Slave Voltage Switch Replaceable Fuse User-Serviceable User Manual 5200 NW 108th Avenue, Sunrise, FL 33351 U.S.A. (800) 762-1084 – (954) 577-4455 FAX (954) 929-5560 www.chauvetlighting.com... -
Page 2: Table Of Contents
..................................... 5 OWER ...................................... 5 OUNTING Orientation..................................5 Rigging ....................................5 4. Appendix .............................. 6 ................................... 6 ENERAL AINTENANCE ..................................6 ETURN ROCEDURE ......................................6 LAIMS ................................7 ECHNICAL PECIFICATIONS ....................................7 ONTACT Mini Strobe LED User Manual Rev. 3... -
Page 3: Before You Begin
1. B EFORE EGIN What is Included · · 1 x Mini Strobe LED 1 x User Manual · 1 x Warranty Card Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 4: Introduction
Turn the strobe speed adjustment knob clockwise to increase the strobe speed. Turning the speed adjustment fully counter-clockwise does NOT turn off the fixture. It turns it to the lowest setting. It is NOT possible to turn the strobe OFF when plugged into power. Mini Strobe LED User Manual Rev. 3... -
Page 5: Setup
The fixture includes a mounting yoke to which a rigging clamp can be attached. You must make sure the clamp is capable of supporting the weight of this fixture. You can order “C” and “O” clamps from any CHAUVET® dealer or distributor (CLP-02, CLP-10 recommended). -
Page 6: Appendix
#). Products returned without an RMA # will be refused. Call CHAUVET® and request an RMA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the customer’s responsibility. -
Page 7: Technical Specifications
LIGHT SOURCE LED ........................21 (white) 100,000 hrs. THERMAL Maximum ambient temperature ..................104° F (40° C) ORDERING INFORMATION Mini Strobe LED ......................MINISTROBELED WARRANTY INFORMATION Warranty ....................... 1-year limited warranty Contact Us Wo rl d Wi d e General Information CHAUVET®...
