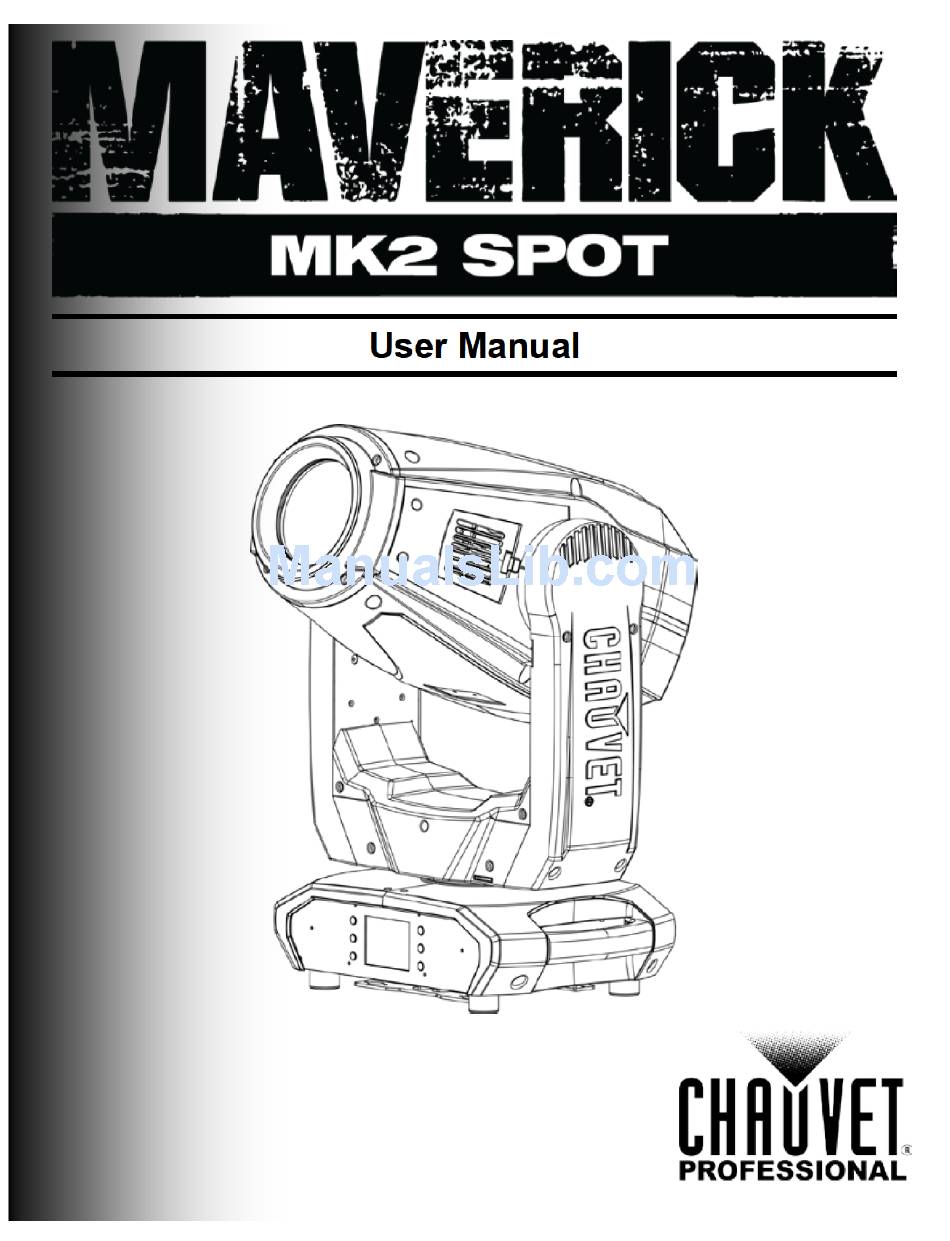

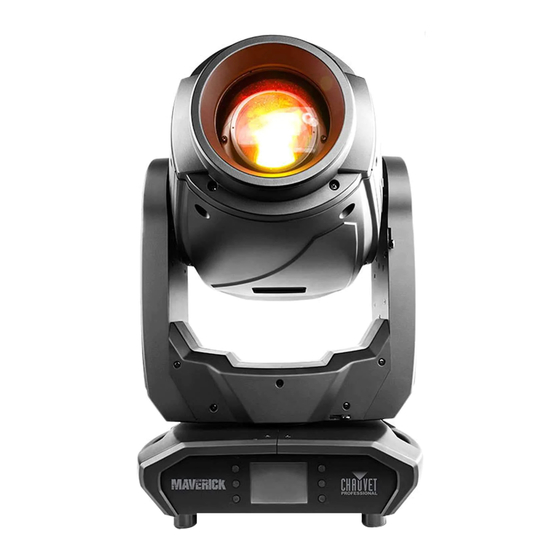

- Page 2 Maverick MKII Spot User Manual Rev. 4...
-
Page 3: Table Of Contents
Gobo Replacement ....................................27 5. Firmware Update ..............................28 6. Technical Information ............................31 Prod ct Maintenance ................................31 Error dication ..................................31 7. Technical Specifications ............................. 32 Re urns ..................................33 Contact Us ................................34 Maverick MKII Spot User Manual Rev. 4... -
Page 15: Operation
Operation Operating Settings Configuration The Maverick MK2 Spot has a home screen that shows the protocol mode, the IP address or DMX Home Screen address, the DMX personality, and the current product temperature. To see the home screen, press <MENU> repeatedly until it appears on the display. To set the starting address, set the Control Mode and then follow the instructions below: Start Address Press <MENU>... - Page 16 Operation Subnet and The Subnet and universe must be assigned through the product menu. To set the Subnet and Universe Universe do the following: Press <MENU> repeatedly until the Home Screen shows on the display. Press <ENTER>. Use <UP>, <DOWN>, <LEFT>, or <RIGHT> to select Network Setup, or touch the display where it says Network Setup.
-
Page 17: Personality
Operation Personality To set which DMX personality to use, do the following: Press <MENU> repeatedly until the Home Screen shows on the display. Press <ENTER>. Use <UP>, <DOWN>, <LEFT>, or <RIGHT> to select Personality, or touch the display where it says Personality. - Page 18 Operation Pan/Tilt Angle To set the range of motion the pan or tilt is permitted: Range Navigate to the Settings menu. Use <UP> or <DOWN> to select Pan Angle or Tilt Angle, or touch the display where it says the desired setting.
- Page 19 Operation Lock the Screen To lock the touchscreen control panel and menu buttons, do the following: Navigate to the Settings menu. Use <UP> or <DOWN> to select Lock Screen, or touch the display where it says Lock Screen. If using the buttons instead of the touchscreen, press <ENTER>. Use <UP>, <DOWN>, <LEFT>, or <RIGHT>...
- Page 20 Operation Fan Speed To set the speed of the fans, do the following: Navigate to the Settings menu. Use <UP> or <DOWN> to select Fans, or touch the display where it says Fans. If using the buttons instead of the touchscreen, press <ENTER>. Use <UP>, <DOWN>, <LEFT>, or <RIGHT>...
-
Page 21: Test Mode
Operation Test Mode Auto Test To perform an auto test of the Maverick MK2 Spot functions, follow the instructions below: Press <MENU> repeatedly until the Home Screen shows on the display. Press <ENTER>. Use <UP>, <DOWN>, <LEFT>, or <RIGHT> to select Test, or touch the display where it says Test. -
Page 22: Offset Mode
Operation The Offset mode provides fine adjustments for the home position of all the moving parts in the Offset Mode optical path as well as the pan and tilt movements. This way, when in their home position, the moving parts do not show any border or reduce the light output. 1. - Page 23 Operation ZOOM 1. Use <UP> or <DOWN> to select ZOOM. 2. Press <ENTER>. 3. Use <UP> or <DOWN> to increase or decrease the starting value, from 000–255. 4. Press <ENTER>. PRISM 1. Use <UP> or <DOWN> to select PRISM. 2. Press <ENTER>. 3.
-
Page 36: Re Urns
· If you are located in Benelux, contact Chauvet Europe BVBA. If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local distributor. See www.chauvetlighting.com for distributors outside the U.S., UK, Ireland, Mexico, or Benelux.
