Define The Alphacom / Sip Routing; Create Prefix Number; Update The Exchange - Stentofon AudioCodes MP-114 Configuration Manual

A100K10333 v.5.5

2.2.2 Define the AlphaCom / SIP routing

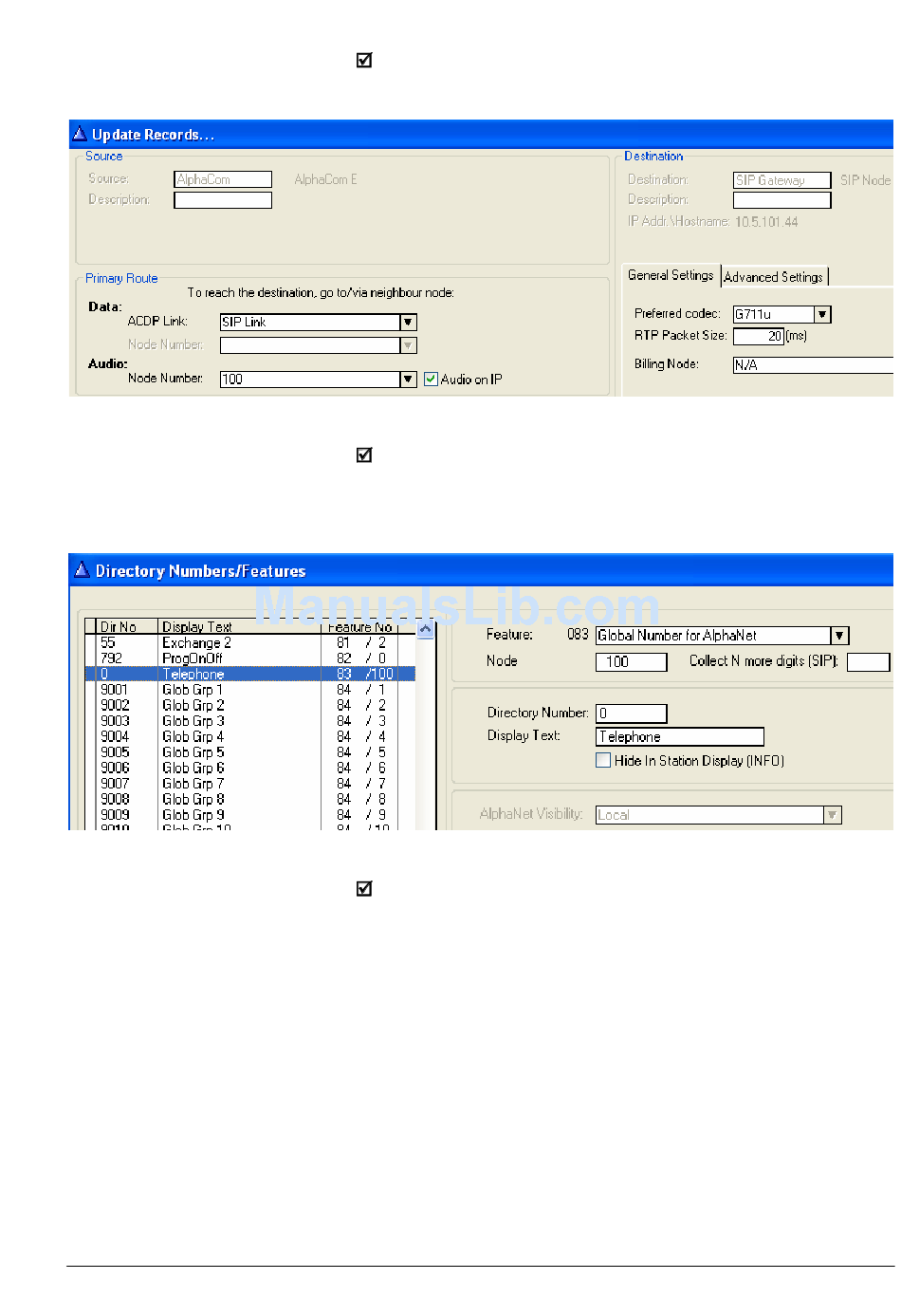

In Exchange & System > Net Routing use the Insert button to
create a route between the AlphaCom and SIP Gateway. Set
Preferred codec to G711u and RTP Packet Size to 20 ms.

2.2.3 Create Prefix number

The directory number (prefix) used to access the telephone line must
be programmed in the AlphaCom directory table with feature 83 and
Node = SIP Trunk node number (100 in this example). In the
example below the default directory number 0 has been modified to
be used as a prefix.

2.2.4 Update the exchange

Log on to the exchange and update the exchange by pressing the
SendAll button. Reset the exchange after the send operation is
finished.
Configuration Guide
AudioCodes MP-114/118
Page 7
