Page 6

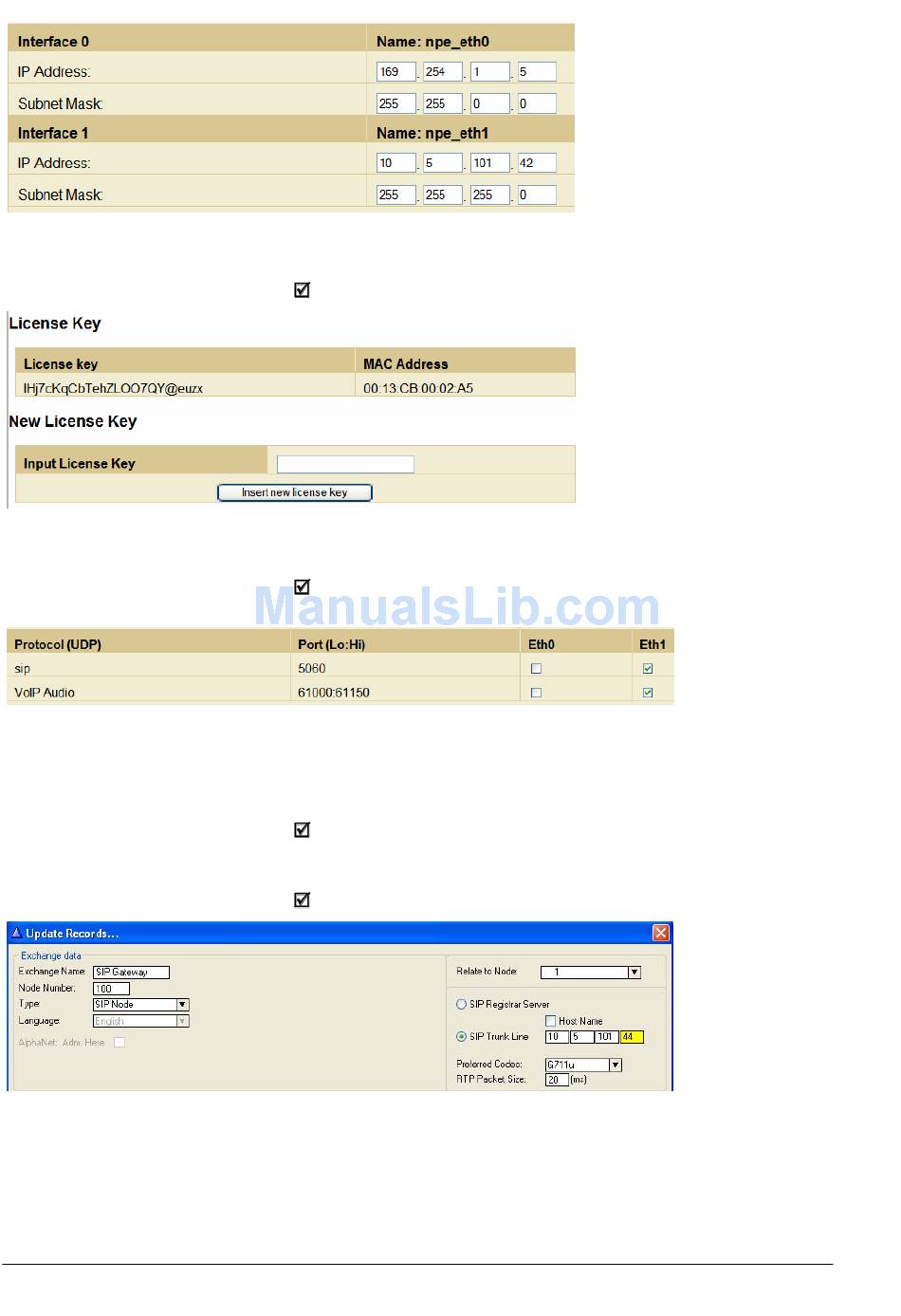

2.1.2 Insert SIP Trunk licenses

Log on to AlphaWeb and install the SIP Trunk license.

2.1.3 Firewall (filter) settings

Enable the SIP protocol and VoIP Audio on the desired Ethernet port
(default enabled for Ethernet port1).

2.2 AlphaPro Configuration

2.2.1 Create a SIP Trunk Node

From the AlphaPro main menu, use the '+' button next to the 'Select
Exchange' dropdown list to create a new exchange.
The exchange type must be set to 'SIP Node'.
Set the parameters as follows:
The SIP Trunk IP address must be identical to the IP address of the SIP
Gateway.
Note: If the AlphaCom is configured with a SIP Registrar node in addition to
the SIP Trunk node, the SIP Registrar node must have a lower node
number than the SIP Trunk node.
