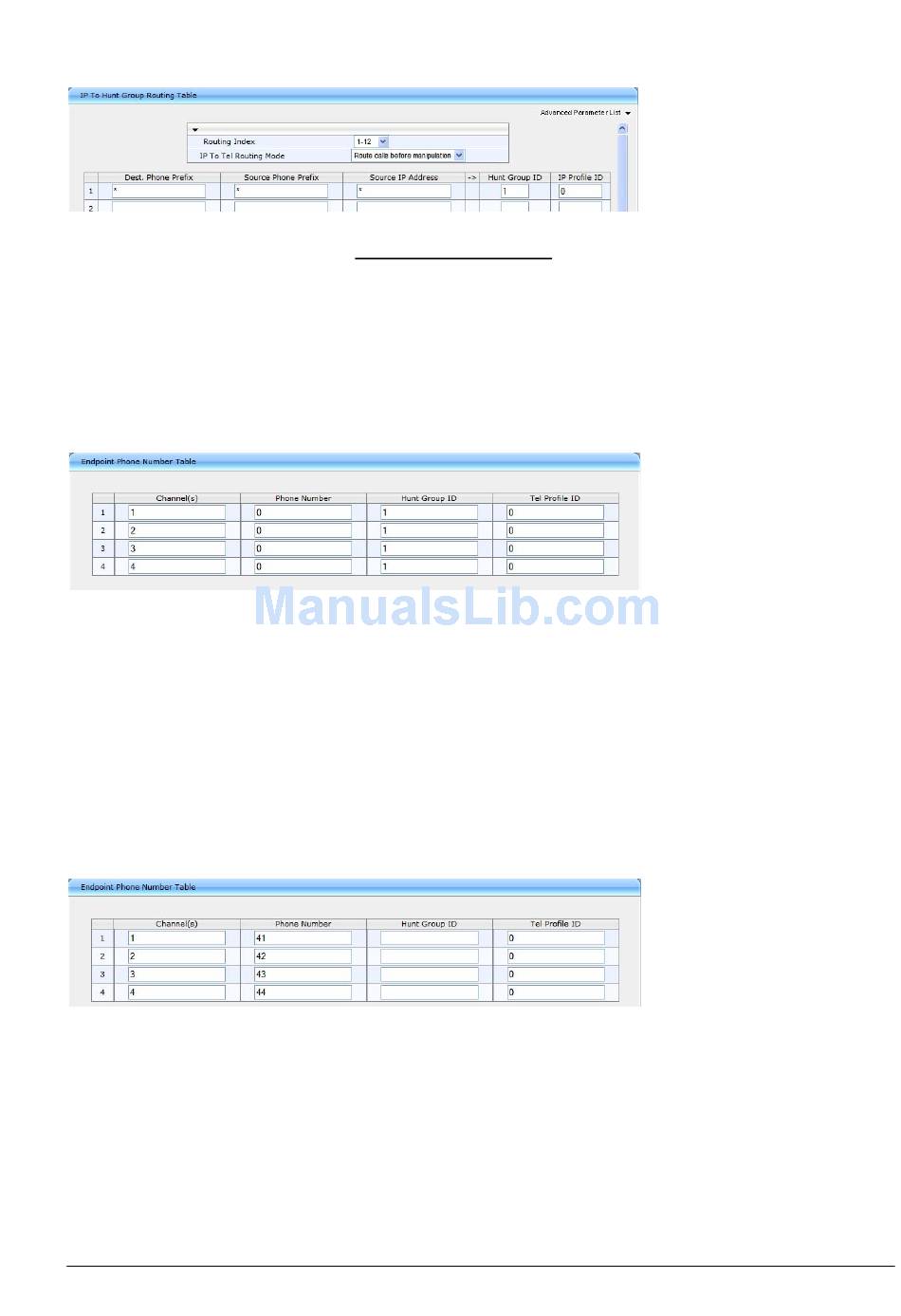

In the example below the call is routed to group hunt ID 1.
(Configuration tab > Protocol Configuration menu > Routing Tables
submenu > IP to Trunk Group Routing page item)
Endpoint Phone Number
In the 'Endpoint Phone Number Table' page the FXO lines are linked to
the prefix in AlphaCom and to the hunt group ID.
(Configuration tab > Protocol Configuration menu > Endpoint
Number submenu > EndPoint Phone Number page item).
In the example below all four FXO lines belong to Hunt Group ID 1.
When dialing 0 on an intercom station the first available line will be
granted. Directory number 0 must be programmed in the AlphaCom
directory table with feature 83/<node>. See paragraph 2.2.3.
If there are unused lines, leave the fields for that line blank.

3.7.2 FXO Line Select

In installations with different types of equipment connected to the
various FXO lines the user must be able to select which FXO port to
use. On a ship, for instance, there could be a mix of shore lines, GSM
interface and Satellite lines.
Line selection is achieved by assigning each port a unique Phone
Number in the Endpoint Phone Number Table. These directory
numbers must be programmed in the AlphaCom directory table with
feature 83/<node>. See paragraph 2.2.3.
Replace "0" with four lines, "41" to "44".
In this table the four FXO lines are selected by dialing 41 – 44
If there are unused lines, leave all fields for that line blank.
Group hunt is not used in this call mode, and the IP to Hunt Routing
Table must be empty.
