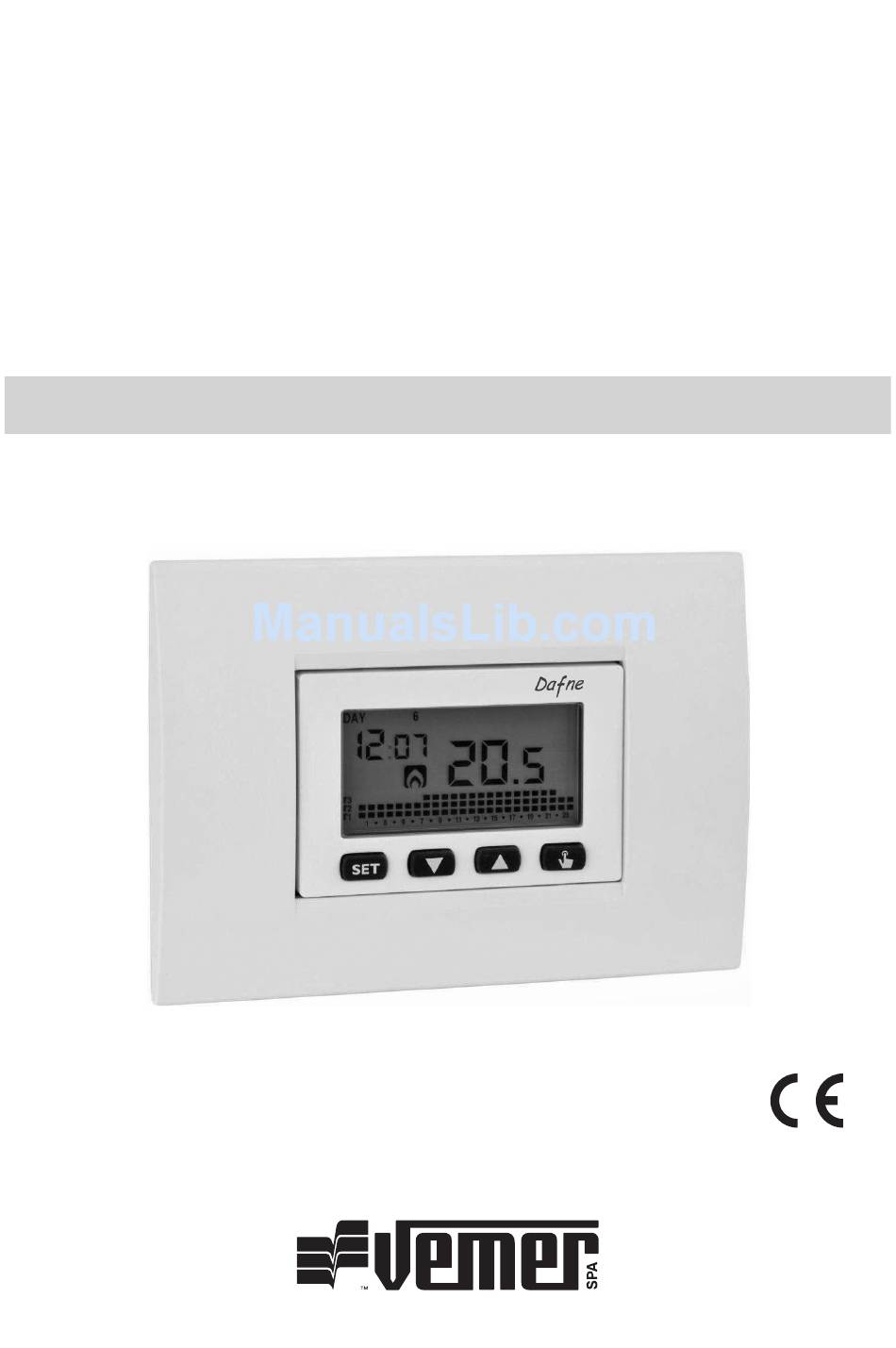

  • Page 1 Digital chronothermostat Dafne User manual...
  • Page 3 Page ■ Timings: what they are Page ■ Device reset Page ■ Battery replacement Page ■ Reference Standards Page ■ Default values Page ■ Winter preset programs Page ■ Summer preset programs Page - 1 - Dafne chronothermostat, user’s manual...
  • Page 4 • Battery or 230V power supply • 7 programs available for heating operation 7 programs available for cooling operation • Flush-mounting in three modules box (503 type) • Weekly programming with 3 settable temperature levels - 2 - Dafne chronothermostat, user’s manual...
  • Page 5: Connection Diagrams

    CONTENT OF THE PACKAGE covers mount A mount B plastic plastic elements elements mount AIR chronothermostat covers and plastic elements are available in white and grey anthracite colours CONNECTION DIAGRAMS Dafne 230 230V~ Dafne - 3 - Dafne chronothermostat, user’s manual...
  • Page 6: Mounting

    BATTERY DAFNE MOUNTING Bticino Living series, Light, Light Tech, Livinglight, Axolute Vimar Eikon series, Eikon Evo, Plana Ave S44 series – ABB Mylos series - 4 - Dafne chronothermostat, user’s manual...
  • Page 7 DAFNE 230 MOUNTING Bticino Living series, Light, Light Tech, Livinglight, Axolute Vimar Eikon series, Eikon Evo, Plana Ave S44 series – ABB Mylos series - 5 - Dafne chronothermostat, user’s manual...
  • Page 8 BATTERY DAFNE MOUNTING ABB Chiara series Vimar Arké series - 6 - Dafne chronothermostat, user’s manual...
  • Page 9 DAFNE 230 MOUNTING ABB Chiara series Vimar Arké series - 7 - Dafne chronothermostat, user’s manual...
  • Page 10 BATTERY DAFNE MOUNTING Remove the cogs Gewiss Chorus series - 8 - Dafne chronothermostat, user’s manual...
  • Page 11 DAFNE 230 MOUNTING Remove the cogs Gewiss Chorus series - 9 - Dafne chronothermostat, user’s manual...
  • Page 12 BATTERY DAFNE MOUNTING Remove the cogs Bticino Matix series - 10 - Dafne chronothermostat, user’s manual...
  • Page 13 DAFNE 230 MOUNTING Remove the cogs Bticino Matix series - 11 - Dafne chronothermostat, user’s manual...
  • Page 14 BATTERY DAFNE MOUNTING Vimar Idea series - 12 - Dafne chronothermostat, user’s manual...
  • Page 15 DAFNE 230 MOUNTING Vimar Idea series - 13 - Dafne chronothermostat, user’s manual...
  • Page 16 BATTERY DAFNE MOUNTING * Note: if the box extension is not present (adapter which increases the depth of the flush-mounting box) we recommend you using the frame for Livinglight AIR installation Bticino Livinglight AIR series - 14 - Dafne chronothermostat, user’s manual...
  • Page 17 DAFNE 230 MOUNTING * Note: if the box extension is not present (adapter which increases the depth of the flush-mounting box) we recommend you using the frame for Livinglight AIR installation Bticino Livinglight AIR series - 15 - Dafne chronothermostat, user’s manual...
  • Page 18 BATTERY DAFNE MOUNTING AXO AIR AXO AIR mount not included in the package. Bticino Axolute AIR series - 16 - Dafne chronothermostat, user’s manual...
  • Page 19 DAFNE 230 MOUNTING AXO AIR AXO AIR mount not included in the package. Bticino Axolute AIR series - 17 - Dafne chronothermostat, user’s manual...
  • Page 20: Safety Warnings

    3 modules box (503 type) suitable for the temperature control in household. Two versions are available: ■ Dafne, with battery power supply and input for external contact with whom to switch on/to switch off the chronothermostat remotely (by telephone) ■ Dafne 230, with mains power supply These instruments perform actions of 1B type and are intended for operating in environments Pollution degree 2 and Overvoltage Category III (EN 60730-1).
  • Page 21: Technical Characteristics

    – battery life: 1 year – depleted batteries indication – charge reserve (for battery replacement): 1 minute • Power supply Dafne 230: – 230Vac (-15% ÷ +10%) 50/60Hz – maximum consumption: 6 VA / 230Vac – charge reserve (for blackout): 2 days about •...
  • Page 22: Display And Key

    ⑤ Manual operation activation ⑥ Load activation in winter /heating mode ⑦ Measured environment temperature ⑧ Program on graphic for the current day (in automatic operation) ⑨ Off operation ⑩ Depleted battery indication (batteries model only) - 20 - Dafne chronothermostat, user’s manual...
  • Page 23: Installation

    To clean the display use a soft, lint-free cloth, without using excess force. INSTALLATION • The chronothermostats of Dafne series are designed for flush-mounting in 3 modules box (503 type). • The programmable thermostat must be installed at a height at about 1.5 m above the floor, away from direct sunlight, away from doors, windows, heat sources, locations with excess or total lack of ventilation.
  • Page 24: Clock Setting

    Once all values are set, press for a long time (3 seconds) the key to exit the menu of the clock synchronisation. Seconds synchronisation Minutes setting Time setting Year setting Month setting Day setting - 22 - Dafne chronothermostat, user’s manual...
  • Page 25 The chronothermostat remains in off operation condition until when the hour is not inserted, ensuring in this way the maintainance of the antifreeze temperature (6°C). In this condition, pressing any key reactivates the menu of date/time insertion for another 30 seconds about. - 23 - Dafne chronothermostat, user’s manual...
  • Page 26: Programming Menu

    (30 seconds about). Inside this menu it’s also possible to modify the parameters for winter/ summer time change. The procedure is described in a detailed way in the chapter “Summer time change” on page 36. - 24 - Dafne chronothermostat, user’s manual...
  • Page 27: Programs Modification

    On field (3) 00:00 appears while on field (7) flashes the temperature level (T1, T2 or T3) set for that specific time (00:00). - 25 - Dafne chronothermostat, user’s manual...
  • Page 28 1. From the normal operation display, press for a long time the key until the symbol starts flashing on field (2) 2. Press briefly the key until the symbol flashes. Press the key to access the parameters modification. - 26 - Dafne chronothermostat, user’s manual...
  • Page 29 (30 seconds about). Attention: the set values of temperature must respect the condition: T1≤T2≤T3. In cooling mode T1 is not settable and equals off system. - 27 - Dafne chronothermostat, user’s manual...
  • Page 30: Timing Setting

    (hours or days). 4. The measurement unit starts flashing (h0ur or day). Press the keys to choose if it is a timing in hours (h0ur) or days (day). - 28 - Dafne chronothermostat, user’s manual...
  • Page 31: Advanced Functions Menu

    3. At this point the first parameter of the menu starts flashing: press the keys to modify the parameter and the key to confirm and to move to the next parameter. To exit the parameters modification press the key - 29 - Dafne chronothermostat, user’s manual...
  • Page 32 Regulation type (for heating mode only) For heating mode it’s possible to choose between on/off regulation (Reg 0) or proportional (rEg P ). For further information about regulation type see the chapter “Regulation type” on page 38. - 30 - Dafne chronothermostat, user’s manual...
  • Page 33 When the keyboard is locked, the chronothermostat performs all its functions using the set regulation parameters. If the keylock is active and one key is pressed, the display shows for a few seconds the - 31 - Dafne chronothermostat, user’s manual...
  • Page 34: Manual Operation

    If you want to change the setpoint (Tm) press the key and repeat the points 2 and 3. To go back to the automatic operation press for a long time the key (3 seconds about). - 32 - Dafne chronothermostat, user’s manual...
  • Page 35: Off Operation

    The default Toff is 6°C but it’s possible to modify this value by accessing the ADV menu (see “Antifreeze temperature” on page 31). To switch the device off press the key until the symbol is displayed (field (9)). - 33 - Dafne chronothermostat, user’s manual...
  • Page 36 3 seconds. Remotely switching off (battery powered model only) Dafne has an input for the connection to a clean contact to whom to connect for example a telephone dialler to switch on or to switch off the chronothermostat remotely with your own telephone.
  • Page 37: Backlighting Management

    BACKLIGHTING MANAGEMENT The chronothermostats of Dafne series have a backlit display with led. There are some differences between battery powered models and mains powered models. Battery Dafne The battery powered model has a backlighting of blue colour, which is activated only inside any menu of programming or if any key is pressed.
  • Page 38: Minimum And Maximum Values

    Sunday of October at 3 o’clock in accordance with Europe convention. However it’s possible to deactivate the automatic time change or to change the date or the hour of the time change. - 36 - Dafne chronothermostat, user’s manual...
  • Page 39 . The sequence requires the insertion of: i. day (1…7) of the week ii. the week of the month (first, second, third, fourth, last – LA) iii. the month (1…12) iv. the hour - 37 - Dafne chronothermostat, user’s manual...
  • Page 40: Regulation Type

    (30 seconds about). REGULATION TYPE The chronothermostats of Dafne series have two types of regulation: On/off regulation During on/off regulation the chronothermostat measures once a minute the environment temperature and it carries out the regulation on the basis of the following...
  • Page 41 To modify the regulation type, the differential value (on/off regulation), band and period (proportional regulation) see chapter “Regulation parameters” on page 31. - 39 - Dafne chronothermostat, user’s manual...
  • Page 42: Timings: What They Are

    Timed manual If you set a timing in manual status, this off status will be maintained until the end of the timing, operation will then switched to automatic mode. - 40 - Dafne chronothermostat, user’s manual...
  • Page 43 - manual modification of the operating mode - switching of digital input (for battery models only) - change of the operating logic from winter to summer (or viceversa) To set a timing, see chapter “Timing setting” on page 28. - 41 - Dafne chronothermostat, user’s manual...
  • Page 44: Device Reset

    Default values are indicated on page 44 of this manual. BATTERY REPLACEMENT The model Dafne (batteries) signals the status of depleted batteries through the symbol on (field (10)) and making the display to flash. In this status the regulation is always guaranteed, but it’s advisable to replace the batteries as soon as possible! (*)
  • Page 45: Reference Standards

    REFERENCE STANDARDS Compliance with Community Directives 2014/35/EU (LVD) 2014/30/EU (EMCD) is declared in reference to the harmonized standards: EN 60730-2-7, EN 60730-2-9 - 43 - Dafne chronothermostat, user’s manual...
  • Page 46: Default Values

    10’ 10’ password (deactivated) winter hour meter summer hour meter winter/summer time Summer: LAST DAY7 march 02:00 winter/summer time change Winter: LAST DAY7 october 03:00 activation delay 0’ 45’ 15’ 0’ timed operations - 44 - Dafne chronothermostat, user’s manual...
  • Page 47: Winter Preset Programs

    T1 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 - 45 - Dafne chronothermostat, user’s manual...
  • Page 48: Summer Preset Programs

    T1 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 - 46 - Dafne chronothermostat, user’s manual...
  • Page 52 Vemer S.p.A. I - 32032 Feltre (BL) Via Camp Lonc, 16 Tel +39 0439 80638 Fax +39 0439 80619 e-mail: info@vemer.it - web site: www.vemer.it 06-2017...
