Vemer Mithos Wi-Fi User Manual

Digital chronothermostat
Hide thumbs Also See for Mithos Wi-Fi:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Digital
Chronothermostat
Mithos Wi-Fi
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mithos Wi-Fi and is the answer not in the manual?

Questions and answers

Related Manuals for Vemer Mithos Wi-Fi

Summary of Contents for Vemer Mithos Wi-Fi

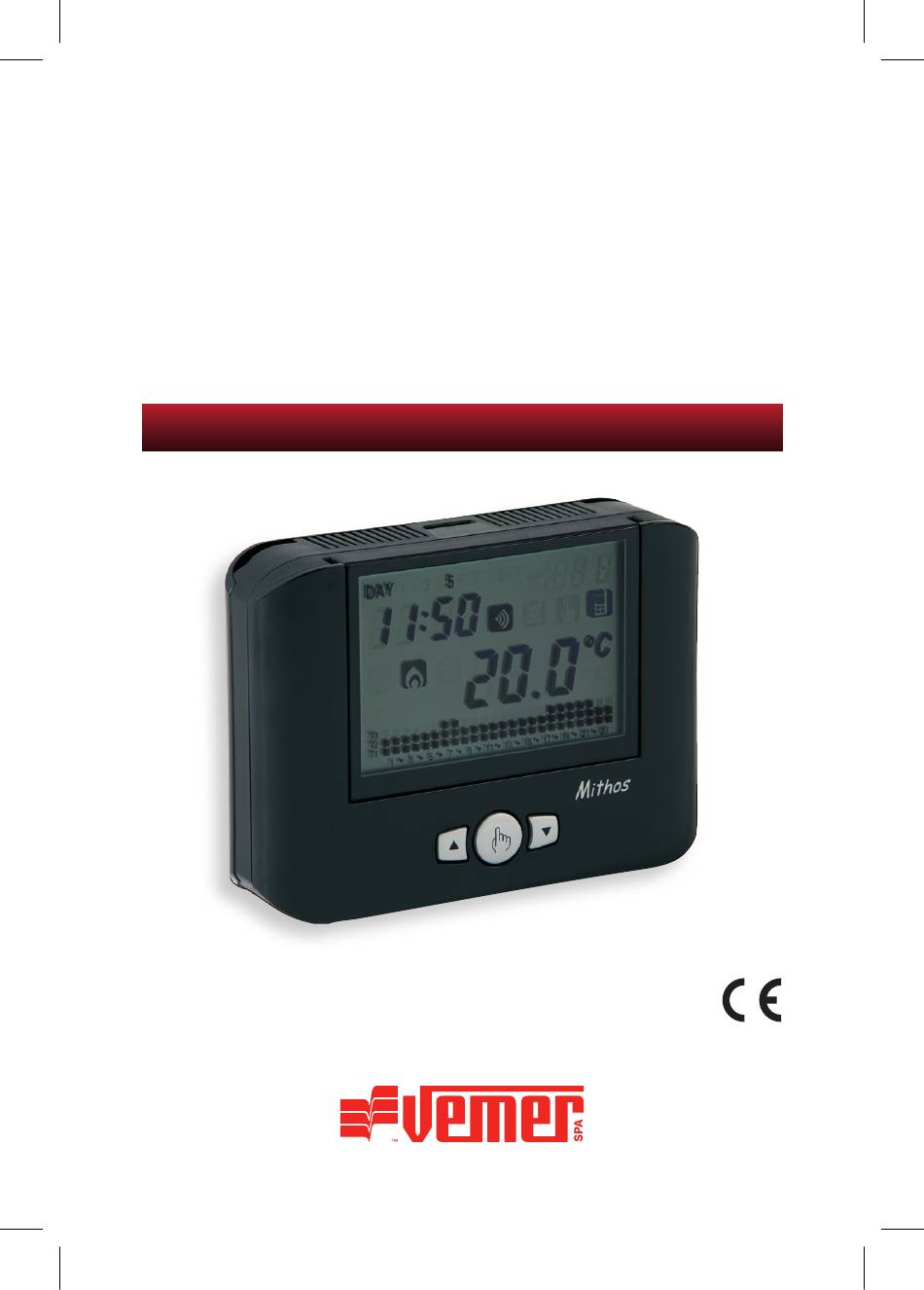

  • Page 1 Digital Chronothermostat Mithos Wi-Fi User Manual...

  • Page 3: Table Of Contents

    ■ Safety warnings Page ■ Technical characteristics Page ■ Control elements / display indications Page ■ Installation Page ■ Initial start-up of the Mithos Wi-Fi Page The app Page Off-line operation of Mithos Wi-Fi Page ■ Clock setting Page ■ Programs setting Page ■...
  • Page 4 Mithos Wi-Fi Digital Programmable thermostat • Comfort and control of consumptions are ensured both in winter and in summer (heating/air conditioning) • Power supply: 230 Vac (with backup battery) • Wall-mounting or coverage of the 503 box (3 modules) • Remote control through app for iOS systems and Android or from PC •...

  • Page 5: Dimensions

    DIMENSIONS CONNECTION DIAGRAM 230V ~ Input for X.Temp or DIG - 3 - Mithos Wi-fi Chronothermostat User Manual...

  • Page 6: Safety Warnings

    ■ The Mithos Wi-Fi is an electronic weekly programmable thermostat with wi-fi connection to manage your heating/cooling system. The integrated wi-fi module allows to connect the Mithos Wi-Fi to home router and so to internet. Once connected, it’s possible to program the Mithos Wi-Fi also when you are out of your home through app (available for iOS-Apple systems and Android) or via internet from pc/mac.
  • Page 7 25.0 20.0 24.0 MANUAL Regulation of temperature levels is subjected to the following condition: T1 ≤ T2 ≤T3. In summer mode, T1 cannot be set and corresponds to the air conditioning OFF. - 5 - Mithos Wi-fi Chronothermostat User Manual...

  • Page 8: Control Elements / Display Indications

    13) “ ” Key: instrument reset (according to the type of reset it’s followed by the press of another key) (the key is reachable only with a point) - 6 - Mithos Wi-fi Chronothermostat User Manual...
  • Page 9 20) “Air conditioning activation” Field 21) “Heating activation” Field 22) “Clock” Field 23) “Data in progress updatel” Field 24) “Connection to internet on” Field 25) “Unit of measurement” (°C only) Field 26) “Off” Field - 7 - Mithos Wi-fi Chronothermostat User Manual...

  • Page 10: Installation

    • Insert the rechargeable battery and make the connections respecting the diagram on page 3. • Power the instrument. - 8 - Mithos Wi-fi Chronothermostat User Manual...

  • Page 11: Initial Start-Up Of The Mithos Wi-Fi

    INITIAL START-UP OF THE MITHOS Wi-Fi The necessary procedure to prepare the Mithos Wi-Fi to remote operation consists of three steps, described below. 1. MITHOS Wi-Fi CONNECTION TO INTERNET 1.1. Press the key “R” and immediately after (within 3 seconds) the key “...
  • Page 12 2. CREATION OF YOUR ACCOUNT After connecting the Mithos Wi-Fi to internet it’s necessary to create a personal account to which to associate all Mithos Wi-Fi that you want to control. 2.1. Access the store of your smartphone/tablet, install and start the free app Vemer-Mithos Wi-Fi 2.2.
  • Page 13 3. ASSOCIATION MITHOS / ACCOUNT The last phase expects to associate the Mithos Wi-Fi to the created account. 3.1. Go to the page of PIN configuration of Mithos Wi-Fi (see “What is the pin” on page 12). 3.2. Start the app, enter the username (email address) and password chosen during registration phase and press “Access”...
  • Page 14 What is PIN The serial (PIN) is a number of 4 digits generated automatically by Mithos Wi-Fi. To view it: – press the key “PRG” for at least 3 seconds to access the menu or advanced programming – press several times the key “...

  • Page 15: The App

    THE APP - 13 - Mithos Wi-fi Chronothermostat User Manual...
  • Page 16 The APP Mithos Wi-Fi allows you to control remotely and in a simple way your chrono- thermostat Mithos Wi-Fi. Page “Login” Access using the access credentials (email, password) chosen during registration phase of your account (see on page 10). Page “Mithos List”...
  • Page 17 Main Page This screen shows the status of Mithos Wi-Fi: : indication of the measured temperature (18.9°C) by the internal probe (INT), of the operating mode (HEATING) and of the status of the heating system (flame red = heating on, flame grey = heating off).
  • Page 18 : to select, to modify, to delete or to rename an existing program Note: the padlock next to the program WINTER DEFAULT indicates that the program can not be modified or deleted. - 16 - Mithos Wi-fi Chronothermostat User Manual...
  • Page 19 Created a program for a day, it’ s possible to copy it to any other day of the week (“Copy” function). Note: the image refers to the version of the app for smartphone. On the tablet the whole weekly programming is visible on a single screen. - 17 - Mithos Wi-fi Chronothermostat User Manual...
  • Page 20 Mithos settings From this screen it’s possible: - to change the name of the Mithos Wi-Fi - to change the image that identifies it - to change the temperature values for automatic...
  • Page 21 Set a holiday period Set vacation days in which the regulation is turned off by selecting them on the calendar. During the holiday period the operation filed shows VAC - 19 - Mithos Wi-fi Chronothermostat User Manual...
  • Page 22 - 20 - Mithos Wi-fi Chronothermostat User Manual...

  • Page 23: Off-Line Operation Of Mithos Wi-Fi

    OFF-LINE OPERATION OF MITHOS Wi-Fi - 21 - Mithos Wi-fi Chronothermostat User Manual...

  • Page 24: Clock Setting

    The Mithos Wi-Fi can be off-line and operates like a normal Mithos not Wi-Fi. In this mode all settings performed remotely through app are ignored; only the programming made with the keyboard of Mithos Wi-Fi is taken into consideration. To put off-line the Mithos Wi-Fi: - press the key “PRG”...
  • Page 25 Upon exiting such procedure the clock indication will not flash any more; field (16) will display the environment temperature again, while, if the external probe is connected, field (15) will display the external temperature. - 23 - Mithos Wi-fi Chronothermostat User Manual...

  • Page 26: Programs Setting

    “ ” key to move on to the next day. • If no program satisfies the user's needs, choose any program and press the “PRG” key again; this will bring the segment of the corresponding field (17) to flash. - 24 - Mithos Wi-fi Chronothermostat User Manual...
  • Page 27 “Px” flashing on field (16). Pressing the “ ” key confirms the program for that day and moves on to the next until Sunday appears, after which operation goes back to normal mode. - 25 - Mithos Wi-fi Chronothermostat User Manual...

  • Page 28: Temperatures Setting

    “ ” key it is possible to confirm the change and return to normal operation. The setting limits are reported in the technical characteristics. - 26 - Mithos Wi-fi Chronothermostat User Manual...

  • Page 29: Manual Operation

    ” key; pressing one of the 2 keys again will allow modification of the temperature setting. To move from the manual program to the automatic one, simply press the “ ” key again for at least 3 seconds. - 27 - Mithos Wi-fi Chronothermostat User Manual...

  • Page 30: Summer / Winter Operation

    The potential of the summer operation is the same as the one of the winter operation; therefore the setting of all parameters can be carried out following the procedures reported in this instructions manual. - 28 - Mithos Wi-fi Chronothermostat User Manual...

  • Page 31: Programmable Thermostat Deactivation

    If in automatic status you set a timing, such automatic status will be maintained until the end of the timing; operation will then switch to automatic. If, during the timing, operation is switched to manual or off, the timing ends. - 29 - Mithos Wi-fi Chronothermostat User Manual...
  • Page 32 In the same way, if the measurement unit is in days, the count also includes the current one. Timings in hours terminate after end of the hour, the ones in days at midnight. - 30 - Mithos Wi-fi Chronothermostat User Manual...

  • Page 33: Advanced Programming

    • Using the “ ” and “ ” keys, choose the desired regulation mode and press “ ” to confirm and move to the setting of the next parameter. - 31 - Mithos Wi-fi Chronothermostat User Manual...
  • Page 34 It is possible to choose between 10, 20 or 30 minutes. For a wider description on how to operate the regulation type choice, please refer to the chapter “REGULATION TYPE” on page - 32 - Mithos Wi-fi Chronothermostat User Manual...
  • Page 35 Using this parameter to make a correction to the temperature value measured by the probe. The set value is added or subtracted to the temperature measured. Values range from -5.0°C to +5.0°C - 33 - Mithos Wi-fi Chronothermostat User Manual...
  • Page 36 • Cable length: 2 meters (extensible up to 40 meters with a bipolar cable min section 1 mm • Operating temperature: -40 °C ÷ +60 °C Code Model Capacity VN883500 X.Temp -40 °C ÷ +60 °C - 34 - Mithos Wi-fi Chronothermostat User Manual...
  • Page 37 This menu shows the pin code necessary in phase of start-up to associate the Mithos Wi-Fi to your account. From here, it’s possible to put the Mithos Wi-Fi in off-line mode or cancel the Mithos Wi-Fi from your account. To put the Mithos Wi-Fi in off-line mode, press the key “...
  • Page 38 The maximum memorizable value is of 65535 hours. To reset the counter, press the “ ” key for about 3 seconds when you are in the counter view menu. - 36 - Mithos Wi-fi Chronothermostat User Manual...

  • Page 39: Advanced Functions

    The default values set for the automatic time change are: - winter  summer change: last Sunday of March at 02:00 - summer  winter change: last Sunday of October at 03:00 - 37 - Mithos Wi-fi Chronothermostat User Manual...
  • Page 40 (16) will display the value relevant to the internal one. To reset the minimum/maximum value memorized, press the “ ”/“ ” key for at least 3 seconds. - 38 - Mithos Wi-fi Chronothermostat User Manual...

  • Page 41: Regulation Type

    The necessary parameters for the definition of this mode are: • the regulation band • the regulation period The regulation band represents the temperature interval, centered on the setpoint, in which the proportional regulation is checked. - 39 - Mithos Wi-fi Chronothermostat User Manual...

  • Page 42: Reference Standards

    2014/53/EU (RED) is declared with reference to the following harmonized standards: EN 60730-2-7 (LVD) EN 60730-2-9 (LVD) ETSI EN 300 328 (R&TTE) ETSI EN 301 489-1 (EMC-R&TTE) ETSI EN 301 489-17 (EMC-R&TTE) - 40 - Mithos Wi-fi Chronothermostat User Manual...

  • Page 43: Winter Programs

    T1 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 - 41 - Mithos Wi-fi Chronothermostat User Manual...

  • Page 44: Summer Programs

    T1 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 - 42 - Mithos Wi-fi Chronothermostat User Manual...
  • Page 48 Vemer S.p.A. I - 32032 Feltre (BL) Via Camp Lonc, 16 Tel +39 0439 80638 Fax +39 0439 80619 e-mail: info@vemer.it - web site: www.vemer.it 06-2016...
