Page 1: Air Conditioner

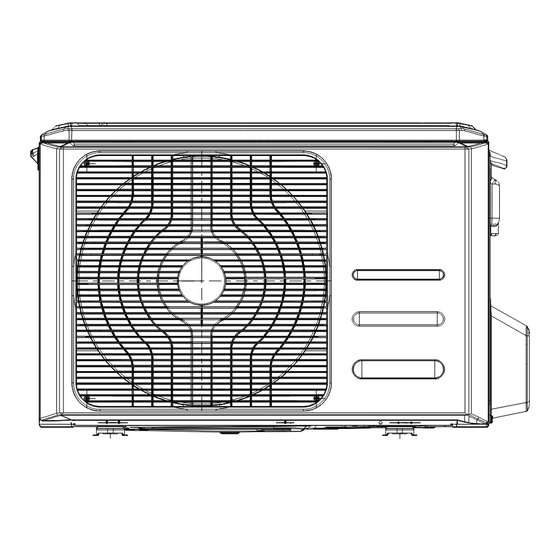

Air Conditioner Serie: XEVO - XX17X3E Outdoor Unit INSTALLATION MANUAL AND USING INSTRUCTIONS INSTALLATION MANUAL AND USING INSTRUCTIONS... - Page 2 Thanks you for the trust you have shown by purchasing this produtc.Carefully read this manual which contains the specifications and all the information useful for the correct functioning. The information contained in this publication may be subject to changes at any time and without any notice whatsoever for technical and/or commercial reasons as they arise.
-
Page 3: Product Introduction
INDICE 1. PRODUCT INTRODUCTION ....4 7. CHARGE AND TEST OF THE SYSTEM ..18 1.1 Air conditioner composition 7.1 Operating test (the first ignition must be done in Cooling mode) 1.2 Indoor unit 7.2 Draining and filling the refrigeration circuit with R 32 1.3 Accessories supplied with the outdoor unit 7.3 Final test 1.4 Product identification table... -
Page 4: Presentazione Del Prodotto
UI+UE Outdoor Indoor - “Outdoor unit”, to be placed outside the house. Single ll the functions of the air conditioner are controlled by an “infrared remote XEVO-0917 R32 XEVO-0917-M3E XEVO-0917W43 Hi-Wall control”. Single XEVO-1217 R32 XEVO-1217-M3E XEVO-1217W43 Hi-Wall... - Page 5 Spe- 2. WARNINGS gnere 2.1 Attention and dangers MEANING OF SYMBOLS indicates a prohibited action. Before using the air conditioner please read carefully the instructions manual. Producer decline every responsibility for any damage caused by the non-observing of the following warnings. When this manual has been read, please make sure that further unit users Indicates that important instructions must be followed.
- Page 6 2. WARNINGS Before any maintenance remove the power supply from the air Use the air conditioner only to condition the room. conditioner. Do not use the air conditioner for other purposes, for example: drying laundry, preserving food, breeding animals or cultivating vegetables.
-
Page 7: Operating Limits
Outdoor temperature (wet bulb) External temperature Model Cooling °C Heating°C External unit Cooling °C Heating°C Single 9k XEVO-0917-M3E -15 ÷ 50 -15 ÷ 30 Single 12k 17 (15) ÷ 32 (29) 0 ÷ 30 Single 18k XEVO-1217-M3E -15 ÷ 50 -15 ÷... - Page 8 3. IMPORTANT INFORMATION 3.5 Part of refrigerant safety table R 32 COOLANT GAS TYPE R 32 Name Difluoromethane 3.0 H220: Highly flammable gas. Indications of dangers H280: Contains gas under pressure; may explode if heated. DESCRIPTION OF FIRST AID MEASURES In a high concentration it can cause suffocation.
- Page 9 3. IMPORTANT INFORMATION INFORMATION ON THE MAIN PHYSICAL AND CHEMICAL PROPERTIES Shape Shape Liquefied gas Colour Colourless Odour Like ether Boiling point -51.6 °C (101.325 kPa) Relative density 1.1 (Reference material: Water) Solubility in water 280 g/l STABILITY AND REACTIVITY Chemical stability Stable in normal conditions.
-
Page 10: Handling And Transport
4. HANDLING AND TRANSPORT To move the units please use the relevant pre-cut handles placed on the Unpacking operations have to be done carefully because the external short sides of the packaging and comply with the current laws concerning part of the units has not to be damaged when knifes or cutters are used safety on the working place of the installation. - Page 11 Internal Unit total Internal Units Internal Unit Standard (m) total length (g / m) and external unit of tubes and external unit XEVO-0917-M3E XEVO-1217-M3E XEVO-1817-D3E XEVO-2717-T3E 22,5 Indoor Unit Maximum difference in height Outdoor Unit Indoor Unit Indoor Unit...
- Page 12 5. UNITS POSITIONING 5.4 Dimensions of the indoor unit Model E (mm) D (mm) H (mm) C (mm) A (mm) B (mm) XEVO 0917-M3E (R32) XEVO 1217-M3E (R32) XEVO-1817-D3E (dual) XEVO-2717-T3E (trial)
-
Page 13: External Unit Installation
- Improper operations may cause serious harm to the user. - You can find a list of service centres at the website www.emmeti.com The right installation of the air conditioner assure its efficiency Therefore we invite you to follow the instructions carefully about positio- ning, installation, connexions and test listed in these manuals. -
Page 14: Refrigerating Circuit Piping
The outdoor unit contains the whole charge of the refrigerating system and is equipped with valves with flare-nut connections and service fitting connection. Model Liquid line Gas line Size kBtu/h Model Ø inch Ø mm Ø inch Ø mm XEVO-0917-M3E 1/4" 6,35 3/8" 9,52 XEVO-1217-M3E 1/4" 6,35 3/8" 9,52 XEVO-1817-D3E 1/4"... -
Page 15: Electrical Supply
6. EXTERNAL UNIT INSTALLATION Connecting the pipes to the fittings 6.3.2 Insulating the pipelines - Connect the pipes to the fittings on the unit. - Before carrying out the flaring of the pipe, it is essential to insulate the -Secure by tightening the nuts to a torque of: pipe and then fit the nuts on the pipe (Fig. -
Page 16: Indoor Unit
6. EXTERNAL UNIT INSTALLATION Power supply of the units - Loosen the screws and insert the ends of the cable completely into the For al models, power supply is moved to external unit. terminal block, after this tighten the screws. Power supply 70 mm 10 mm... - Page 17 IT IT 6. EXTERNAL UNIT INSTALLATION 1. DESCRIZIONE DEI COMPONENTI DUAL Unit Connections DUAL Unit A Unit B S(2) S(A) N(A) L(A) N Unit A DUAL Unit B S(1) S(B) N(B) L(B) L used 1(L) 2(N) 1(L) 2(N) S(2) S(A) N(A) L(A) N S(1) S(B) N(B) L(B) L used 1(L)
- Page 18 6. EXTERNAL UNIT INSTALLATION 7. CHARGE AND TEST OF THE SYSTEM 7.1 Operating test (the first ignition must be done in Cooling mode) Note: Before starting the test, make sure that the following tasks have been after the unit has been switched off, or after the operating mode has completed correctly: been changed, the compressor will not start before 3 minutes.
- Page 19 7. CHARGE AND TEST OF THE SYSTEM 7.2 Draining and filling Liquid the refrigerating circuit with R 32 - The operations indicated below must be carried out only after discon- necting the air conditioner from the power supply. - The outdoor unit holds a refrigerant R 32 charge suitable for pipelines up Gauge group to 5 meters in length.
-
Page 20: Battery Disposal
1. DESCRIZIONE DEI COMPONENTI 8. DISPOSAL 8.3 Disposal rules for the new air conditioner 8.1 Enviromental safeguard information! packaging This equipment contains fluorinated greehouse gases covered by Kyoto Protocol. It should only be serviced or dismantled by All of the air conditioner packing materials can be disposed of without professional trained personnel. - Page 21 9. FUNCTIONAL ANOMALIES 1. DESCRIZIONE DEI COMPONENTI 9.1 Messages displayed on the indoor unit display Anomaly code on the Anomaly description indoor unit display EEPROM error of the indoor unit Communication error Internal fan speed is out of control Indoor temperature sensor T1 disconnected or short circuited Indoor temperature sensor T1 disconnected or short circuit Evaporator temperature sensor T2 disconnected or short circuit Observe coolant leaks Overcurrent Protection...
- Page 22 1. DESCRIZIONE DEI COMPONENTI 9. FUNCTIONAL ANOMALIES Parameters displayed Parameter Description Observation number Normal display Compressor frequency or fault code Number of connected internal units 0 = Stand-by, 1 = Ventilation, 2 = Cooling, 3 = Heating, 4 = forced cooling, 5 = Operating Modes of the Outdoor Unit forced defrosting Internal Unit Power A...
-
Page 23: Temperature Sensors
9. FUNCTIONAL ANOMALIES 1. DESCRIZIONE DEI COMPONENTI Frequency limit caused by IGBT 42 Active Frequency Limitations Bit7 radiator Bit6 Frequency limit caused by PFC Bit5 Frequency limit caused by T4. The displayed value is the hex number. For exam- ple, display shows 2A, then Bit 5 = 1, Bit 3 = 1, Bit Bit4 Frequency limit caused by T2. - Page 24 9. FUNCTIONAL ANOMALIES Temperature sensor table values T1,T2,T3,T4 °C °F K Ohm °C °F K Ohm °C °F K Ohm °C °F K Ohm 115.266 12.6431 2.35774 0.62973 108.146 12.0561 2.27249 0.61148 101.517 11.5 2.19073 0.59386 96.3423 10.9731 2.11241 0.57683 89.5865 10.4736 2.03732...
- Page 25 9. FUNCTIONAL ANOMALIES Temperature sensor table values T5 °C °F K Ohm °C °F K Ohm °C °F K Ohm °C °F K Ohm 542.7 68.66 13.59 3.702 511.9 65.62 13.11 3.595 62.73 12.65 3.492 455.9 59.98 12.21 3.392 57.37 11.79 3.296 430.5...
-
Page 26: Electrical Diagram
10. ELECTRICAL DIAGRAM CN 25 CN 60 CN 17 CN 15 Optional CN 50... - Page 27 10. ELECTRICAL DIAGRAM 1. DESCRIZIONE DEI COMPONENTI...
- Page 28 1. DESCRIZIONE DEI COMPONENTI 10. ELECTRICAL DIAGRAM...
- Page 29 11. REFRIGERATION CIRCUIT 1. DESCRIZIONE DEI COMPONENTI...
-
Page 30: Refrigeration Circuit
11. REFRIGERATION CIRCUIT... - Page 31 11. REFRIGERATION CIRCUIT...
-
Page 32: Product Fiche
12. PRODUCT FICHE Fontanafredda (Pn) - Italy Fontanafredda (Pn) - Italy XEVO-1217 M3E XEVO-0917 M3E XEVO-1217 W43 XEVO-0917 W43 1093 None None... - Page 33 12. PRODUCT FICHE Fontanafredda (Pn) - Italy Fontanafredda (Pn) - Italy XEVO-2717 T3E XEVO-1817 D3E XEVO-0917 W43 XEVO-1217 W43 XEVO-1217 W43 XEVO-0917 W43 XEVO-1217 W43 2390 1680 None None...
-
Page 35: Guarantee Certificate
- Fill in the Certificate of Guarantee in a clear and readable way. - Send to Emmeti Spa in a separate envelope the “C” part of the Certificate of Guarantee. The missing consignment of the Certificate of Guarantee or the wrong filling in of it involves the loss of the guarantee. -
Page 36: Guarantee Conditions
Guarantee conditions Emmeti Spa guarantees the quality of manufacture and of the materials used. The Guarantee is valid for a period of 2 years and runs from the date of first startup as recorded on the certificate and corroborated by the Service Centre which carried out the operation, for the models for which this is specified, and for other models from the date of installation as corroborated by the personnel who installed it, provided always that not more than 12 months have passed from the date of purchase from Emmeti Spa;... - Page 38 Note...
- Page 39 Note...
- Page 40 For a correct disposal, the different materials must be divided and collected according to the regulations in force. EMMETI Spa Via B. Osoppo, 166 - 33074 Fontanafredda frazione Vigonovo (PN) Italy Tel. 0434-567911 - Fax 0434-567901 Internet: http://www.emmeti.com - E-mail: info@emmeti.com...
