Summary of Contents for emmeti XEVO-0917 R32

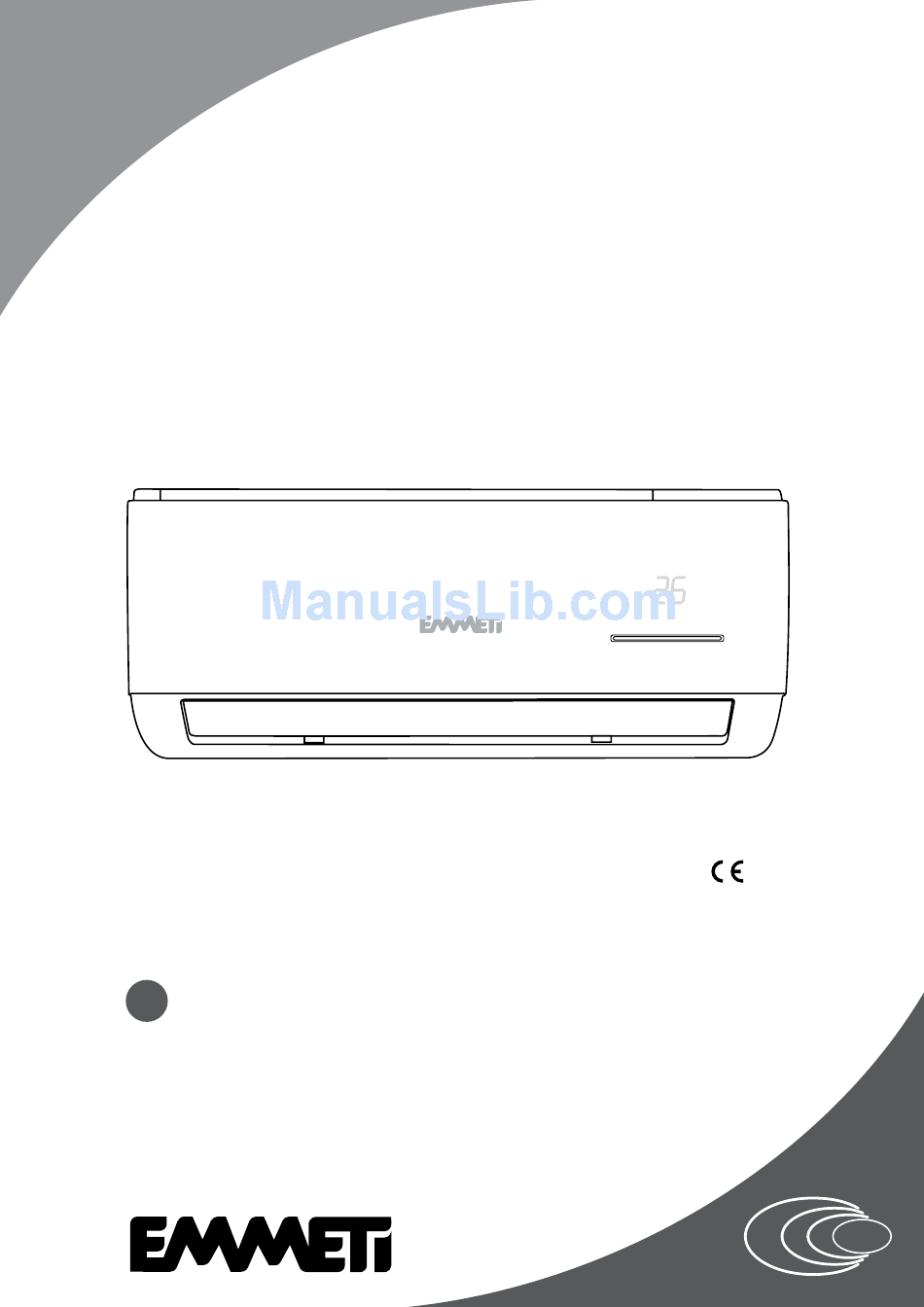

- Page 1 Air Conditioners Serie: XEVO-XX17W43 WALL INSTALLATION MANUAL AND USING INSTRUCTIONS FOR INTERNAL UNIT INSTALLATION MANUAL AND USING INSTRUCTIONS FOR INTERNAL UNIT...
- Page 2 Thanks you for the trust you have shown by purchasing this produtc. Carefully read this manual which contains the specifications and all the information useful for the correct functioning. The information contained in this publication may be subject to changes at any time and without any notice whatsoever for technical and/or com- mercial reasons as they arise.
-
Page 3: Unit Positioning
INDICE 1. INTRODUCTION TO THE PRODUCT ... 4 8. AIR CONDITIONER SET-UP .... 23 1.1 Introduction to the conditioning 8.1 Air conditioner start-up 1.2 Refrigeration circuit 8.2 Fan functioning 1.3 Air conditioner composition 8.3 Cooling functioning 1.4 Internal unit 8.4 Heating functioning 1.5 Internal unit display 8.5 Dehumidification functioning “Dry”... -
Page 4: Introduction To The Product
1. INTRODUCTION TO THE PRODUCT 1.1 Introduction to conditioning Air conditioner function is to create perfect temperature and humidity conditions in the rooms they are installed, optimal conditions are able to satisfy human exigencies, in one word “comfort”. Working principle is to use refrigerant gas status changes (liquid/vapour) which is included in the internal refrigeration circuit, to subtract heat from one room and move it to another one. -
Page 5: Product Identification Table
Q.ty conditioner. Description Remote control Power Unit Unit Type UI+UE Outdoor Indoor kBtu/h 61.5 A2 Remote control support Single XEVO-0917 R32 XEVO-0917-M3E XEVO-0917W43 Hi-Wall Single XEVO-1217 R32 XEVO-1217-M3E XEVO-1217W43 Hi-Wall batteries 12 A1 Dual XEVO-1817 XEVO-0917W43 / XEVO-1817-D3E Hi-Wall DR32... - Page 6 Spe- 2. WARNINGS gnere 2.1 Attention and dangers MEANING OF SYMBOLS indicates a prohibited action. Before using the air conditioner please read carefully the instructions ma- nual. Producer decline every responsibility for any damage caused by the non-observing of the following warnings. When this manual has been read, please make sure that further unit users Indicates that important instructions must be followed.
- Page 7 2. WARNINGS Before any maintenance remove the power supply from the air Use the air conditioner only to condition the room. conditioner. Do not use the air conditioner for other purposes, for example: drying laundry, preserving food, breeding animals or cultivating vegetables.
-
Page 8: Descrizione Dei Componenti
1. DESCRIZIONE DEI COMPONENTI 3. IMPORTANT INFORMATION 3.1 Compliance with the regulations 3.2 Degree of protection provided by enclosures (Code IP) Air conditioners are conform to the European stadanrd: 2014/30/EU regarding Electromagnetic Compatibility IPXO Indoor Unit 2014/35/EU standards on Low Voltage. = Degree of protection against drilling of external solid bodies is In accordance with the directive 2012/19/EC WEE of the European par- omitted. - Page 9 1. DESCRIZIONE DEI COMPONENTI 3. IMPORTANT INFORMATION 3.5 Part of refrigerant safety table R 32 COOLANT GAS TYPE R 32 Name Difluoromethane 3.0 H220: Highly flammable gas. Indications of dangers H280: Contains gas under pressure; may explode if heated. DESCRIPTION OF FIRST AID MEASURES In a high concentration it can cause suffocation.
- Page 10 1. DESCRIZIONE DEI COMPONENTI 3. IMPORTANT INFORMATION INFORMATION ON THE MAIN PHYSICAL AND CHEMICAL PROPERTIES Shape Shape Liquefied gas Colour Colourless Odour Like ether Boiling point -51.6 °C (101.325 kPa) Relative density 1.1 (Reference material: Water) Solubility in water 280 g/l STABILITY AND REACTIVITY Chemical stability Stable in normal conditions.
-
Page 11: Handling And Transport
4. HANDLING AND TRANSPORT To move the units please use the relevant pre-cut handles placed on the short sides of the packaging and comply with the current laws concerning safety on the working place of the installation. The external unit and the internal units of big size have to be moved by two persons. -
Page 12: Unit Position
5. UNIT POSITION f) In kitchens with a lot of oil fumes and with high humidity percentage Air conditioner has to be placed in a well-ventilated and easy to reach place. g) Near machines issuing electromagnetic waves Air conditioner has not to be placed in the following places: h) Places with acid or alkaline fumes a) Places where there are machines oils or other oils fumes. -
Page 13: Internal Unit
5. UNIT POSITION 5.2 External unit positioning If possible, avoid exposing the unit to direct Avoid positioning in correspondence with areas Select the position that is favourable for air sunlight, particularly in early afternoon. that can worsen the negative effects of atmo- circulation and facilitates the drain of the con- On the contrary, provide for a suitable protection spheric agents such as eaves drains or downpipe... -
Page 14: Mounting Plate
5. UNIT POSITION 5.4 Minimum functional distances of the internal unit Model kBtu/h W (mm) H (mm) D (mm) 5.5 Mounting plate 409mm Inner unit line model 09 kBtu 318mm 249mm Hole for tube Hole for tube 65mm 65mm 153mm 102mm 717mm 452,7 mm... - Page 15 - Improper operations may cause serious harm to the user. - You can find a list of service centres at the website www.emmeti.com The right installation of the air conditioner assure its efficiency Therefore we invite you to follow the instructions carefully about posi- tioning, installation, connexions and test listed in these manuals.
-
Page 16: Opening The Front Panel
6. INSTALLATION OF THE INTERNAL UNIT 6.3 Opening the front panel 6.2 Internal unit positioning on the installation template - Release the center pin on the flap and disassemble it Please make sure that pipes and cables go trough the hole on the wall Internal unit fixing. -
Page 17: Connecting The Refrigerant Pipes
6. INSTALLATION OF THE INTERNAL UNIT 6.4 Connecting the refrigerant pipes 6.5 Connection of the condensate discharge pipe Use the bracket to support the unit, leaving enough space for connecting At the hose of the condensate drain pan of the indoor unit, it is neces- pipes and cables sary to connect an exhaust pipe to convey the condensate to the desired location, both inside and outside the house. -
Page 18: Electrical Supply
1. DESCRIZIONE DEI COMPONENTI 6. INSTALLATION OF THE INTERNAL UNIT 6.6 Electrical supply 6.6.3 Connection and alimentation cables - All the feed and connection cables must be approved in conformance Electrical connections have to be done by qualified personnel, by observing with IEC standards, and for lengths up to 15m., must have a section the current rules in the place where the air conditioner unit has to be not less than:... -
Page 19: Unità Interna
6. INSTALLATION OF THE INTERNAL UNIT 6.8 Connections single unit - Loosen the screws and insert the ends of the cable completely into the terminal block, after this tighten the screws. Unità interna Apply the ferrite core to the connecting cable between the indoor and outdoor unit (near the terminal block of the outdoor unit) 70 mm 10 mm... - Page 20 6. INSTALLATION OF THE INTERNAL UNIT Dual Unit Connections DUAL Unit A Unit B DUAL Unit A Unit B S(2) S(A) N(A) L(A) N used S(1) S(B) N(B) L(B) L 1(L) 2(N) 1(L) 2(N) S(2) S(A) N(A) L(A) N used S(1) S(B) N(B) L(B) L 1(L) 2(N)
-
Page 21: Infrared Remote Control
7. REMOTE CONTROL 1. DESCRIZIONE DEI COMPONENTI 7.1 Infrared remote control Button ON/OFF Button MODE Selecting the air conditioner operating mode Automatic Cooling Dehumidification Heating Ventilation FAN key Selects the fan speed. ON/OFF SILENCE SLEEP key For activating the night-time shutdown program. -
Page 22: Remote Control
7. REMOTE CONTROL Indica tors on LCD In fo rm a tio n a re d is p la y e d wh e n M o d e d is p la y th e re m o te c o n tro lle r is p o we re d 7.1.1 Simbol of display u p . -
Page 23: Air Conditioner Use
8. AIR CONDITIONER USE 8.1 Air conditioner start-up 1 Make sure about the right electrical supply of the air conditioner 2 By pushing the light button ON/OFF the light goes on On the front panel, the display will light up and the air conditioner will go into operation in the set mode. - Page 24 8. AIR CONDITIONER USE 8.2 FAN functioning 1 Press the MODE button to select the FAN mode of operation The air conditioner recirculates the ambient air without heating or cooling it. 2 La temperatura non viene più visualizzata sul telecomando mentre sul display dell’unità...
- Page 25 8. AIR CONDITIONER USE 8.4 Heating functioning Press the MODE key to select the function HEAT With the buttons TEMP Set the desired temperature in the room (17÷30 °C). The temperature can be set to grade degree. 3 Pressing the button FAN Select the desired fan speed: Medium High Auto...
-
Page 26: Automatic Functioning
1. DESCRIZIONE DEI COMPONENTI 8. AIR CONDITIONER USE 8.6 Automatic functioning Press the MODE key to select the operating mode AUTO In AUTO mode the air conditioner automatically selects the operating mode in response to the ambient temperature. 2 With the buttons TEMP Set the desired temperature in the room 3 The fan speed is not selectable, but it will only work at speed AUTO Note: The speed also varies in relation to the set temperature... - Page 27 1. DESCRIZIONE DEI COMPONENTI 8. AIR CONDITIONER USE 8.8 Function TIMER ON Press this button to activate or deactivate TIMER ON and the light goes on the front panel. Once the unit is started, select the mode of operation desired 2 Press this button TIMER ON several times to set how long the unit should turn on.
-
Page 28: Turbo Function
8. AIR CONDITIONER USE 8.11 TURBO function Press this button to activate or deactivate the turbo fan speed. This speed is available in the Cooling and Heating operating modes. After setting the turbo fan speed on display The unit appears On for 3 seconds. The turbo fan speed can also be deactivated by changing the operating mode or changing the fan speed by pressing the FAN button. -
Page 29: Auto Restart Function
8. AIR CONDITIONER USE 8.15 FOLLOW ME function Press this button to enable the FOLLOW ME function. The display will show the symbol . Press it again to disable it. The remote control is equipped with a probe that detects ambient tem- perature. - Page 30 9. AIR CONDITIONER MAINTENTANCE For correct use of the air conditioner Set the room temperature suitably. Do not place obstacles from in front of the intake and outlet grilles Suitable temperature Close doors and windows during operation in Cooling mode Use the Timer effectively In cooling mode, keep direct sunlight out...
- Page 31 1. DESCRIZIONE DEI COMPONENTI 9. AIR CONDITIONER MAINTENTANCE Attention! All maintenance operations must be carried out after having disconnected the power supply from the air conditioner. 9.1 Remote control cleaning - To clean the remote control, use a dry cloth. Do not use detergents or glass-cleaning products.
-
Page 32: Extraordinary Maintenance
9. AIR CONDITIONER MAINTENTANCE 9.5 Condensation water dry check 9.4 Internal unit filters cleaning When using the air conditioner in the summer time check that the conden- sation water is drained correctly from the indoor unit. - Check the outflow of water from the end of the condensation discharge An obstructed air filter can reduce the efficiency of the unit and also pose a pipe after the air conditioner has functioned for one hour. - Page 33 10. MALFUNCTION Under particular conditions the air conditioner can have operation mal- functions which often are apparent or determined by accidental causes or, most of the time, by trivial ones. Warning! Before requesting the service centre to intervene, it is recommended to have simple checks in order to continuously make the best use of the air conditioner performance as well as to avoid useless service interventions.
- Page 34 1. DESCRIZIONE DEI COMPONENTI 10. MALFUNCTION Messages displayed on the indoor unit display Anomaly code on the Anomaly description indoor unit display EEPROM error of the indoor unit Communication error Internal fan speed is out of control Indoor temperature sensor T1 disconnected or short circuited Evaporator temperature sensor T2 disconnected or short circuited Observe coolant leaks Overcurrent Protection...
-
Page 35: Battery Disposal
11. DISPOSAL 11.3 Disposal rules for the new air conditioner 11.1 Enviromental safeguard information! packaging This equipment contains fluorinated greehouse gases covered by Kyoto Protocol. It should only be serviced or dismantled by All of the air conditioner packing materials can be disposed of without professional trained personnel. - Page 36 12. ELECTRIC SCHEMES...
-
Page 37: Guarantee Certificate
- Fill in the Certificate of Guarantee in a clear and readable way. - Send to Emmeti Spa in a separate envelope the “C” part of the Certificate of Guarantee. The missing consignment of the Certificate of Guarantee or the wrong filling in of it involves the loss of the guarantee. -
Page 38: Guarantee Conditions
Guarantee conditions Emmeti Spa guarantees the quality of manufacture and of the materials used. The Guarantee is valid for a period of 2 years and runs from the date of first startup as recorded on the certificate and corroborated by the Service Centre which carried out the operation, for the models for which this is specified, and for other models from the date of installation as corroborated by the personnel who installed it, provided always that not more than 12 months have passed from the date of purchase from Emmeti Spa;... - Page 40 For a correct disposal, the different materials must be divided and collected according to the regulations in force. EMMETI Spa Via B. Osoppo, 166 - 33074 Fontanafredda frazione Vigonovo (PN) Italy Tel. 0434-567911 - Fax 0434-567901 Internet: http://www.emmeti.com - E-mail: info@emmeti.com...
