then moving the control sticks.The instructor's transmitter has normal control over the model unless
the trainer switch is pulled, passing control to the student's transmitter. If the student loses control, the
instructor can quickly "take over" by releasing the trainer switch and controlling the model.
Other Adjustments
Adjustable length control sticks
You may change the length of the control sticks to make your
transmitter more comfortable to hold and operate.

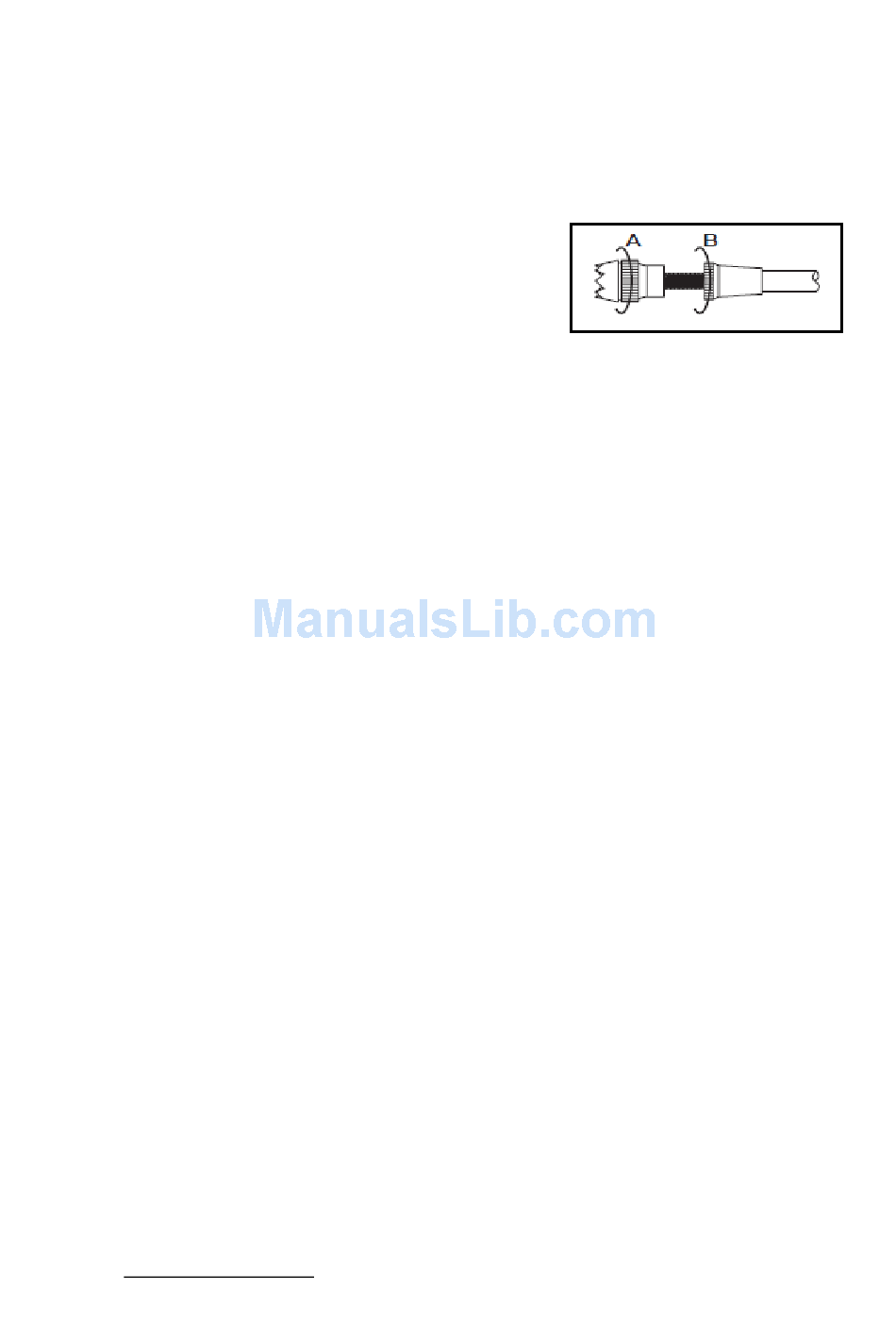

To lengthen or shorten your transmitter sticks, first unlock the
stick tip by holding locking piece B and turning stick tip A
counterclockwise. Next, move the locking piece B up or down
(to lengthen or shorten).
When the length feels comfortable, lock the position by
turning locking piece B counterclockwise.
Stick lever tension adjustment
You may adjust the stick tension of your sticks to provide the "feel" that you like for flying. To adjust
your springs, you'll have to remove the rear case of the transmitter. Using a screwdriver, remove the
six screws that hold the transmitter rear cover into position, and put them in a safe place. Place some
padding under the front of the transmitter and place it face-down on the pad. Gently ease off the
transmitter rear cover and move it to the right side of the transmitter, carefully turning it as you
would turn the page of a book. Now you'll see the view shown. Using a small cross-point screwdriver,
rotate the adjusting screw for each stick for the desired spring tension. The tension increases when
the adjusting screw is turned clockwise, and decreases for counterclockwise motion. When you are
satisfied with the spring tensions, you may close the transmitter. Very carefully reinstall the rear
cover. When the cover is properly in place, tighten the six screws.
Ratchet change
Some pilots, especially those flying helicopters, prefer a "softer" or "smoother" ratchet action on the
throttle stick. An alternate ratchet that provides a smoother ratcheting action is included as an
accessory with your Eclipse 7 system. To change the throttle ratchet, remove the back of the
transmitter case as directed above in the "stick lever tension adjustment" section. Then, unscrew the
ratchet retaining screw, remove the old ratchet, and replace with the new one. Tighten the retaining
screw gently but firmly. Then, replace the transmitter rear cover.
Changing the Eclipse 7 transmitter's mode
If you wish to change the mode of the transmitter, say from Mode 2 to Mode 1, return the radio to
Hitec for conversion. If you don't know what this means, you don't need to worry about it!
Factory Service Repair Information (for U.S.& Canada only)
Please read the warranty card supplied with your system, and return it so your system will be under
warranty. Before you decide to have your system repaired, if there is no apparent physical damage,
read this instruction manual again and check to be sure that you are operating the system as it is
supposed to be operated. If you are still having trouble, pack up your system in its original shipping
materials and send it to the factory or the nearest authorized Hitec R/C Service Center. Be sure to
include a note in your package that describes the trouble in as much detail as possible, including:
Symptoms of the problem in as much detail as you can provide, including any unusual mounting
conditions or equipment orientation A list of items you are sending, and what you want to be repaired.
Your name, address, and telephone number If you have any questions regarding this product, please
consult with Hitec's service center. The address and telephone numbers of our service center is given
below. Telephone inquiries are accepted from 8:00 AM to 4:30 PM weekdays (closed on holidays).
Hitec-RCD, Inc.
12115 Paine St.
Poway, CA 92064
TEL: 1-858-748-6948
FAX: 1-858-748-1767
Web site: http://www.hitecrcd.com
