Transmitter Input Buttons
The buttons are used for different things as follows:
1. The Edit/Display Up & Down buttons (1)allow
you to move up and down within the model
menus, and move within the regular display.
select options within a particular function, and
control the timer function.
2. The Data +Increase & -Decrease buttons (3)
allow you to increase or decrease the numerical
settings for a function.
3. The Clear Active/Inhibit button (4)resets numbers, and turns functions on and off.
4. The Engine Lock button (5)holds the throttle channel while other channels may respond to the
transmitter.
5. The Engine Cut button (6)closes the throttle so that you can kill the engine without touching the trim
lever.
You'll learn how to use these buttons in the setup sections that follow
6.the link button Can be used for link process between ECLIPSE 7 PRO to a Optima series receivers,
entering the power down mode for range checks, and the Normal/Scan Mode set-up.

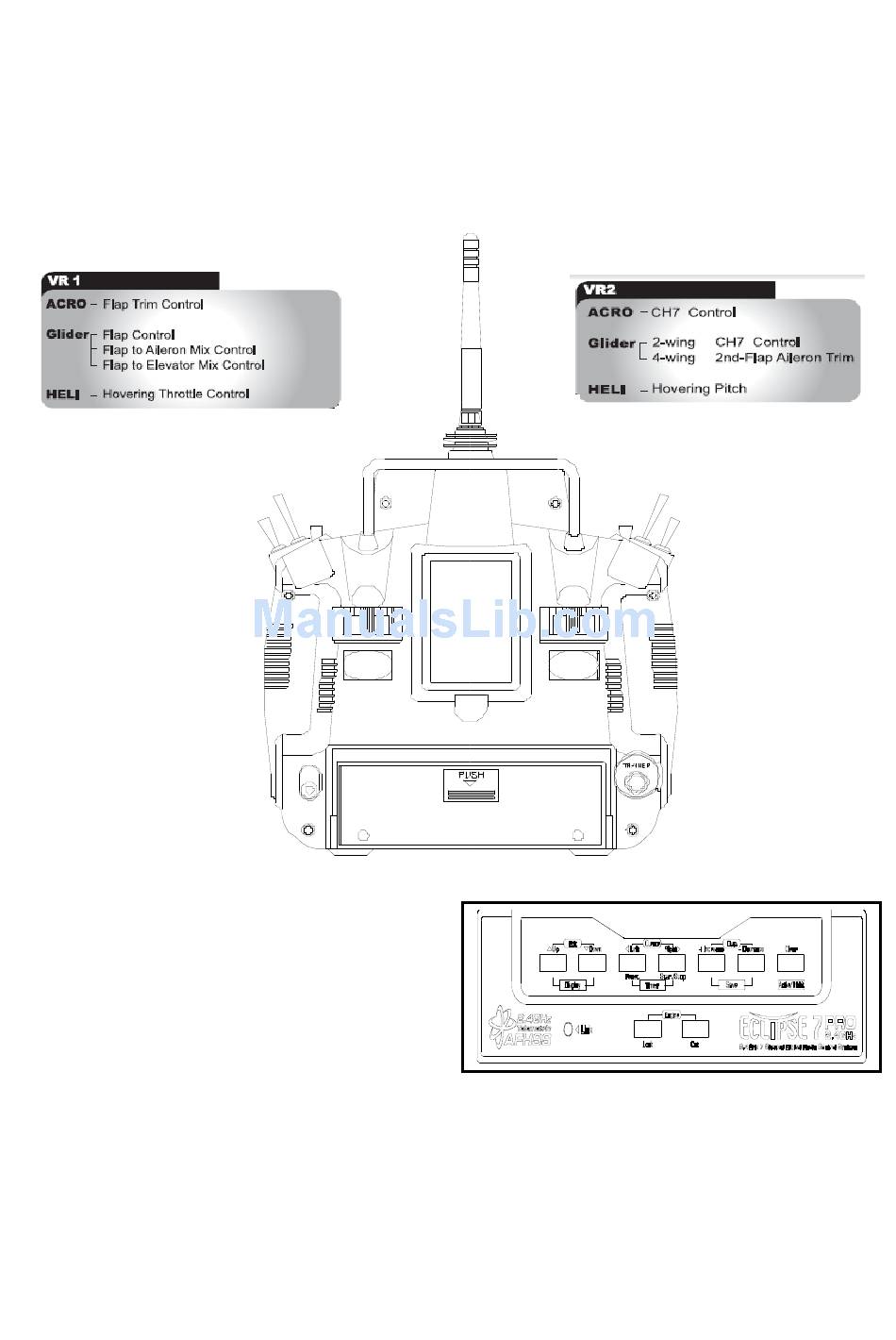

ECLIPSE 7 PRO MODE 2 TYPE
SWITCH CONFIGURATION LIST REAR
