OpenEye OE-C7032-WR User Manual

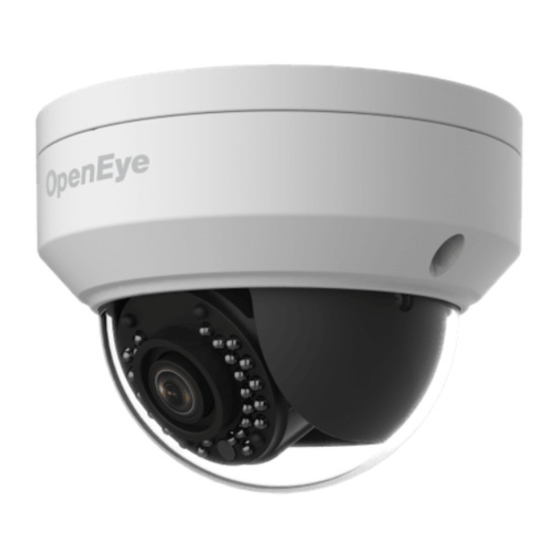

2mp / 4mp mini ip dome camera
Hide thumbs Also See for OE-C7032-WR:
Table of Contents

Advertisement

Quick Links

Download this manual

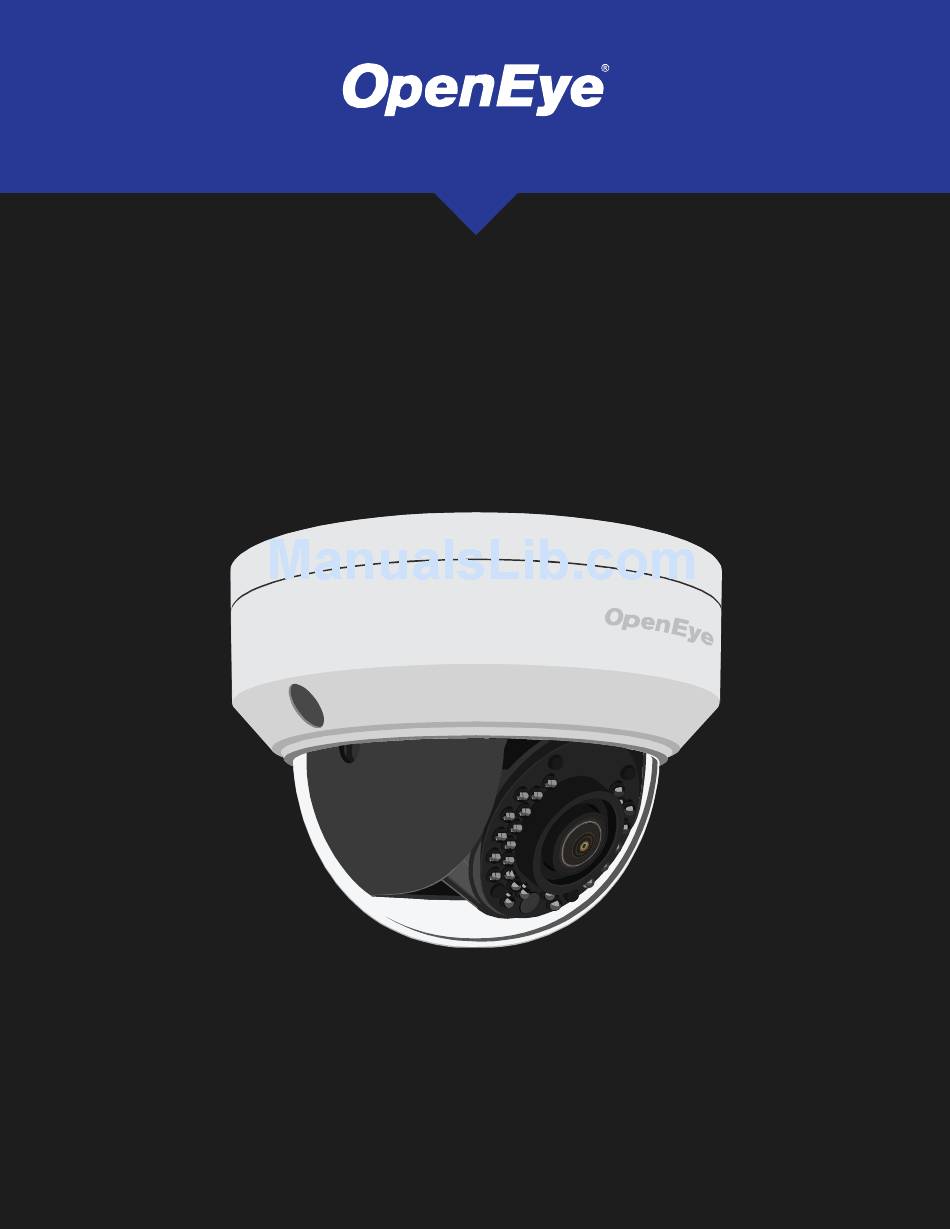

2MP / 4MP MINI IP
DOME CAMERA
USER MANUAL
MODELS:
OE-C7032-WR / OE-C7034-WR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OE-C7032-WR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OpenEye OE-C7032-WR

Summary of Contents for OpenEye OE-C7032-WR

  • Page 1 2MP / 4MP MINI IP DOME CAMERA USER MANUAL MODELS: OE-C7032-WR / OE-C7034-WR...
  • Page 2 The information in this publication is provided “as is” without warranty of any kind. The entire risk arising out of the use of this information remains w ith recipient. In no event shall OPENEYE be liable for any direct, consequential, incidental, special, punitive, or other damages whatsoever (including without limitation,...

  • Page 3: Important Safeguards

    Important Safeguards 1. Read Instructions Read all of the safety and operating instructions before using the product. 2. Retain Instructions Save these instructions for future reference. 3. Attachments / Accessories Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause hazards, damage product and void warranty.
  • Page 4 Installatio n and Storage • Do not install the camera in areas of extreme temperatures in excess of the allowable range; install the camera in areas with temperatures within the camera’s operating temperature, including the following: -31 ~ 140 °F (-35 ~ 65 °C) •...
  • Page 5 Warning DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLO SURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. Caution C A U T I O N RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).

  • Page 6: Table Of Contents

    TABLE OF CONTENTS Introduction ..........................8 Overview............................8 Product Features ........................8 Getting Started..........................9 Box Contents..........................9 Camera Overview .........................10 Camera Dimensions .........................10 Connections ..........................11 Network Camera manager Software ................... 12 Installation............................12 Launching Net work Camera Manager ..................12 Camera Configuration ........................14 Device Addressing ........................14 Live View .............................16 Setup &...
  • Page 7 Specifications ........................... 49 Camera Specifications ........................49 35298AC...

  • Page 8: Introduction

    All O penEye IP cameras are fully ONVIF™ compliant and are compatible with the OpenEye Web Services platform, allowing multiple users to view high quality images and perform remote setup using a web brow ser.

  • Page 9: Getting Started

    Before proceeding, please check that the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact your dealer for assistance. OE-C7032-WR / OE-C7034-WR Waterproof Cable Mini IP Dome Camera...

  • Page 10: Camera Overview

    CAMERA OVERVIEW Before installing or connecting the dome camera, please refer to this section and complete preparations for dome setup and all sw itch settings. CAMERA DIMENSIONS Side 1.6in (41.5mm) 3.2in (81mm) Bottom 1.6in (41.5mm)

  • Page 11: Connections

    CONNECTIONS Blue Gray Connection Definition RJ-45 For network and PoE connections Pow er (12vDC) Pow er connection Green Audio In L Blue Ground Brown Audio In R Audio I/O Blue Ground Gray Not used (Reserved) Purple Not used (Reserved) Ground Blue Orange Alarm Input...

  • Page 12: Network Camera Manager Software

    NETWORK CAMERA MANAGER SOFTWARE OpenEye Network Camera Manager (NCM) is a software tool that allows you to quickly and easily connect and configure your O penEye IP Cameras. This software allows you to assign IP addresses, manage users, configure video settings, and update firmware on multiple cameras at once.
  • Page 13 For Apex Window s and Linux platforms, Apex will be pre-installed on your O penEye recorder. Follow the instructions below to launch Network Camera Manager. Launch from Apex Windows Platforms and Apex Linux Platforms 1. Exit the recorder Live Screen. 2.

  • Page 14: Camera Configuration

    CAMERA CONFIGURATION DEVICE ADDRESSING The functions on the Device Addressing tab allow you to find, configure, and view network cameras. Finding Network Devices 1. Click Refr esh to reload the Device List. 2. To narrow your search by Camera Model and Network Location, use the Model Filter and Networks dropdowns.
  • Page 15 2. Enter the Username and Password for the camera. The username and password are case sensitive. It is strongly recommended that the password be changed after the initial setup to prevent unauthorized access. The default username and password for OpenEye IP cameras are as follows.

  • Page 16: Live View

    LIVE VIEW Note Live view is broadcast in MJPEG pass-through. Stream settings will be broadcast to your recording device according to the selected Codec type. Setup – View additional camera settings. Proportional – Dropdown menu with Live View image options including: Stretch: Fit the camera image to the entire viewing w indow without scaling the image proportionately to the original view.

  • Page 17: Setup & Configuration

    SETUP & CONFIGURATION BASIC CAMERA SETTINGS Basic Information The Basic Information tab displays the product model, firmware, network, and MAC address for the connected camera, along with the current camera Status. The nested Image, Video, Network, and Time tabs are shortcuts to the more advanced menu options further down the Setup list.

  • Page 18: Network Settings

    NETWORK SETTINGS Network The Network tab allows you to configure the connected camera network settings. IP Address (DHCP/Sta tic IP) You can use the dropdown menu to choose to use a Static (fixed) IP address, PPPoE, or a dynamic IP address (assigned by a DHCP server or router) for the camera.

  • Page 19: Port-Mapping

    Port HTTP Port – Configure your relevant port number. Note If the HTTP port number has been occupied already, a “Port conflicts” message will display. Ports 23, 81, 82, 85, 3260, and 49152 are occupied by default. HTTPS Port – The default HTTPS Port is 443; setting range: 1024 ~65535. RTSP Port –...
  • Page 20 DDNS DDNS (Dynamic Domain Name Service) is a service that allow s a connection to an IP address using a hostname (URL) address instead of a numeric IP address. Most ISPs use Dynamic IP Addressing that frequently changes the public IP address of your internet connection; this means that when connecting to the camera over the internet, you need to know if your IP address has changed.
  • Page 21 Use FTP (file transfer protocol) to upload snapshots form network cameras to a specified server. To configure FTP: 1. Enter the Server IP address and Port Number. 2. Enter the Username and Password for the upload account. 3. Enable Upload Images and/or Overwrite Stora ge, and set the Overwrite Image threshold. 4.
  • Page 22 Email The camera can send an e-mail via Simple Mail Transfer Protocol (SMTP) when a variety of events occur. SMTP is a protocol for sending e-mail messages between servers. SMTP is a relatively simple, text-based protocol, where one or more recipients of a message are specified and the message text is transferred.

  • Page 23: Streaming Settings

    STREAMING SETTINGS Video The Video Settings menu configures the camera’s basic settings, including frame rate, bit rate, and the image quality. To configure the camera streams: 1. Use the dropdown menus to configure the Video Compression, Frame Rate Bitrate Type, GOP, and Smart Encoding.
  • Page 24 Note In a poor network environment, you can enable smoothing to get more fluent video.
  • Page 25 Snapshot The Snapshot tab is used to configure the settings for timed or continual snapshots. To configure Snapshots: 1. Use the dropdowns to select the desired Resolution, Image Quality, Snapshot Interval, and the Number of Snapshots. 2. If you desire Scheduled Snapshots, select Timed Snapshot Mode, and designate an Interval. 3.
  • Page 26 Audio (OE-C7034-WR models only) The Audio tab allows you to configure the audio encoding settings for your camera. To configure Audio setup: 1. Check the Audio Input On checkbox. Note By default, Audio I nput is set to Off. It is recommended to only set Audio Input to On if you will be using the Audio feature.
  • Page 27 Region of Interest (ROI) When Region of Interest (ROI) is enabled, the system ensures the image quality for the FOI first if the bit rate is insufficient. To enable ROI: 1. Check the Enable ROI checkbox. 2. Arrange the red ROI square as desired in the camera image. Click and drag to move the square, and use the corner markers to expand the square.
  • Page 28 Media Stream You can display the established media streams from a camera. You can also set the camera to transmit code streams by the UDP or TCP protocol to a specified IP address and port number. Note Changes to the media stream will take effect after the camera has been restarted. To configure media streams: 1.

  • Page 29: Picture Settings

    PICTURE SETTINGS Image The Image tab allows you to configure the setting for the camera image as seen in Live View. When adjusting your image settings, the changes will be saved automatically and will display in the camera image preview window. Scenes Scene allow s you to set the image parameters to achieve the desired image effects based on live video in different environments.

  • Page 30: Image Enhancement

    Image Enhancement Use the sliding scales to adjust the Image Settings, or set a numeric value in the value box. The dropdown Image Rotation menu will rotate the camera image.

  • Page 31: Exposure

    Exposure By default, the Exposure Mode is set to Automatic. Other options include Custom, Indoor 50hz, Indoor 60hz, and Manual. Using Custom or Manual allow s you to manually configure the shutter and gain control. Shutter – Control the light that enters into the camera lens. A fast shutter speed is ideal for scenes with fast movement.

  • Page 32: Smart Illumination

    Sma rt Illumina tion Toggle Smart Illumination Enabled or Off, and then use the dropdown menus to customize the Lighting Type, Control Mode, and Illumination Level. White Balance Use the white balance setting to change color representation in difficult lighting conditions.
  • Page 33 On-Screen Display Up to 8 on-screen displays (OSD) can be configured for the camera image. To add an on-screen display: 1. Check the Enable checkbox for the desired OSD. 2. Type the X and Y axis coordinates to set the OSD location on the camera image, or click and drag the OSD to the desired location.

  • Page 34: Privacy Mask

    Privacy Mask Add a privacy mask to your camera image to hide desired areas from view. To add a privacy mask: 1. Click Add. 2. Click and drag the newly generated mask square to the desired location on the camera image. Arrange and resize the mask square as desired.

  • Page 35: Events Settings

    EVENTS SETTINGS Alarms Motion Detection Motion detection is used to detect motion in a specified area during a period of time. The use of motion detection requires setting a detection area, detection sensitivity, object size, and history. When these requirements are met, the motion detection alarm will activate. To configure Motion Detection: 1.
  • Page 36 Suppress Alarm – After an al a rm is triggered, the same alarm will not be reported again within the designated time. Clear Alarm – After the alarm is triggered: If the same alarm is not triggered within the set time, the alarm will be cleared and the same alarm can be reported again.
  • Page 37 The alarm schedule is used to arm or disarm motion detection alarms. This may be useful to prevent unnecessary alarm triggers during business hours, for example. To arm or disarm Motion Detection: 1. Check the Enable Schedule checkbox. 2. To make changes to the schedule, click Edit. 3.

  • Page 38: Audio Detection (Oe-C7034-Wr Models Only)

    Audio Detection (OE-C7034-WR models only) The camera can detect input audio signal for exceptions. When the rise or fall of volume exceeds the set limit, or when the input volume reaches the threshold, the camera reports an alarm and triggers the set actions.

  • Page 39: Alarm Input (Oe-C7034-Wr Model Only)

    Alarm Input (OE-C7034-WR model only) The camera can receive alarm information from a third-party device. To configure Alarm Input: 1. Select the Alarm, the Alarm Name, and the Alarm ID. 2. Select Normally Open or Normally Closed, depending on the type of third-party alarm input device.

  • Page 40: Alarm Output (Oe-C7034-Wr Model Only)

    Alarm Output (OE-C 7034-W R model only) After an alarm output is triggered by a motion detection alarm, audio alarm, or other third-party configured alarm, the camera can trigger an alarm output to a third-party device. To configure Alarm Input: 1.

  • Page 41: Storage Settings

    STORAGE SETTINGS All O penEye IP cameras include an integrated microSD™ card (Memory Card) slot that can be used to record video or images. The card slot is compatible with a microSD™ card up to 128GB. To select the Memory Card as the Storage Medium, check the Enable checkbox. Allocate Capacity –...

  • Page 42: Security Settings

    SECURITY SETTINGS User Add User The user name and passw ords are limited to 32 characters with no spaces permitted. There is a maximum of twenty user accounts. 1. Type the new Username and User Type. 2. Type a Password, and then confirm the password. 3.

  • Page 43: Network Security

    Network Security You can use the Network Security tab to set a secure channel for data transmission. To configure Network Security: 1. Click Network Settings, and then click Port, and then enter the port number in the HTTPS Port box. 2.
  • Page 44 IP Address filtering allows you to configure access from specified IP addresses to your camera. 1. Check the Enable IP Address Filtering checkbox. 2. Select a Filtering Mode, and then click the + symbol to add the desired IP addresses to the list.
  • Page 45 Video Watermark Use the Video Watermark to encrypt the camera image and protect the video from being deleted or modified. To add a video watermark: 1. Check the Video Watermark Enable checkbox. 2. Type the desired Watermar k Content. 3. Click Save. 35298AC...

  • Page 46: Maintenance

    MAINTENANCE Time By default, the time setting Sync Mode will be set to Sync with NTP Server. To configure the time settings: 1. Use the Time Zone dropdown to select the appropriate time zone. 2. The Device Time will sync with the selected Time Zone, or you can click Sync with Computer Time.

  • Page 47: Software Upgrade

    Maintenance Software Upgrade To update your camera software: 1. Click Browse, select the software file, click Open, and then click Upgrade. The software file must be a .zip file. Note Device Resta rt This w ill restart your camera. A restart may be necessary for some camera settings to take effect. Configuratio n Management You can restore your camera to default settings (w ithout losing your network and user settings) in the Configuration Management tab.

  • Page 48: Logout

    LOGOUT The Logout tab allows you to switch between users or cameras. 1. Click Logout. 2. If prompted to close the browser window, click OK. 3. Using the Network Ca mera Manager Software, select the camera you wish to view in the Viewer Software.

  • Page 49: Specifications

    SPECIFICATIONS CAMERA SPECIFICATIONS Model OE-C7032-WR OE-C7034-WR Maximum Resolution Lens 2.8mm fixed Image Sensor 1/ 2.9” Progressive CMOS 1/3” Progressive CMOS Video Compression H.264 (+) / MJPEG Frame R ate 30 IPS @ 2MP H. 264 20/25 IPS @ 4MP H.264...
  • Page 50 All rights reserved. No part of this publication may be reproduced by any means without written permission from OpenEye. The information in this publication is believed to be accurate in all respects. However, OpenEye cannot assume responsibility for any consequences resulting from the use thereof. The information contained herein is subject to change without notice.
