Summary of Contents for OpenEye OE-C7022-APW

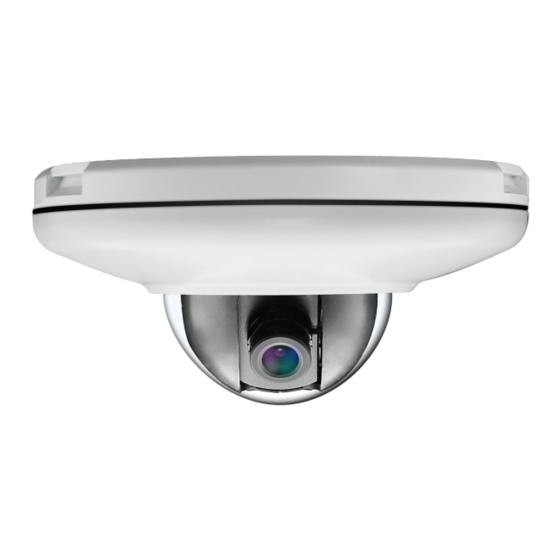

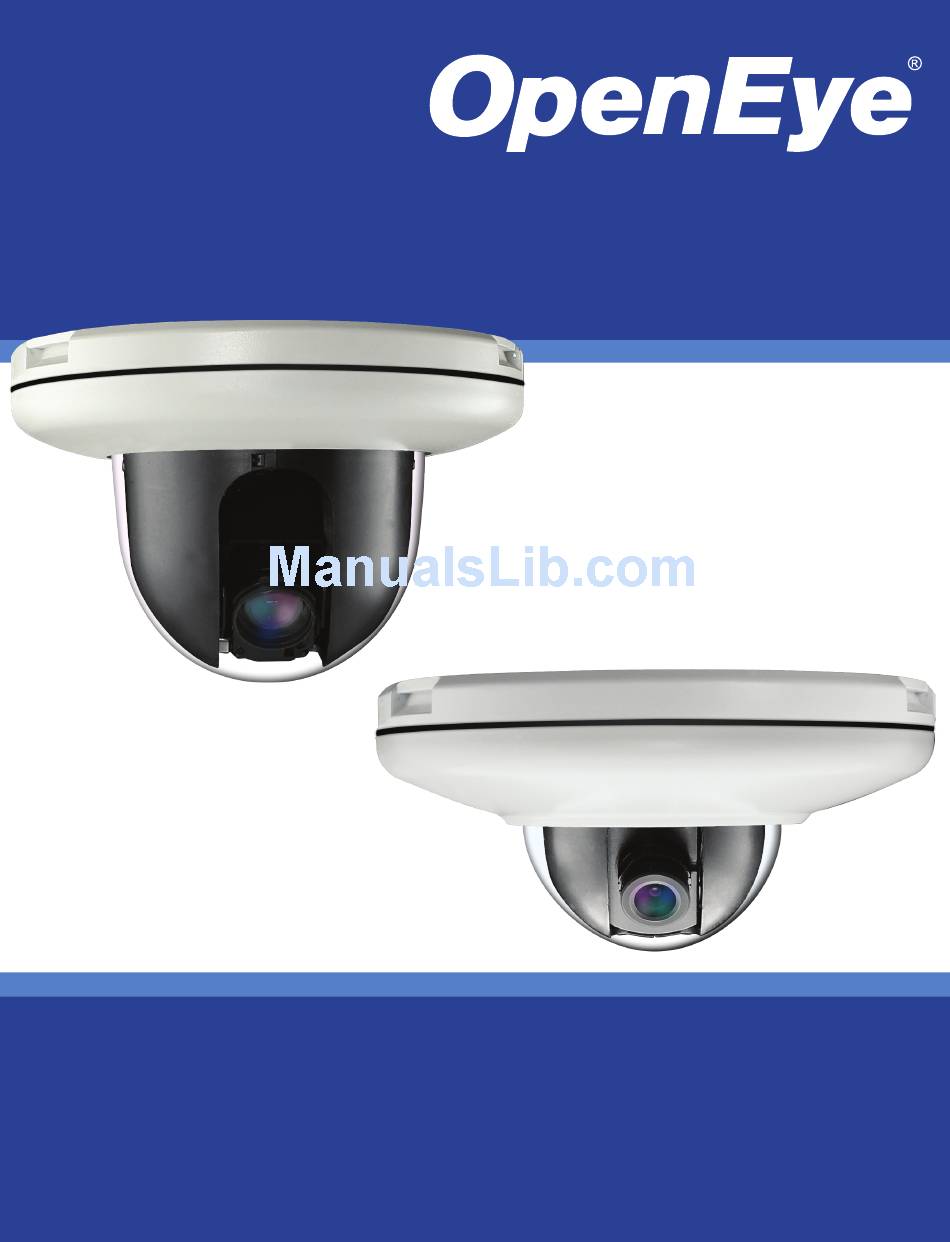

- Page 1 Outdoor Repositionable IP Dome Camera User Manual Accessories CA-510G CA-510PML CA-510W CA-510PMS CA-510C CA-510PA25 Camera CA-510P25 CA-510PA50 CA-510P50 OE-C7022-APW OE-C7022-FPW www.openeye.net...
- Page 3 The information in this publication is provided “as is” without warranty of any kind. The entire risk arising out of the use of this information remains with recipient. In no event shall OPENEYE be liable for any direct, consequential, incidental, special, punitive, or other damages whatsoever...
-
Page 4: Important Safeguards
Important Safeguards Read Instructions Read all of the safety and operating instructions before using the product. Retain Instructions Save these instructions for future reference. Attachments / Accessories Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause hazards, damage product and void warranty. Installation Do not place or mount this product in or on an unstable or improperly supported location. - Page 5 Installation and Storage Do not install the camera in areas of extreme temperatures in excess of the allowable range. (14°F~ 122°F / -10°C ~ 50°C) Avoid installing in humid or dusty places. The relative humidity must be below 90%. ...
- Page 6 Warning DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. Caution C A U T I O N RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
-
Page 7: Table Of Contents
Indoor Cameras ........................ 13 POE Power Source ...................... 13 12vDC Power Source ....................14 Locate Camera ..........................15 OpenEye Network Camera manager ..................15 Installation ..........................15 Starting Network Camera Manager ..................15 Device Addressing ......................... 16 Finding Network Devices ....................16 Setup &... - Page 8 Software ........................34 System Log ........................36 Remote Backup ......................37 Exposure ........................38 Camera Setup ......................39 Motion Detection ......................41 Stream .......................... 42 Audio ..........................44 Logout ..........................45 Specifications ..........................46 Camera Specifications ........................ 46...
-
Page 9: Introduction
The OpenEye Outdoor Fixed IP cameras are capable of providing real time streaming video with smooth image quality. The IP Mini Dome cameras offer quad streaming and can be used in a variety of installations including shops, stores, banks, parking lots, factories and for building surveillance. -
Page 10: Getting Started
Before proceeding, please check that the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact your dealer for assistance. Camera (FPW or APW) Mount Plate & Torx Tool Screws &... -
Page 11: Camera Overview
Before installing or connecting the dome camera, please refer to this section and complete preparations for dome setup and all switch settings. Camera Diagram 32953AA... -
Page 12: Camera Dimensions
Camera Dimensions Height: 3.25” Width: 4.9” Height: 2.9” Width: 4.9”... -
Page 13: Connections
Connections The camera is compatible with 12vDC and Power over Ethernet (PoE). Connect power to the camera using the provided power connector lead or connect the camera to a PoE power source. If you are connecting 12vDC power, verify the polarity of the power connection. -
Page 14: 12Vdc Power Source
12vDC Power Source If PoE is not being used, a power adapter is needed to power the camera. An additional 12vDC connector cable is required. -
Page 15: Locate Camera
Installation You can install Network Camera Manager on any personal computer (PC) or laptop using the software CD included with your OpenEye IP camera or by downloading the program from openeye.net. Network Camera Manager will only work on PCs or laptops that use a Windows operating system. -
Page 16: Device Addressing
Device Addressing The functions on the Device Addressing tab allow you to find, configure, and view network cameras. Click Find Devices on the Device Addressing tab. To narrow your search by Camera Model, Project, or Camera Name, select your desired criteria from the appropriate lists. -
Page 17: Setup & Configuration
Locate the camera on the IP Finder list. Double-click the camera to open the Viewer software in your web browser. Click Browse in the pop-up window. Log in to the camera with the appropriate User Name and Password. The default User name is admin and the default Password is1234. The username and password are case sensitive. -
Page 18: Connecting A Stream
OpenEye IP cameras using third party software like VLC media player (http://www.videolan.org). To connect the camera you may need to provide the stream URL. All OpenEye IP cameras are capable of delivering two RTSP streams, as well as streaming MJPEG over HTTP. -
Page 19: Connecting Over The Internet
There are some challenges with connecting to OpenEye IP cameras over WAN (internet) connections because the camera streams video over RTSP. RTSP is an excellent protocol for media and is now used on many IP cameras (including OpenEye) as the default streaming option. -
Page 20: Viewer Software
To access the setup menu, you need to install the viewer software on your PC or recorder. The viewer software will install automatically the first time you connect to the camera. If your internet browser doesn’t install the viewer software, check the security settings or ActiveX controls and plug-in settings. - Page 21 PTZ Control – This opens the Pan, Tilt, and Zoom (PTZ) control. This allows you to reposition the camera to the desired scene. The camera drive motor is designed to help reposition the camera through the software and is not designed for continuous control of the camera. Full Screen –...
- Page 22 Live Audio – Camera to PC Network Camera Manager Software, enables audio if a microphone is equipped to the camera. The Microphone and Live Audio functions are only available on enable cameras. If the camera is not enabled for these features, an error message will display. The Setup tab displays Camera Name, IP Address, User Setup, Picture Setup, and Stream Setup.
-
Page 23: System
The Advanced tab is only accessible to the Administrator. System Host Name – The Host Name is used to identify the camera on your system. If camera based Motion Detection is enabled and is set to send alarm message by Mail/FTP, the host name entered here will display in the alarm message. -
Page 24: Network
Every network device has a unique Media Access Control (MAC) address that can be used for identification. The MAC address is located on the bottom of each camera, and on the box label (OpenEye Network Camera Manager also displays the MAC address for identification). Record your camera’s MAC... - Page 25 Click Apply to confirm the new setting. When using static IP address to log in to the IP Camera, you can access it either through OpenEye IP Finder software or type the IP address directly in the address bar of your Internet Explorer.
-
Page 26: Advanced Network Setup
Advanced Network Setup DDNS DDNS (Dynamic Domain Name Service) is a service that allows a connection to an IP address using a hostname (URL) address instead of a numeric IP address. Most Internet Service Providers use Dynamic IP Addressing that frequently changes the public IP address of your internet connection;... -
Page 27: Security
Security Admin Password To change the administrator password, type a new password in the Admin Password box and confirm below. The maximum length of the password is 14 characters. The following characters are valid: A-Z, a-z, 0-9, !#$%&’-.@^_~. 32953AA... -
Page 28: Add User
Add User The user name and passwords are limited to 16 characters with no spaces permitted. There is a maximum of twenty user accounts. Type the new User name and Password Select Super, Operator, or Viewer to manage the Setup and Advanced menu access for the User. -
Page 29: Mail
Mail The camera can send an e-mail via Simple Mail Transfer Protocol (SMTP) when a variety of events occur. SMTP is a protocol for sending e-mail messages between servers. SMTP is a relatively simple, text-based protocol, where one or more recipients of a message are specified and the message text is transferred. -
Page 30: Alarms
Alarms The alarms menu is where alarm connections are configured. NOH – NO stands for Normally Open. NC/L – NC stands for Normally Closed. Dwell –The amount of time the input state must be changed before the camera generates an alarm, measured in seconds. Consult the documentation to the sensor input device to determine which of these to use. -
Page 31: Storage Management
Storage Management All OpenEye IP cameras include an integrated microSD™ card slot that can be used to record video or images. The card slot is compatible with a microSD™ card up to 16GB. Load Device Information – Displays the storage total size and free space information of the included microSD™... -
Page 32: Scheduled Recording
Scheduled Recording The recording schedule allows you to set up scheduled recording to the microSD™ card. To set up scheduled recording: Select days of the week to record on. Click the hourly squares to set recording at that time. Click Apply to confirm your changes. To set continuous or alarm recording: Select Continuous to continually record --or—... -
Page 33: Maintenance
Maintenance On the Maintenance page you can export the cameras current configuration, or import the configuration for a camera. Use the factory default page to reset the IP Camera to factory default settings if necessary. Do not import configuration files from different models of cameras. Export a Configuration Check the appropriate boxes for information that you want exported. -
Page 34: Software
Software Upgrading the Camera Viewer Software Make sure the software upgrade file is available before starting the software upgrade. Click Browse and find the upgrade file. Do not change the file name, or the system will fail to find the file. Select the file name from the list under Step 2. - Page 35 Factory Default: There are two factory default settings available: General and Full. The General default resets all picture settings to default, but maintains current network settings. The Full default will reset the picture settings and the network settings. If a Full Factory Default is used, you will need to use the Network Camera Manger to find the desired camera(s) again.
-
Page 36: System Log
System Log Click System Log to view the system log file. The content of the file provides useful information about configuration and connections. -
Page 37: Remote Backup
Remote Backup Remote backup allows you to backup data from the camera SD card to a local PC. To perform a remote backup: Using the calendar, select a Start Date and End Date. Enter a Start Time and End Time. Click Backup Start. -
Page 38: Exposure
Noise Reduction – Use Noise Reduction to smooth out fixed pattern noise. These settings can drastically affect the camera image. OpenEye suggests that these settings are only modified by a CCTV professional, or at the instruction or a technical support representative. -
Page 39: Camera Setup
Camera Setup 32953AA... - Page 40 Privacy Zone Configuration Use the privacy zone settings to block out sections of the video scene. Up to 16 privacy zones are available. Use the following steps to set up privacy zones: Enable Privacy Zones by switching Mode to On, and click Apply. If desired you can use the color switcher to change the color of the privacy mask.
-
Page 41: Motion Detection
Motion Detection To enable motion detection: The Motion Detection default is the entire camera field of view. The entire field of view is divided into equal detection squares. Check the Use Motion option. Click a blue detection square to deselect that area in the camera’s field of view. Adjust the sensitivity of the motion detection. -
Page 42: Stream
Stream The Stream menu allows you to configure video streams, including resolution, color, bitrate, and frame rate. Resolution The camera provides five codec options under video resolution (two single streaming options and two sets of dual streaming options): H .264 High Profile ... -
Page 43: Frame Rate
OpenEye recommends setting the GOP to be approximately twice the frame rate (e.g.: if the frame rate is 10 IPS, then set the GOP to 20). -
Page 44: Audio
Audio Audio Input Grain – sets the amplification that the camera applies to the incoming audio before transmitting. Audio Output Delay – Sets a delay in the audio transmission. This is used when there is significant lag in video transmission to help sync the audio and video. Volume –... -
Page 45: Logout
The Logout tab allows you to switch between users. Click Logout. If prompted to close the browser window, click Yes. Using the Network Camera Manager Software, select the camera you wish to view in the Viewer Software. Click Browse. Login as the appropriate user. 32953AA... -
Page 46: Specifications
Model OE-C7022-APW OE-C7022-FPW Indoor / Outdoor Outdoor Sony1/2.8” CMOS Image Sensor IP Rating IP66 (Outdoor) IR LED Wide Dynamic Range True WDR Minimum Illumination Color: 4.0 Lux @ F1.6 Color : 4.6 Lux @ F3.5, 50 IRE @ 50 IRE B/W: 0.8 Lux @ F1.6... - Page 47 Model OE-C7022-APW OE-C7022-FPW Weight 0.97 lbs (439 g) 1.1 lbs (499 g) H x W (3.25” x 4.9”) H x W (2.9” x 4.9”) Dimensions Housing / Dome Cover White / Clear 32953AA...
- Page 48 All rights reserved. No part of this publication may be reproduced by any means without written permission from OpenEye. The information in this publication is believed to be accurate in all respects. However, OpenEye cannot assume responsibility for any consequences resulting from the use thereof.
