OpenEye OE-C7624-AWR REVB Quick Start Manual

CAMERA CONNECTIONS
1
DONGLE CONNECTIONS
1
2
3
4
5
Liberty Lake, WA, USA
509.232.5261
openeye.net
To restore the camera to fac- To restore the camera to fac-
tory defaults: tory defaults:
1. Disconnect power for 30 1. Disconnect power for 30
seconds. seconds.
1 1 Reset Button Reset Button
2. Reconnect power and wait 2. Reconnect power and wait
30 seconds. 30 seconds.
3. Press the reset button with a 3. Press the reset button with a
proper tool for 20 seconds. proper tool for 20 seconds.
1 1 RJ-45 RJ-45 For network and PoE connections For network and PoE connections
12vDC / 12vDC /
1 1
24vAC 1 24vAC 1
Power (12vDC / Power (12vDC /
2 2 Power connection Power connection
24vAC) 24vAC)
GND / GND /
2 2
24vAC 2 24vAC 2
Pink Pink Line Out Line Out
Two-way audio Two-way audio
3 3 Audio I/O Audio I/O
transmition transmition
Green Green Line In Line In
4 4 BNC BNC For analog video input For analog video input
1 1 Alarm In - Alarm In -
2 2 Alarm In + Alarm In +
Alarm I/O (4-Pin Alarm I/O (4-Pin
5 5
Terminal Block) Terminal Block)
3 3 Alarm Out - Alarm Out -
4 4 Alarm Out + Alarm Out +
Copyright ©2020 OpenEye.
All Rights Reserved. Information contained in this document is
subject to change without prior notice. OpenEye does its best to
provide accurate information but cannot be held responsible for
typos or mistakes.
QUICK START GUIDE

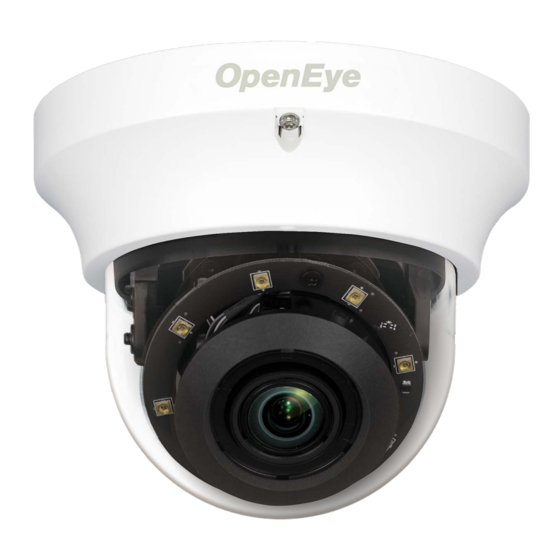

OE-C7624-AWR REVB | 4MP IP Dome
Camera
This quick start guide provides only basic information on the camera's settings
and operation for initial installation. Please read the user manual for optimal
camera confi gurations.
34828AH openeye.net
