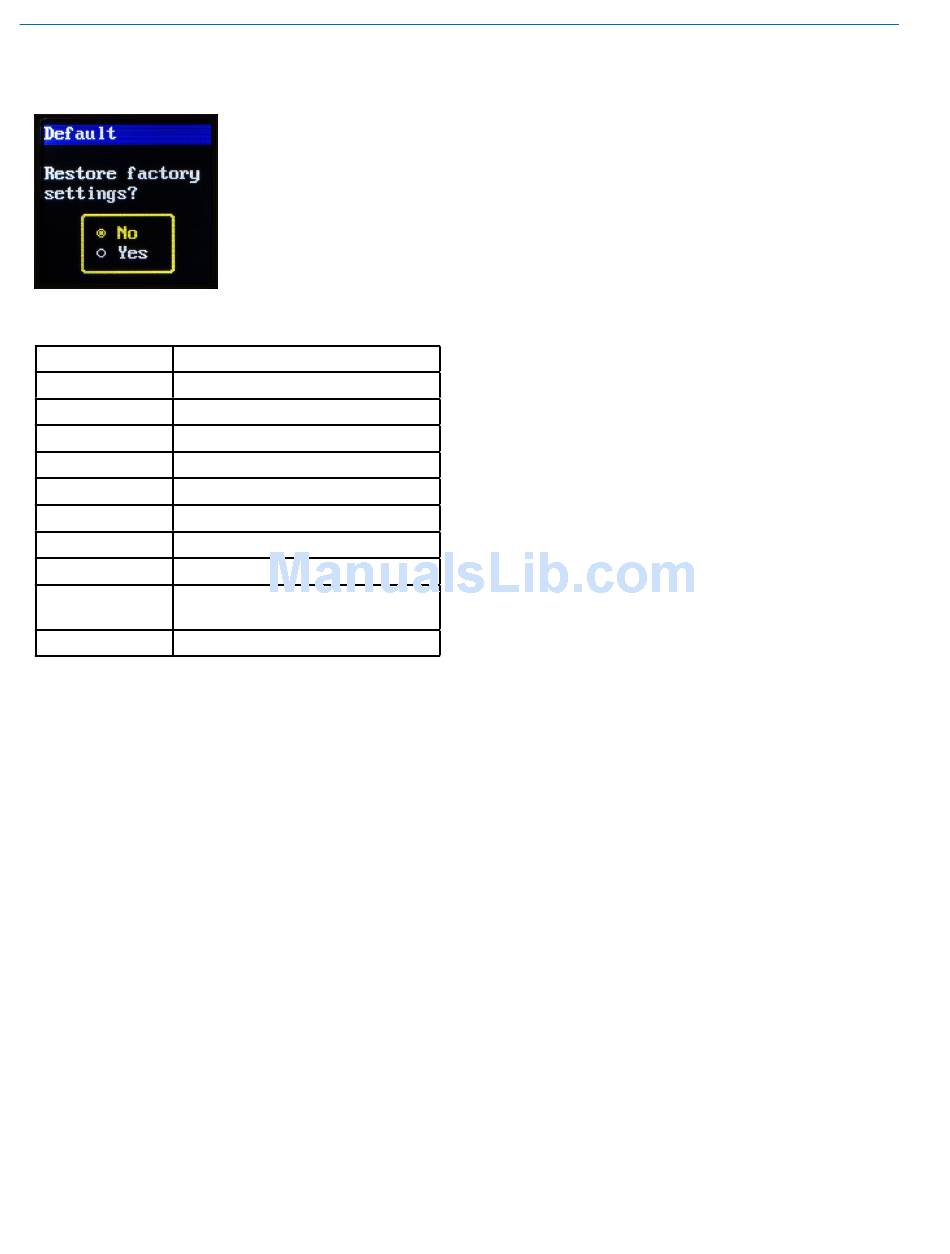

M2R
Default
Menu Item Setting
Flexlist Cleared
Vol/Bal Centered
Mixer Mode Stereo
Limiter Pregain 0
HF Boost 0
Meter Mode Post-Mix
Backlight Always On
Battery Type Lithium
Settings Unlock
Receiver M2R IEM Receiver
Name
Frequency 512.00
12
Returns all settings to the
factory defaults as shown in
the table below.

System Setup Procedures

Summary of Steps
1) Install receiver batteries.
2) Power unit on with On/Off and Volume knob.
3) Scan for an available frequency.
4) Sync the receiver with a transmitter.
5) Enable RF in transmitter.
6) Send audio.
1 and 2) Install Receiver Batteries and Power On
Install the batteries according to the diagram marked
on the back of the housing, power on the M2R and
select the battery type in the menu. Check the BATT
LED on the control panel to verify adequate power is
present - the LED should glow green.
3) Scan For An Available Frequency
Navigate to Scan in the LCD menu. The first scan
should be allowed to run completely. Once a full cycle
has been completed, press MENU/SELECT again to
pause the scan. Use the UP and DOWN arrows to
roughly tune the receiver by moving the cursor to an
open spot. Press MENU/SELECT to zoom in for fine
tuning. When an open frequency has been selected,
press the BACK button for the option to keep your
newly selected frequency or to revert to where it was
set before the scan (refer to page 9 for details).
4) Sync With A Transmitter
Use transmitter "get settings" menu to transfer frequen-
cy or other information.
5) Enable RF in Transmitter
From the transmitter menu, enable RF and select
appropriate RF power level. The blue "link" LED on the
top of the receiver should light up, indicating an
RF link.
6) Send Audio
Send an audio signal to the transmitter and the receiv-
er audio meters should respond. Plug in headphones
or earphones. (Be sure to start with the receiver vol-
ume knob at minimum!)
