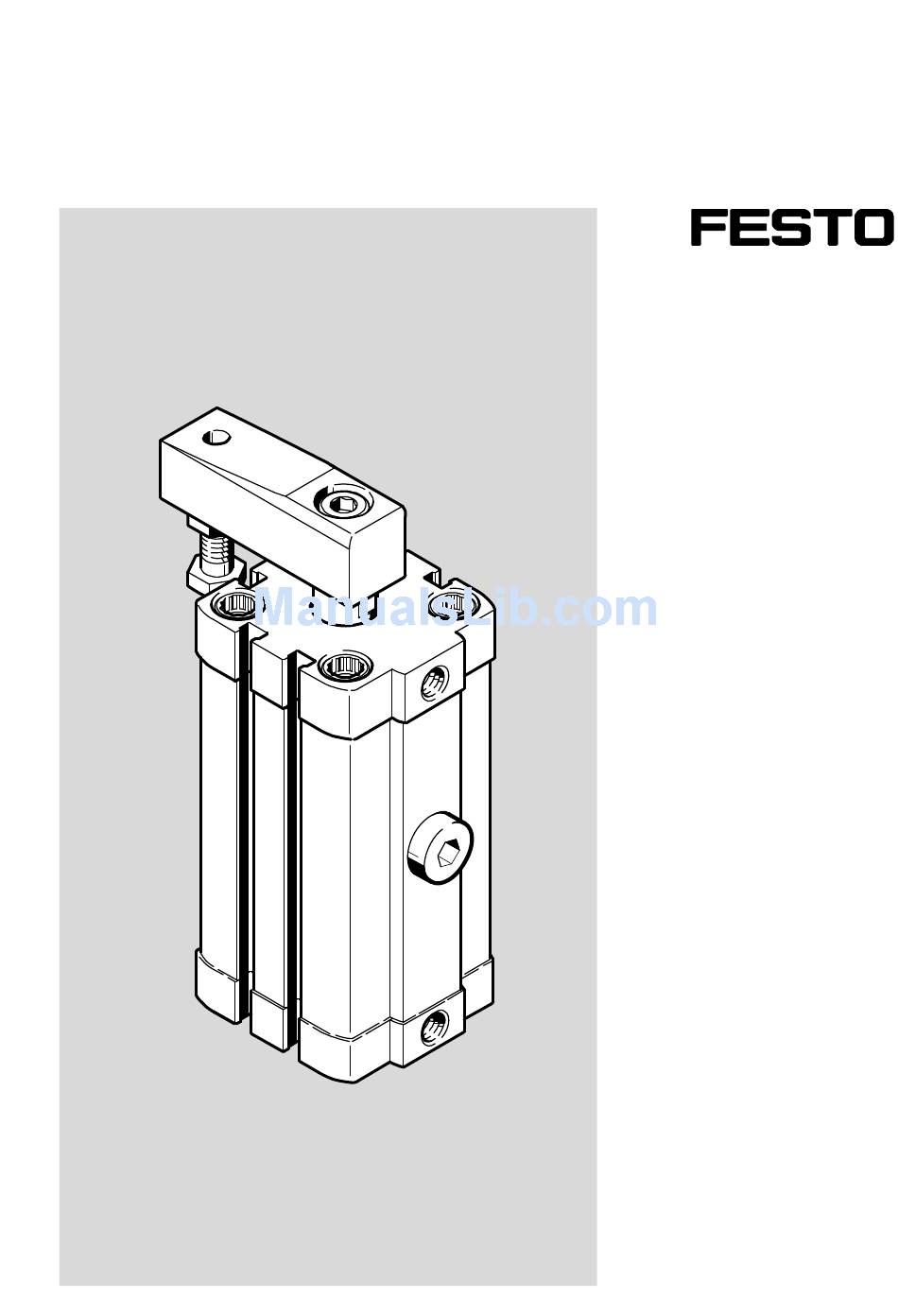

- Page 1 linear/swivel clamp Operating instructions 8072624 2017-05e [8072626]...
- Page 2 Text designations: • Activities that may be carried out in any order 1. Activities that should be carried out in the order stated – General lists è Result of an action/References to more detailed information Festo – CLR – 2017-05e...
- Page 3 Linear swivel clamp type CLR-... Operating elements and connections For all available product documentation è www.festo.com/pk Compressed air connection for clamping Clamping finger set with clamping screw (not included in delivery) Guide bolt for motion control of the Spanner flat on the piston rod...
- Page 4 Bild 4 grooves on the cylinder profile. Application The CLR-... has been designed for friction-locked clamping and holding of construction parts. Please note Torques which affect the internal guide sleeve will damage the CLR-...
- Page 5 (e.g. pressures, forces, torques, temperatures, masses, speeds, clamping cycles). Only if the loading limits are observed can the CLR-... be operated in accordance with the relevant safety guidelines. Observe the specifications applicable to your location, as well as all local and national laws and regulations.
- Page 6 If switching from lubricated to non-lubricated compressed air: Observe the wear of the CLR-... If the service life lubrication is washed out, the CLR-... will wear considerably. Gradually pressurise the entire system until the operating pressure is reached. This ensures that all actuator movement is controlled.
- Page 7 Fitting the clamping finger Please note Torques which affect the internal guide sleeve will damage the CLR-... S Fit the clamping finger first, before fitting the clamping cylinder into the system. In this way you will prevent torques rom affecting the internal guide sleeve.
- Page 8 Bild 9 CLR-... Thread Width across flats (A/F) – clamping finger screw – piston rod Tightening torque of clam ping finger screw [Nm] Maximum permitted torque on the guide sleeve [Nm] Bild 10 Festo – CLR – 2017-05e English...
- Page 9 In order to modify the swivel movement: 1. Unscrew and remove completely the guide bolt from the cylinder housing of the CLR-... The piston rod can then be turned freely with the clamping finger. 2. Swivel the clamping finger to the desired groove in the guide sleeve.
- Page 10 Fitting the CLR-... Place the CLR-... so that no objects project into the swivel range of the clamping finger. Select one of the fastening possibilities listed in the following table. Double screw connector with foot With four screws in the threaded fastening type HNA-...
- Page 11 A higher mass moment of inertia than that specified for the clamping finger set from Festo requires a reduction in the stroke time of the CLR-... by the use of one-way flow control valves. The dimensions of the cone and the diagrams for determining the stroke time as a factor of the mass moment of inertia can be found in the Festo cata...
- Page 12 (e.g. by providing a protective screen). Please note Transverse loadings during the swivel movement can damage the bearings. S Make sure that the clamping finger clamps only level and resting parts in its end position. Festo – CLR – 2017-05e English...
- Page 13 (a spanner sliding from the spanner flat 6 ). spanner flat can, under circumstances, damage the internal guide contour of the guide sleeve). Adjustments may only be undertaken when the device is at a stand. Festo – CLR – 2017-05e English...
- Page 14 Start a test run as follows: – at first with slow positioning movements – then under conditions of use. During the test run check that the CLR-... clamps reliably. If the test run is without faults: End the test run.
- Page 15 S Make sure that nobody can place his/her hand in the positioning range of the moveable mass (e.g. by means of a protective screen). It must not be possible to touch the CLR-... until the mass has come to a complete stand. Make sure that the swivel frequencies in continuous operation do not exceed the specified values (see chapter “Technical specifications”).
- Page 16 Order the wearing parts as specified. Always send the defective product to Festo. Make sure that the CLR-... is overhauled only by our repair service. The repair process calls for delicate setting work. Please describe the fault and the operating conditions in your correspondence.
- Page 17 / non-permitted unmodified clamping screw parts used Excessive speed Restrict swivel motion more CLR-... cannot hold the Insufficient operating Increase operating pressure part to be clamped pressure to maximum permitted value Bild 24 Festo – CLR – 2017-05e English...
- Page 18 NBR, TPR Wiper (with CLR-...-K11-R8): Weight without clamping finger [kg] (approx.) – at 10 mm stroke 0.14 0.16 0.34 0.40 0.69 0.88 – at 20 mm stroke 0.16 0.19 0.39 0.46 0.77 0.99 Bild 25 Festo – CLR – 2017-05e English...
- Page 19 Festo – CLR – 2017-05e English...
- Page 20 Copyright: Festo AG & Co. KG Ruiter Straße 82 73734 Esslingen Germany Phone: +49 711 347-0 Fax: +49 711 347-2144 Reproduction, distribution or sale of this document or communica E-mail: tion of its contents to others without express authorization is service_international@festo.com...
