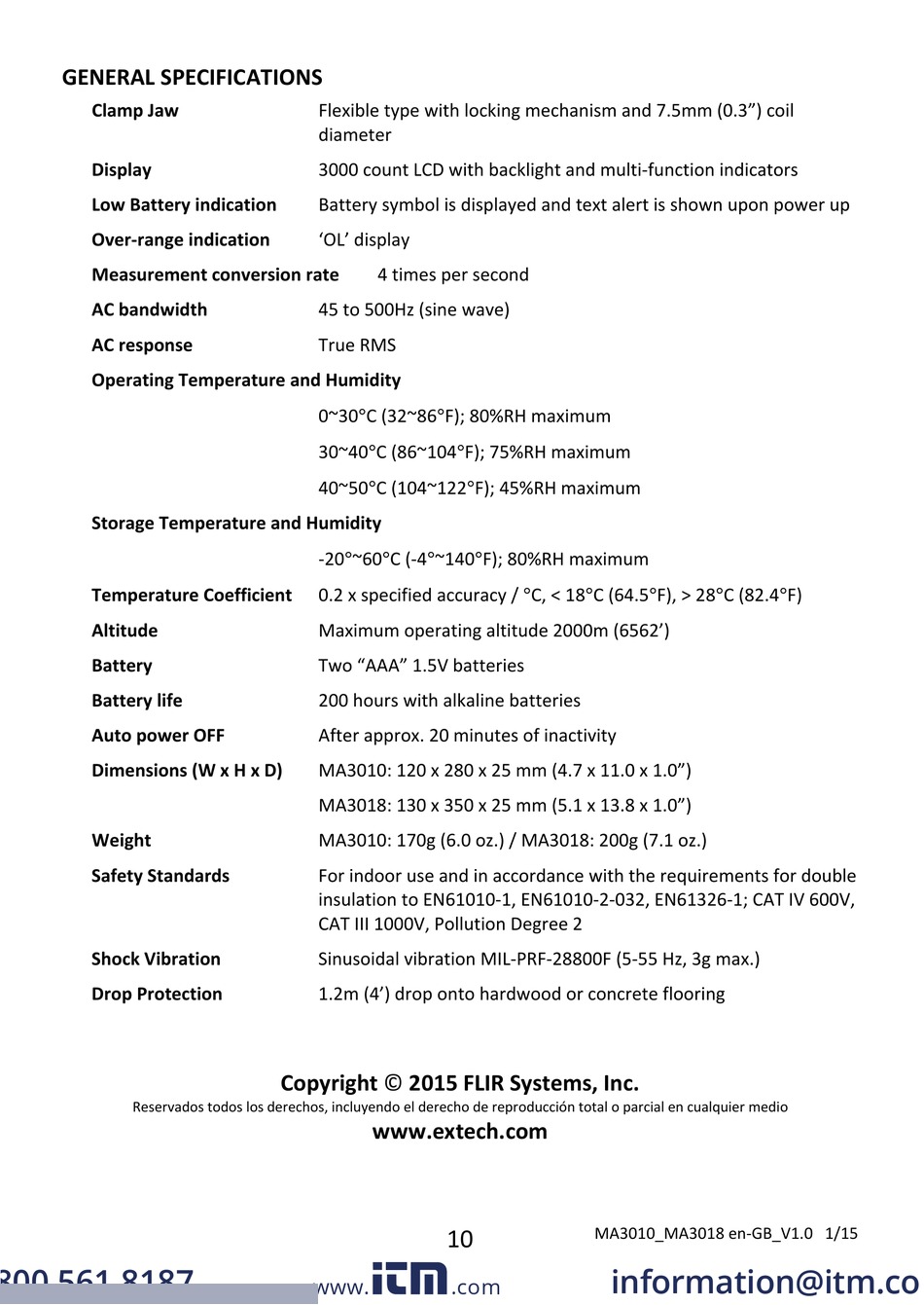

GENERAL SPECIFICATIONS
Clamp Jaw
Display
Low Battery indication
Over‐range indication
Measurement conversion rate
AC bandwidth
AC response
Operating Temperature and Humidity
Storage Temperature and Humidity
Temperature Coefficient
Altitude
Battery
Battery life
Auto power OFF
Dimensions (W x H x D)
Weight
Safety Standards
Shock Vibration
Drop Protection
Reservados todos los derechos, incluyendo el derecho de reproducción total o parcial en cualquier medio
800.561.8187
Flexible type with locking mechanism and 7.5mm (0.3") coil
diameter
3000 count LCD with backlight and multi‐function indicators
Battery symbol is displayed and text alert is shown upon power up
'OL' display
4 times per second
45 to 500Hz (sine wave)
True RMS
0~30C (32~86F); 80%RH maximum
30~40C (86~104F); 75%RH maximum
40~50C (104~122F); 45%RH maximum
‐20~60C (‐4~140F); 80%RH maximum
0.2 x specified accuracy / C, < 18C (64.5F), > 28C (82.4F)
Maximum operating altitude 2000m (6562')
Two "AAA" 1.5V batteries
200 hours with alkaline batteries
After approx. 20 minutes of inactivity
MA3010: 120 x 280 x 25 mm (4.7 x 11.0 x 1.0")
MA3018: 130 x 350 x 25 mm (5.1 x 13.8 x 1.0")
MA3010: 170g (6.0 oz.) / MA3018: 200g (7.1 oz.)
For indoor use and in accordance with the requirements for double
insulation to EN61010‐1, EN61010‐2‐032, EN61326‐1; CAT IV 600V,
CAT III 1000V, Pollution Degree 2
Sinusoidal vibration MIL‐PRF‐28800F (5‐55 Hz, 3g max.)
1.2m (4') drop onto hardwood or concrete flooring
