Introduction
The EL-2626AC is a wireless siren designed for use with the infinite wireless control panel (firmware versions 2.14
and above). In the event of an alarm the control panel activates the siren and strobe. The siren is sounded until the
end of the siren cutoff programmed at the control panel. After the siren cutoff has expired, the strobe continues to
flash until the system is disarmed.
Upper
Mounting
Hole
Backup
Battery
Pack
Rear
Tamper
Switch
Main
Terminal
Block
Lower
Mounting Hole
Rear Tamper
Terminal Block
Transmission
LED
External
Tamper Jumper
Front Tamper
Terminal Block
Transmitter
Delete
Button
Installation
WARNING: Wear hearing protection when installing the siren.
1. Open the housing. To do so, remove the cover
screw located at the bottom of the housing and lift
the front cover away from the rear housing.
2. Remove the strobe cover. To do so, carefully lift the
bottom of the strobe cover away from the rear housing
and remove it from the strobe cover holding hooks.
Figure 3: Plugging in the On-Board Transmitter

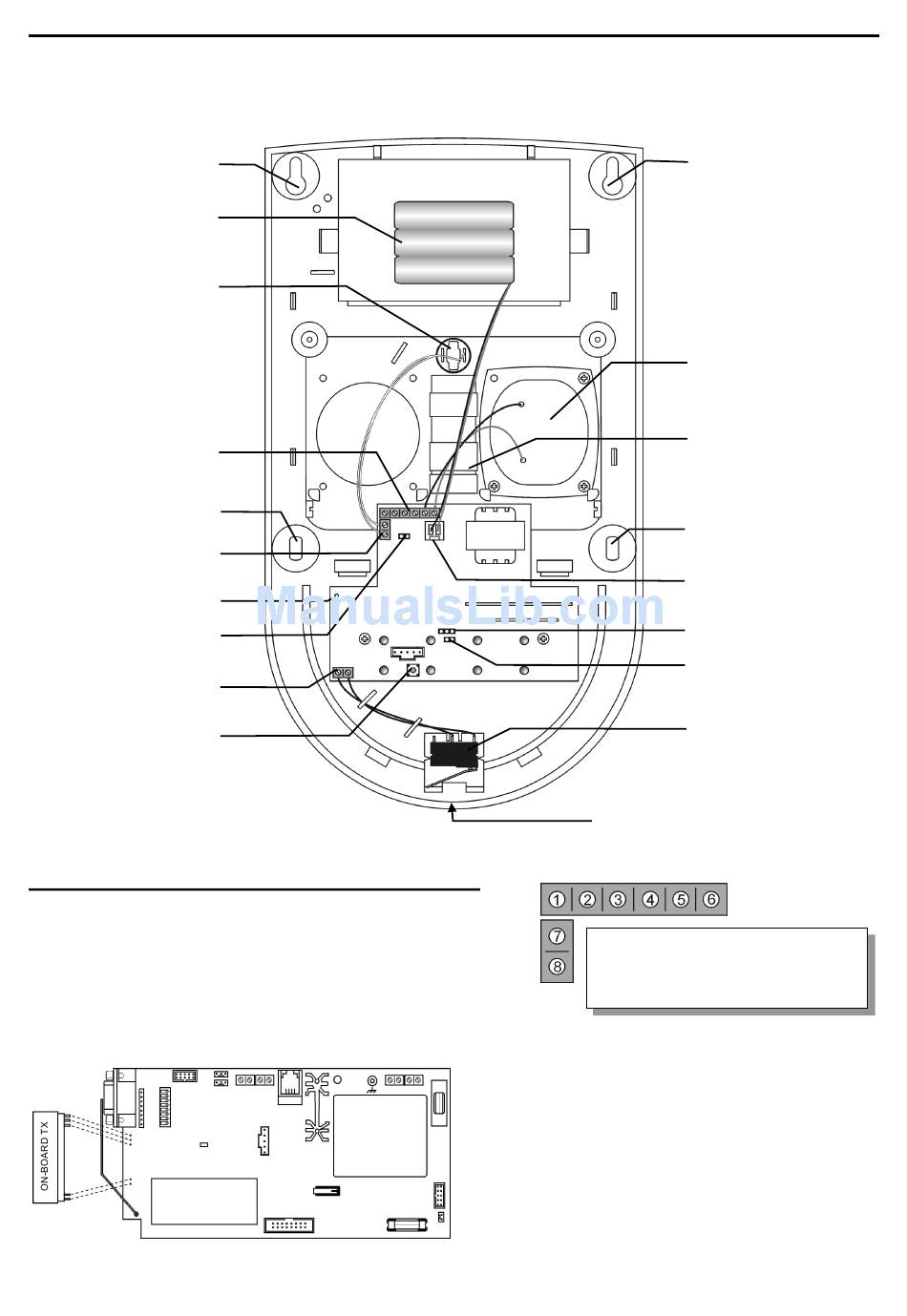

Figure 1: EL-2626AC (cover off)
3. Using a Phillips screwdriver, remove the two
screws that secure the metal anti-vandal casing
and lift the casing from the back cover of the siren.
4. Connect a 12VDC or 9VAC, 500mA transformer
to terminals 3 and 4 on the siren's terminal
block (polarity is not important) – see Figure 2.
5. To support the EL-2626AC, the infinite's Main
board must have the on-board transmitter
installed. Plug the on-board transmitter into the
control panel's Main board as shown in Figure 3.
Note: Power down the control panel before
plugging in the on-board transmitter.
Upper
Mounting
Hole
Siren
Cable
Entry Hole
Lower
Mounting Hole
Battery Connector
Mode Jumper
(JP1)
Arming Tones
Jumper (JP2)
Front Cover
Tamper Switch
Location of
Cover Screw
Terminals 1 & 2: External Tamper Input
Terminals 3 & 4: Power Input
Terminals 5 & 6: Siren Output
Terminals 7 & 8: Back Tamper Input
Figure 2: Wiring Connections
