Operating Guide ECL Comfort 210 / 310, application A231 / A331
MENU > Settings > Flow temperature
High T max Y2 (high value of max limitation)
See Appendix "Parameter ID overview"
Set the high value for the max. limitation of the desired flow
temperature.
MENU > Settings > Flow temperature
Low supply T X1(low value of supply temp.)
See Appendix "Parameter ID overview"
Set the low value for the supply temperature in relation to the
desired max. flow temperature. When the supply temperature is
below the set value, the max. limitation of the flow temperature is
the Y1 value. When the supply temperature is above the set value,
the max. limitation of the flow temperature will be higher.
MENU > Settings > Flow temperature
Low T max Y1 (low value of max limitation)
See Appendix "Parameter ID overview"
Set the low value for the max. limitation of the desired flow
temperature.
Set-up procedure when the supply temperature (S2) has to limit
the desired flow temperature to a maximum:
1. Choose 'Heat curve' .
2. Set the desired flow temperature in all 6 coordinates (-30 °C, -15
°C etc.) to the desired values.
Result:
The desired flow temperature will be in relation to the outdoor
temperature but will be limited to a maximum according the
settings in 'High supp. T X2' , 'High T max Y2' , 'Low supply T X1' and
'Low T max Y1' .
56 | © Danfoss | 2017.11
1x301
1x302
1x303

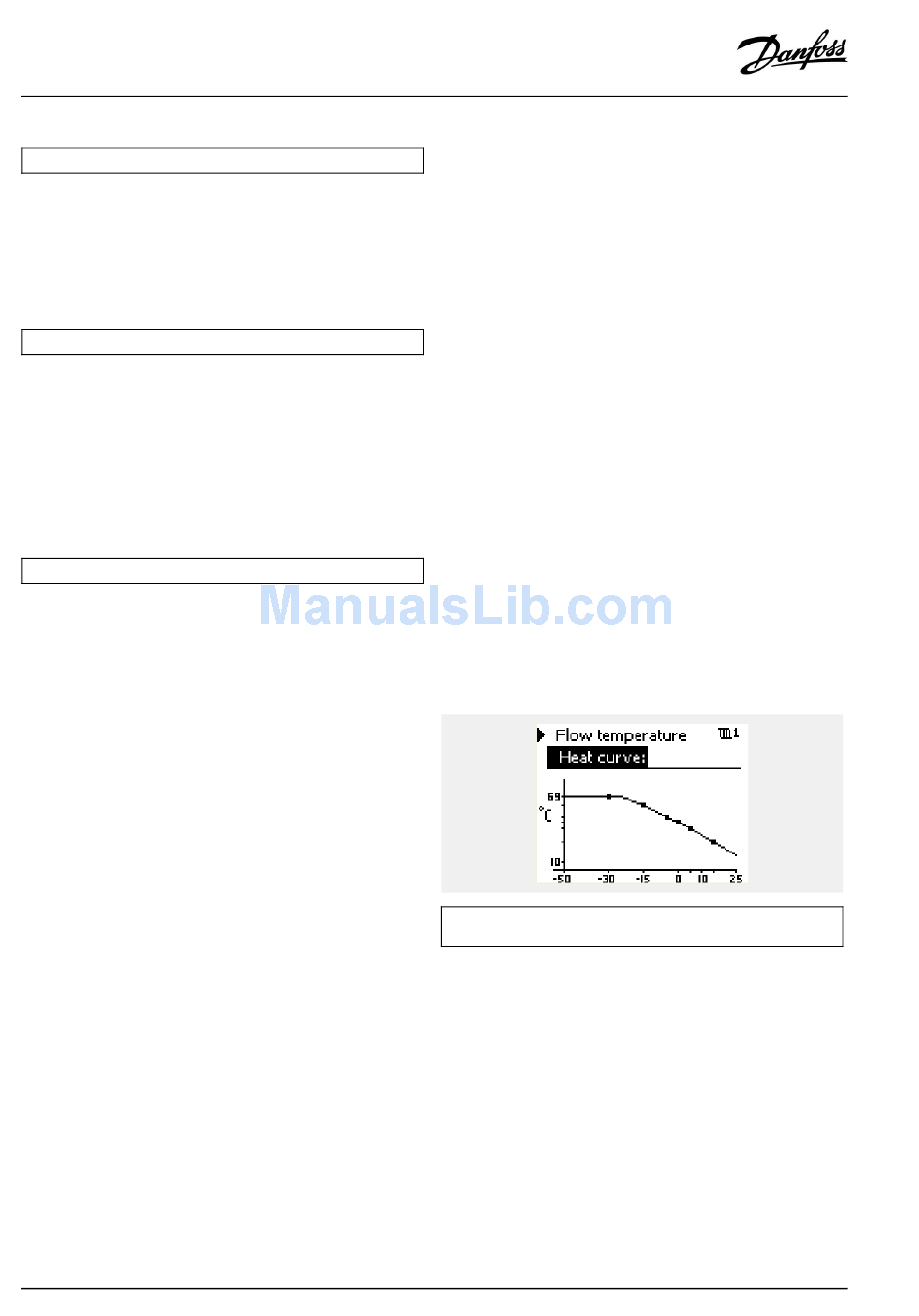

The example shows the max. limitation of the desired flow
temperature when the supply temperature (S2) is 105 °C.
