Operating Guide ECL Comfort 210 / 310, application A231 / A331
2.5.3 Electrical connections, Pt 1000 temperature sensors and signals
A231.1 / A231.2:
Sensor Description
S1 Outdoor temperature
sensor*
S2
Supply flow temperature
sensor**
S3 Flow temperature sensor*** ESM-11 / ESMB /
S5 Return temperature sensor
S7
Differential pressure switch
S8 Pressure transmitter
(0–10 V or 4–20 mA)
or pressure switch
* If the outdoor temperature sensor is not connected or the
cable is short-circuited, the controller assumes that the
outdoor temperature is 0 (zero) °C.
** Only for application A231.2.
*** The flow temperature sensor must always be connected
in order to have the desired functionality. If the sensor is
not connected or the cable is short-circuited, the motorized
control valve closes (safety function).

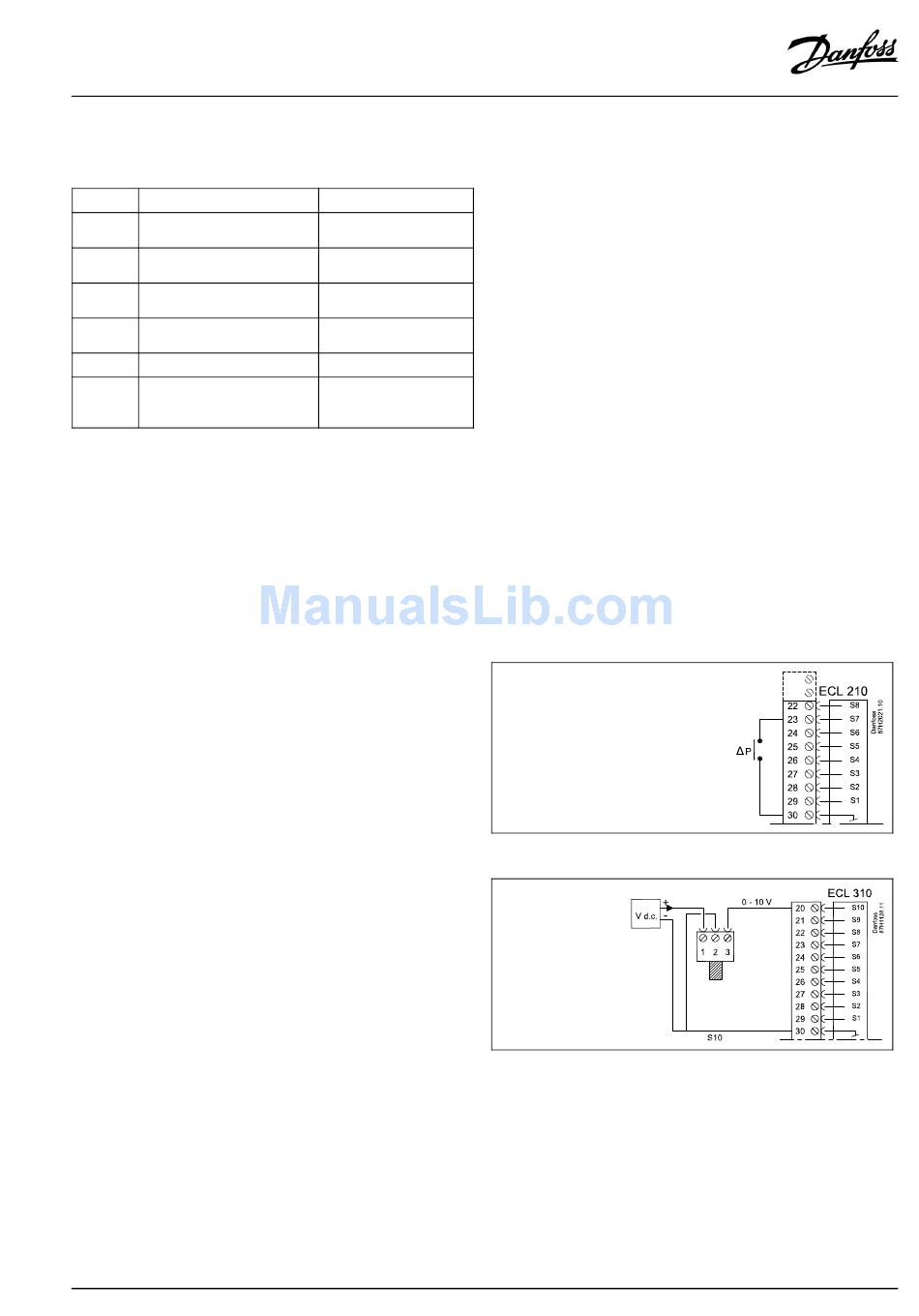

Connection of differential pressure switch
Connection of a pressure transmitter with 0-10 V output
VI.LG.P2.02
Recommended type
ESMT
ESM-11 / ESMB /
ESMC / ESMU
ESMC / ESMU
ESM-11 / ESMB /
ESMC / ESMU
