Network interface

28 Chapter 4: Cabling interfaces and ports

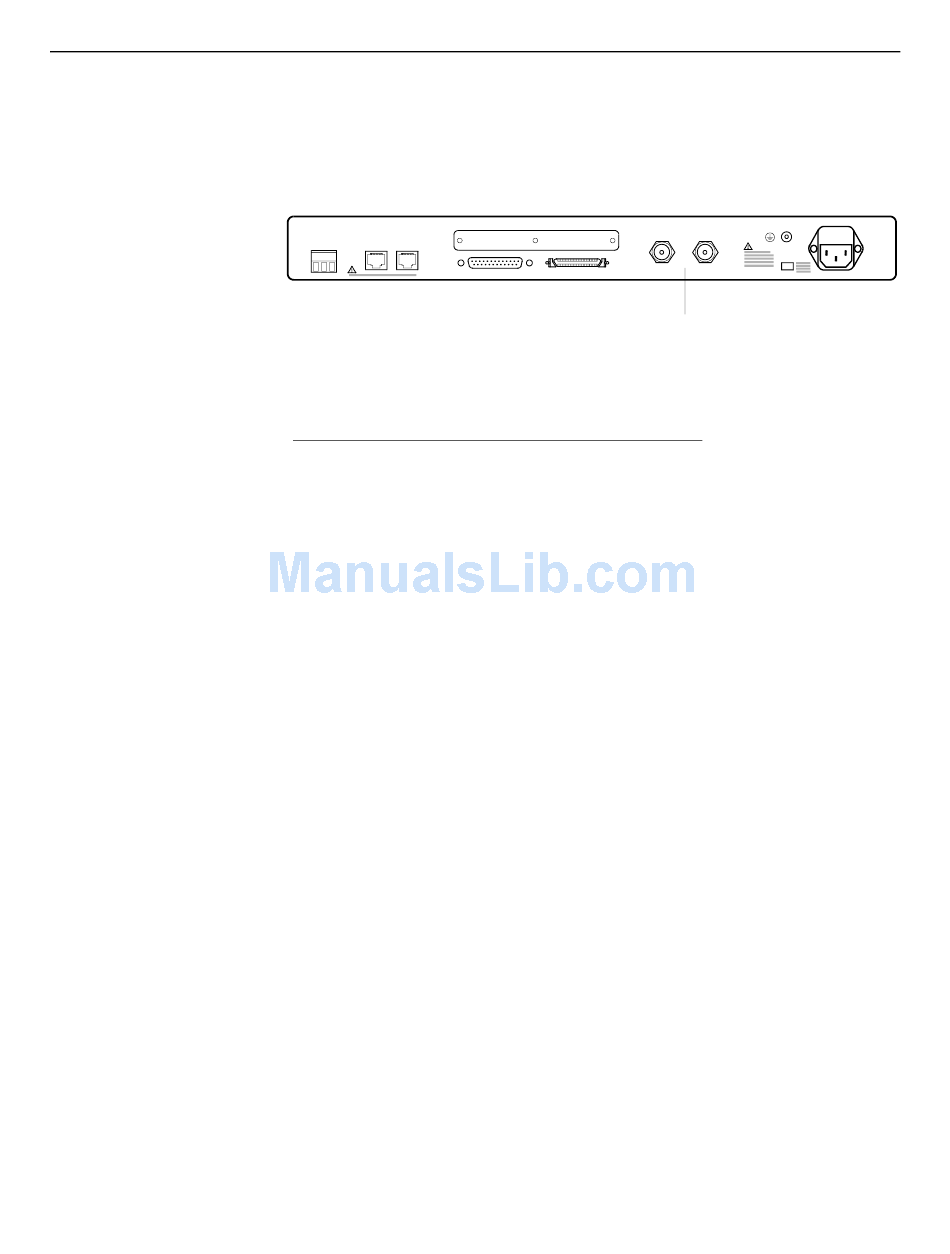

The T3/E3 network interface receives and transmits data over two 75-ohm coaxial cables
with BNC connectors. These cables are shipped with protective caps on the BNC connec-
tors. Leave the caps in place until you are ready to connect the cables.
Cables and adapters
Part number Description of cable
96xx009 BNC male to BNC female
96xx 010 BNC male to BNC male
77994001 BNC male to DIN female adapter
xx is length in feet. Call the factory for available lengths.
Maximum lengths
T3: 450 ft (137 m) maximum from transmitter to cross-connect and 450 ft (137 m) maxi-
mum from cross-connect to receiver.
E3: 274 m (900 ft) maximum.
