Resetting the IDSU terminal parameters

Remove the side
panel

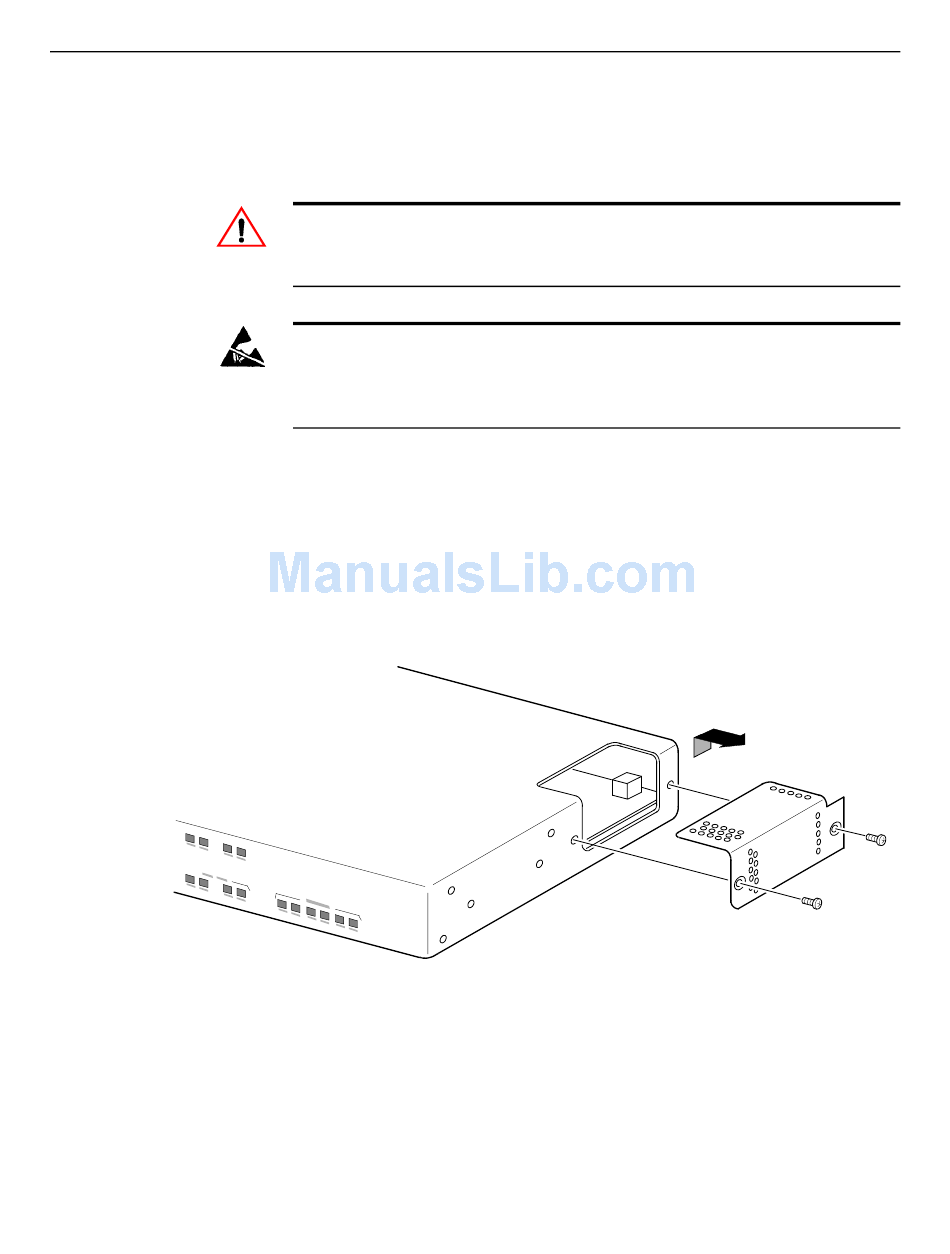

Figure 4—Removing the side panel
16 Chapter 2: Preparing the hardware for installation
You can change the DataSMART T3/E3 IDSU default settings for baud rate, parity, and
data and stop bits by using the DIP switch located on the IDSU circuit board. To access
this board, you need to remove the IDSU side panel as shown in
CAUTION!
Do not remove the IDSU side panel while the unit is receiving power.
CAUTION!
The IDSU circuit board is susceptible to electrostatic discharge (ESD). Take
appropriate precautions when removing the side panel and setting the DIP switch.
To remove the IDSU side panel:
1
Remove the two screws holding the side-panel in place. Use a standard #2
Phillips screwdriver.
2
Lift the panel up slightly, then pull it straight out.
Figure 4.
