Location of controls and indicators

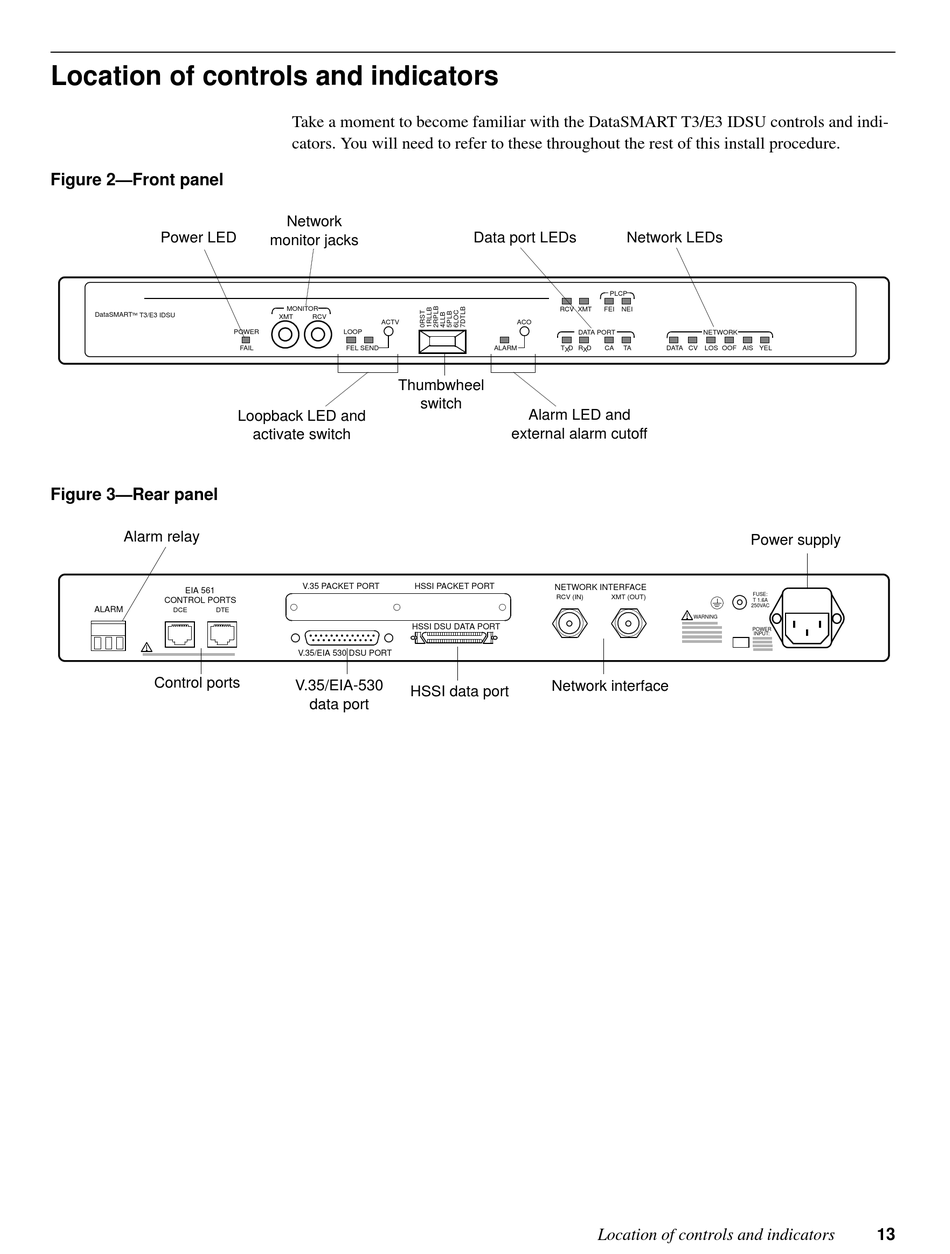

Figure 2—Front panel
Power LED
DataSMART  T3/E3 IDSU
Figure 3—Rear panel
Alarm relay
EIA 561
CONTROL PORTS
ALARM
DCE DTE
Control ports
Take a moment to become familiar with the DataSMART T3/E3 IDSU controls and indi-
cators. You will need to refer to these throughout the rest of this install procedure.
Network
monitor jacks
MONITOR
XMT RCV
ACTV
POWER LOOP
FAIL FEL SEND
Thumbwheel
Loopback LED and
activate switch
V.35 PACKET PORT
HSSI DSU DATA PORT
V.35/EIA 530 DSU PORT
V.35/EIA-530
HSSI data port
data port
Data port LEDs
RCV XMT
ACO
DATA PORT
ALARM T X D R X D
switch
Alarm LED and
external alarm cutoff
HSSI PACKET PORT
NETWORK INTERFACE
RCV (IN)
Network interface
Network LEDs
PLCP
FEI NEI
NETWORK
CA TA DATA CV LOS OOF AIS YEL
Power supply
FUSE:
XMT (OUT)
T 1.6A
250VAC
WARNING
POWER
INPUT:
Location of controls and indicators 13
