Reset The Dip Switches; Replace The Side; Panel - Kentrox DataSMART T3/E3 IDSU Installation Manual

Reset the DIP
switches

Replace the side

panel

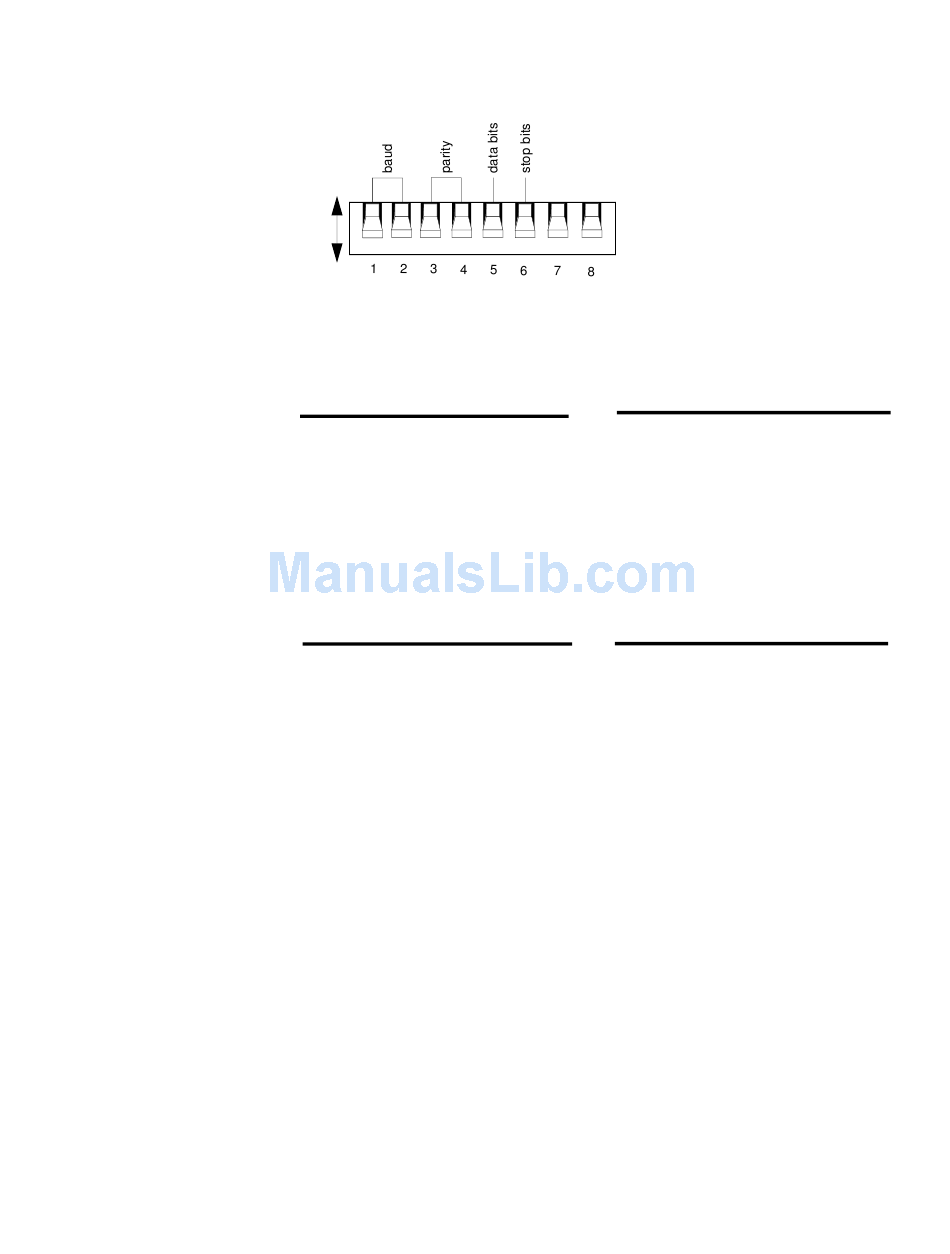

When the internal DIP switch is exposed, set them to the required values.
up
down
Baud setting SW1
9600 (default) down down
4800 down up
2400 up
1200 up
Data bits
8 data bits per character
(default)
7 data bits per character
Once you have set the DIP switches, replace the side panel using the two
Phillips-head screws.
Parity setting
SW2
none (default)
none
odd
down
even
up
SW5 Stop bits
down 1 stop bits per character
(default)
up 2 stop bits per character
Resetting the IDSU terminal parameters
SW3 SW4
down down
down up
up down
up up
SW6
down
up
