Pre-requisites
A workstation with terminal emulation software installed, such as
■
Microsoft Hyperterminal. This software allows you to communicate
with the Switch via the console port directly, or through a modem.
Documentation supplied with the terminal emulation software.
■
A suitable cable:
■
A standard null modem cable — if you are connecting directly to
■
the console port, or
A standard modem cable — if you are connecting to the console
■
port using a modem.
You can find pin-out diagrams for both cables in Appendix B on page 73.
You need to have the following so that you can manually set up the
■
Switch with IP information:
IP address
■
subnet mask
■
default gateway
■
management VLAN ID, normally set to the default value (1)
■

Connecting the Workstation to the Switch

1 Connect the workstation to the console port using a standard null
modem cable as shown in Figure 12.

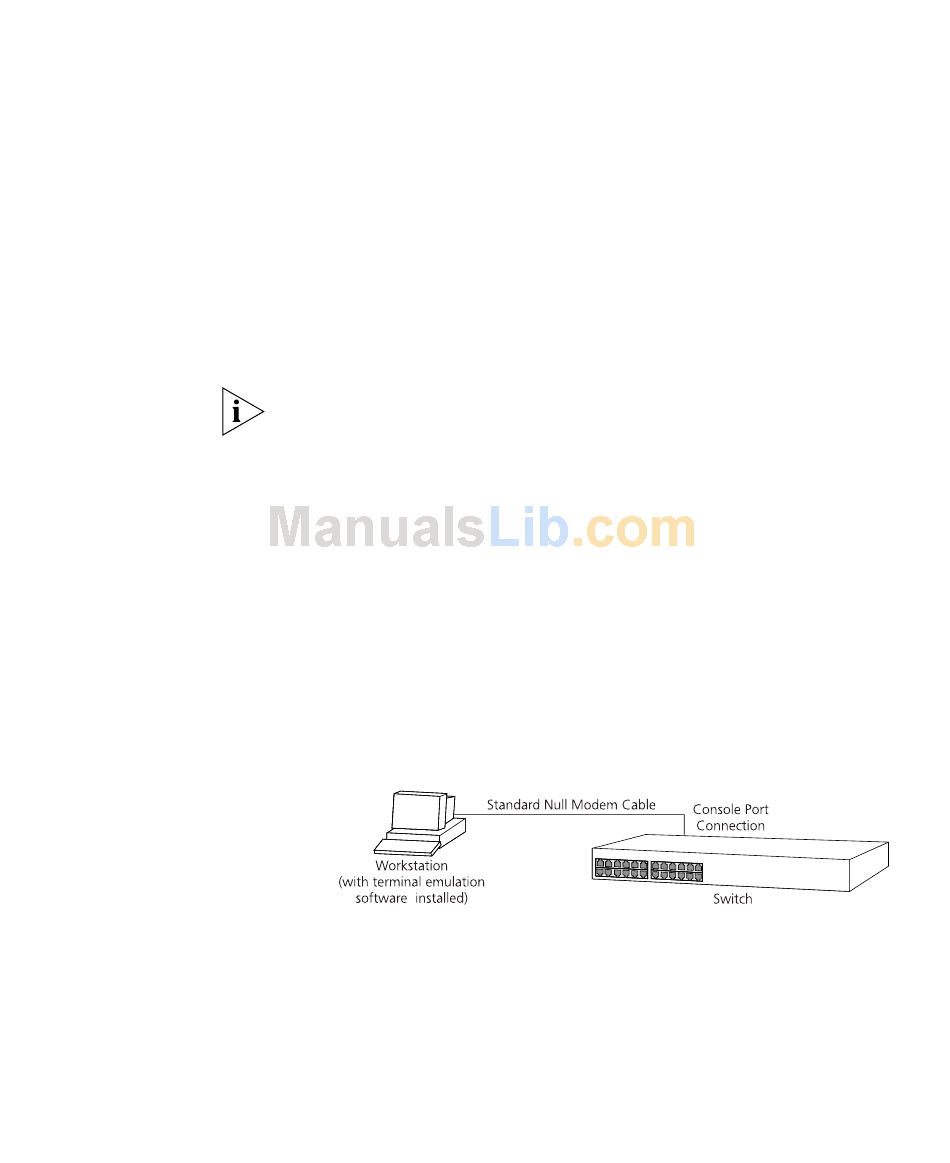

Figure 12 Connecting a workstation to the Switch via the console port
To connect the cable:
a Attach the female connector on the cable to the male connector on
the console port of the Switch.
b Tighten the retaining screws on the cable to prevent it from being
loosened.
c Connect the other end of the cable to one of the serial ports (also
known as a COM port) on your workstation.
Manually Configuring IP Information 43
