Clack Valve WS1 CD Matrix Operation And Instruction Manual page 38

Drawing No.
*Order number V3003 includes V3118-01 WS1 Turbine ASY and V3105 O-ring 215.
THIS WATER METER SHOULD NOT BE USED AS THE PRIMARY MONITORING DEVICE FOR CRITICAL HEALTH
EFFECT APPLICATIONS.
Page 38

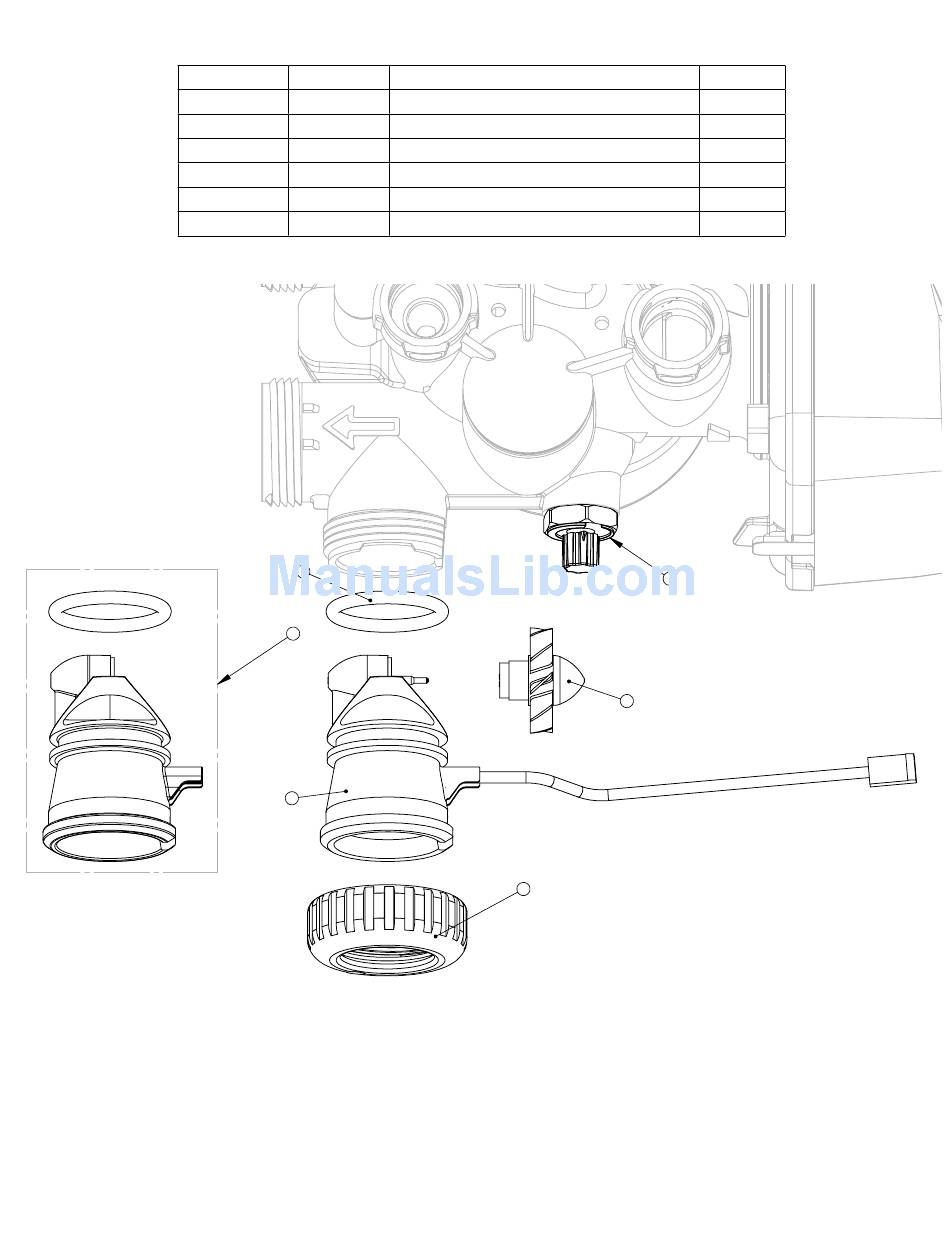

Water Meter, Meter Plug and Mixing Valve
Order No.
1 V3151 WS1 Nut 1" QC
2 V3003* WS1 Meter ASY
3 V3118-01 WS1 Turbine ASY
4 V3105 0-ring 215
5 V3003-01 WS1 Meter Plug ASY
6 V3013 Mixing Valve
4
5
2
Description
6
3
1
Quantity
1
1
1
1
1
Optional
